CAI - ANVIL 0310000807 1/2 in. Female Black Malleable Iron 90-Degree Elbow

Product Description

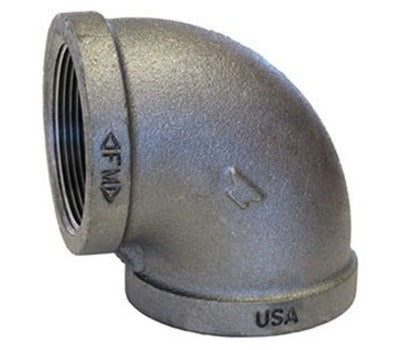

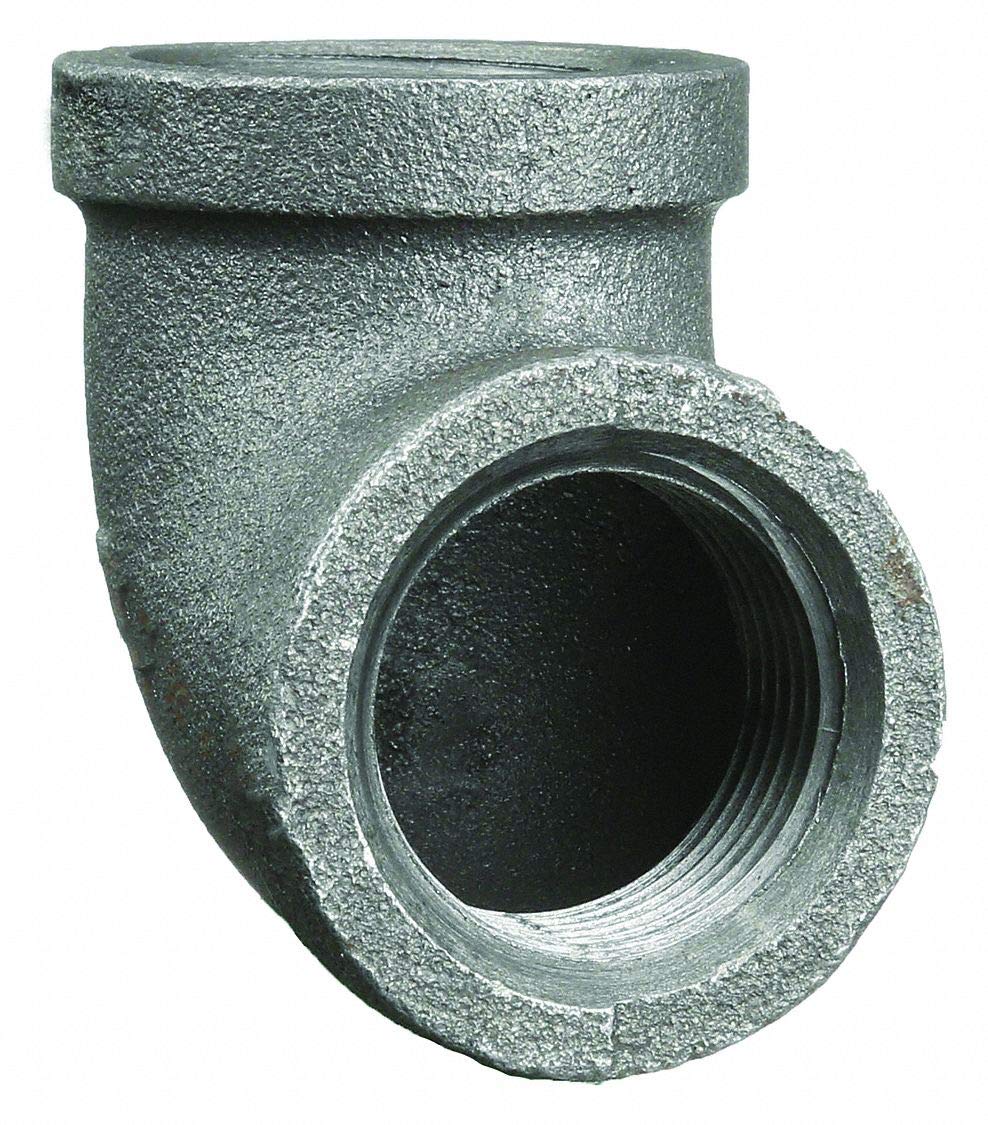

The CAI - ANVIL 0310000807 is a 1/2 inch female black malleable iron 90-degree elbow fitting. This fitting is designed for low-pressure plumbing systems, suitable for applications involving air, water, natural gas, and steam. It is made from durable malleable iron and conforms to industry standards including ASME B16.3.

• Material: Malleable Iron
• Max Pressure: 300 psi at 150 degrees Fahrenheit
• Temperature Range: -20 degrees to 350 degrees Fahrenheit

Product Highlights

This elbow fitting is rated for low-pressure applications and is UL and FM approved for safe usage. It is ideal for connecting pipes at a 90-degree angle, aiding in the efficient routing of plumbing systems. Each fitting undergoes testing to ensure reliable performance.

Product Information

Standard Information

• MPN: 0310000807
• Brand: CAI - ANVIL

Technical Specifications

• Connection Type: FNPT
• Schedule/Class: Class 150
• Standards: ASME B16.3, cULus Listed, NSF/ANSI 61
• Specifications Met: FM Approved, UL Listed
• Max Pressure: 300 psi
• Saturated Steam Pressure: 150 psi at 350 degrees Fahrenheit
• Size: 1/2 inch
• Application: Low-Pressure Plumbing Including Air, Water, Natural Gas, and Steam
