CADWELD SBB200CRH Cable to Web of Rail Mold

Product Description

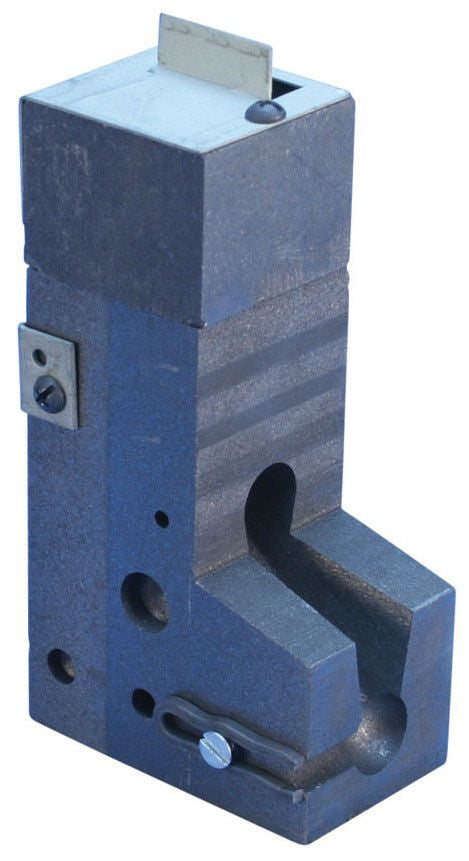

The CADWELD SBB200CRH is a specialized graphite mold used for track circuit installations and jumper bonds on rail tracks. It is suitable for T-Rail sections weighing between eighty-five pounds and one hundred forty-one pounds, accommodating a 3/16 bondstrand conductor with a one tab bond terminal style. This right-hand mold requires additional components such as welding material, conductor sleeve, bond clip, and hammer die.

• Graphite mold ideal for rail applications
• Designed for 3/16 bondstrand conductors
• Compatible with 85 lb to 141 lb T-Rail sections

Product Highlights

This product effectively meets the needs for rail bonding and track circuits, ensuring a reliable connection.

Product Information

Standard Information

• Brand: CADWELD
• MPN: SBB200CRH

Technical Specifications

• Material: Graphite
• Rail Type: 85 lb to 141 lb T-Rail Sections
• Bond Terminal Style: 1 Tab
• Conductor Size: 3/16 Bondstrand
• Conductor Outer Diameter, Nominal: 0.19 inches
• Welder Style: TB5; T21
• Orientation: Right Hand
• Mold Only: Yes
• Welding Material: SB25, Sold Separately
• Conductor Sleeve: SBS12C, Sold Separately
• Bond Clip: S2659, Sold Separately
• Hammer Die: SBD50, Sold Separately
• UPC: 782856200703
• EAN: 0782856200703
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Conductor Outer Diameter, Nominal (mm): 4.76 mm
