Caddy GT1161V One Shot GT #2, #1 SOL Cable to 5/8 inches Ground Rod Traditional Cadweld

Product Description

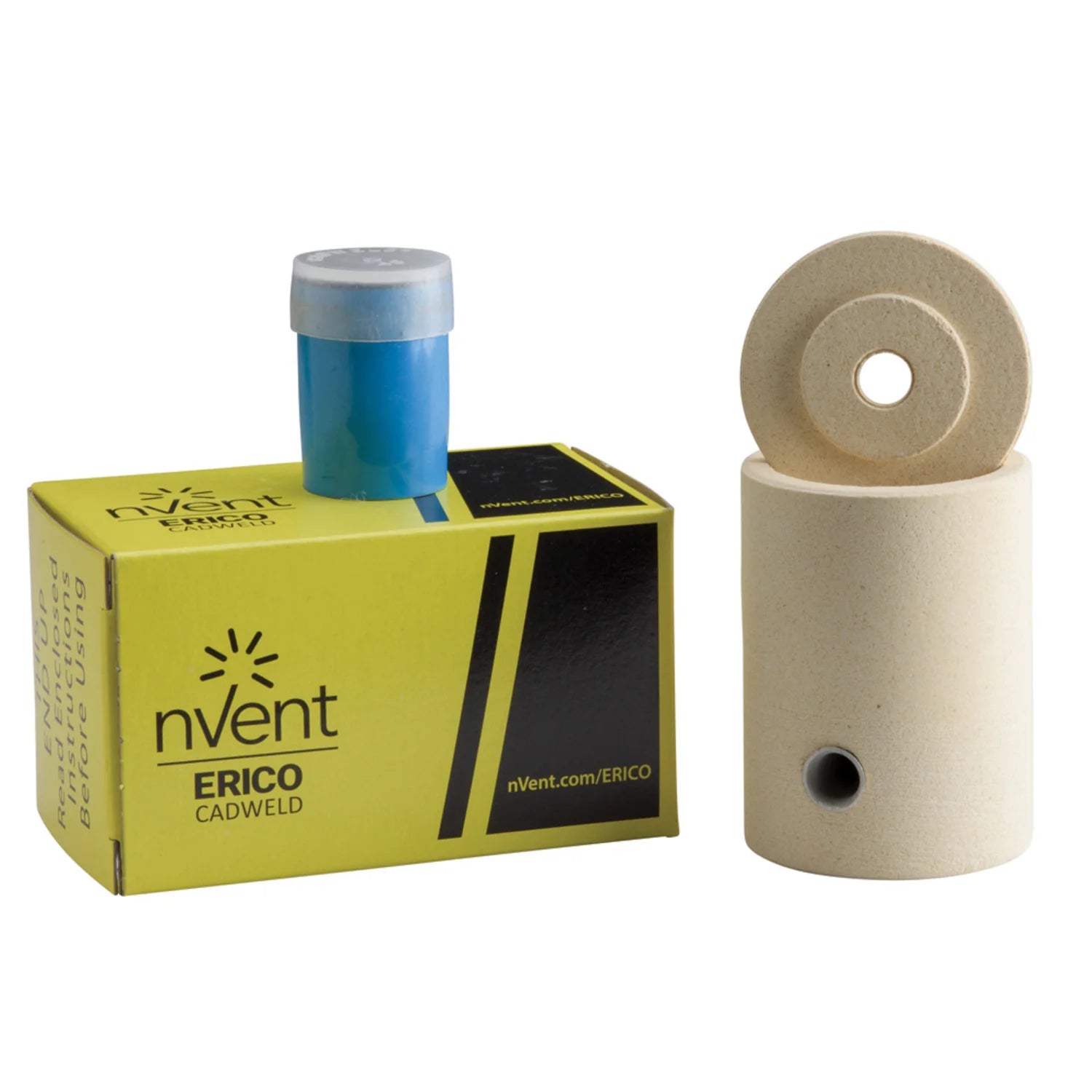

The CADDY GT1161V is a Cadweld One Shot, GT, #2, #1 SOL Cable to 5/8" Ground Rod, Traditional Cadweld. This single-use ceramic mold produces a permanent connection that will not loosen or corrode. It eliminates the need for a graphite mold and handle clamp/frame and fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods.

• Single use ceramic mold which eliminates the need for a graphite mold and handle clamp/frame
• Produces a permanent connection that will not loosen or corrode
• Fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods

Product Highlights

The GT1161V Cadweld one shot creates permanent connections and is NEC compliant.

Product Information

Standard Information

• Brand: CADDY
• Manufacturer Part Number: GT1161V

Technical Specifications

• Welding Material Type: Traditional
• Mold Family: GT
• Ground Rod Diameter, Nominal: 5/8"
• Ground Rod Diameter, Actual (Ø): 0.560" - 0.64"
• Connection, Solid: #2;#1
• Connection, Stranded: #3;#2
• Mold Split: None
• Number of Wear Plate Sets: 0
• Split Crucible: S
• Standard: CULus®
• Brand: nVent Erico
• Sub Brand: ERICO
• Product UPC: 78285600096
• Certifications: cUL CSA C22.2 No. 41 UL ANSI/UL 467 DoC, ERICO Cadweld EN IEC 62561-1:2017
