Caddy GR1181L Cadweld One Shot, Cable to Ground Rod, Traditional, GR (ONE SHOT), 3/4 inches Dia, #4, #3 Connection, Solid

Product Description

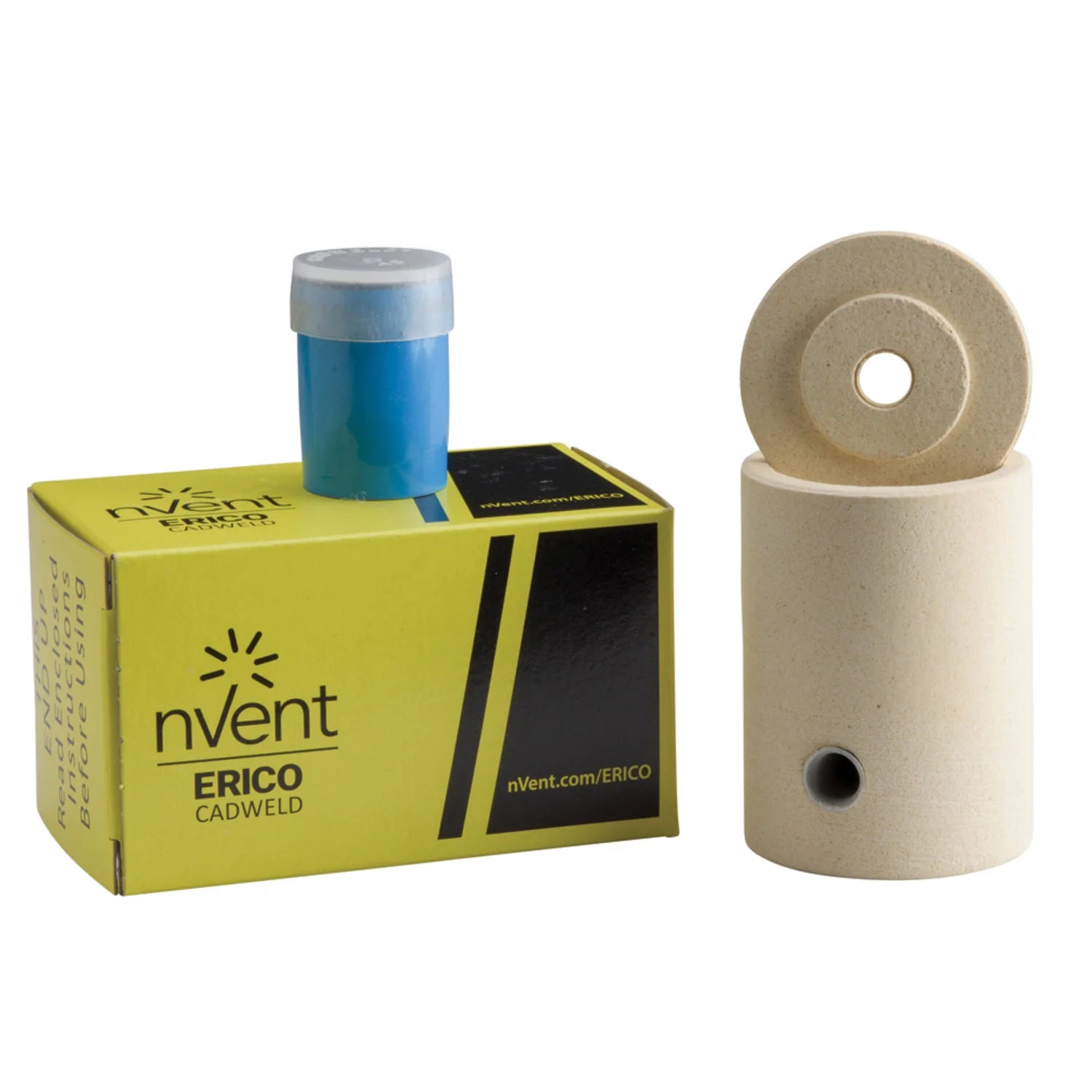

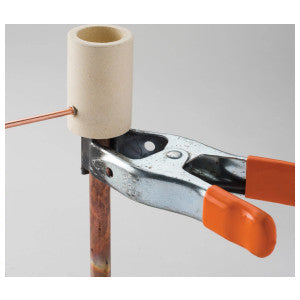

The CADDY GR1181L Cadweld One Shot is a single-use ceramic mold designed for creating cable to ground rod exothermically welded connections. It eliminates the need for a graphite mold and handle clamp/frame, producing a permanent connection that will not loosen or corrode. It fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods and is NEC compliant.

• Single use ceramic mold which eliminates the need for a graphite mold and handle clamp/frame
• Produces a permanent connection that will not loosen or corrode
• Fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods

Product Highlights

The Cadweld One Shot creates permanent, corrosion-resistant connections for grounding applications, suitable for various ground rod types and compliant with NEC standards.

Product Information

Standard Information

• Brand: CADDY
• Manufacturer Part Number: GR1181L
• Country of Origin: US

Technical Specifications

• Welding Material Type: Traditional
• Mold Family: GR (ONE SHOT)
• Ground Rod Diameter, Nominal: 3/4"
• Ground Rod Diameter, Actual (Ø): 0.670" - 0.77"
• Connection, Solid: #4;#3
• Connection, Stranded: #6;#4
• Mold Split: None
• Number of Wear Plate Sets: 0
• Brand: nVent CADDY
• Category: GROUND RODS & GROUNDING SYSTEMS
• Spec 1 Attribute: Conductor Size
• Spec 1 Attribute Value: 4 AWG Concentric, 3 AWG Solid
• Spec 2 Attribute: Connection Type
• Spec 2 Attribute Value: Cable to Ground Rod
• Spec 3 Attribute: Material
• Spec 3 Attribute Value: Ceramic
• Spec 4 Attribute: Mold Price Key
• Spec 4 Attribute Value: 1
• Spec 5 Attribute: Rod Size
• Spec 5 Attribute Value: 4-Mar
• Spec 5 Attribute UOM: IN
• Spec 6 Attribute: Specifications
• Spec 6 Attribute Value: Vertical ELL Horizontal Cable
• Spec 7 Attribute: Type
• Spec 7 Attribute Value: 1-Shot Type GR Traditional
• ECCN: EAR99
• UNSPSC: 39121457
• Packaging: 6 Per Pack
• Ground Rod Size: 3/4 in.
