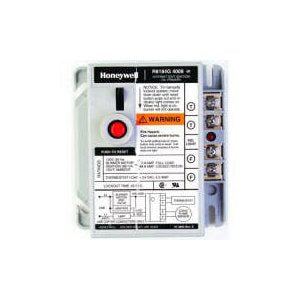

Honeywell R8184G4082 Protectorelay Oil Burner Control 45 Second Lockout Timing

Product Description

The Honeywell R8184G4082 Protectorelay Oil Burner Control is a reliable control solution for intermittent ignition oil burners. It features a 45-second lockout timing mechanism, ensuring safe and efficient operation. This control is equipped with automated non-recycling capabilities, making it suitable for various heating systems.

• 45-second lockout timing
• Non-recycling control
• External reset button

Product Highlights

The Honeywell R8184G4082 provides automatic control of oil burners. It handles oil valves and ignition transformers effectively. The oil burner control is equipped with a solid-state flame sensing circuit and enclosed safety switch with an external reset button. The manual trip lever allows for easy system maintenance.

Product Information

Standard Information

• Brand: Honeywell
• MPN: R8184G4082

Technical Specifications

• Brand Name: Honeywell
• Lockout Time: 45 seconds
• Voltage: 120 VAC
• Ignition Type: Intermittent
• Weight: 8.95 pounds
• Dimensions: Mounts on standard 4 x 4 junction box
• Safety Features: Solid state flame sensing circuit, Enclosed safety switch with external reset button
• Usage: Controls oil burner, oil valve, and ignition transformer
