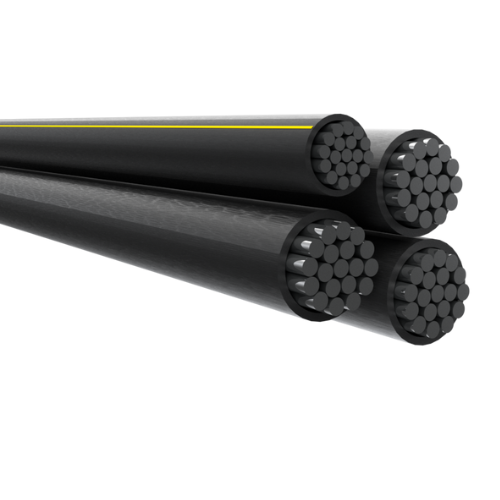

CABLE URD-4/0-4/0-4/0-2/0 Aluminum Quadruplex URD Cable

Product Description

The CABLE URD-4/0-4/0-4/0-2/0 is a specialized underground electrical distribution cable designed for reliable performance in underground systems. This product features alloy 1350 aluminum conductors encased in black cross-linked polyethylene (XLPE) insulation. The cable is formed as a twisted assembly of phase and neutral wires, making it suitable for a variety of applications.

• Rated for 600V and designed for direct burial or duct installation.
• Constructed with Class B compressed stranded aluminum alloy conductors.
• Insulation thinned for enhanced durability and resilience.

Product Highlights

This cable meets rigorous standards for safety and performance in electrical distribution. Its robust design ensures longevity in challenging environments.

Product Information

Standard Information

• Conductor Size: 4/0 AWG Phase
• Neutral Conductor Size: 2/0 AWG

Technical Specifications

• Conductor Strand: 19
• Insulation Thickness: 0.080 inches
• Outside Diameter: 1.560 inches
• Allowable Ampacity Direct Burial: 290 Amps
• Allowable Ampacity In Duct: 225 Amps
• Weight: 1.036 lbs per ft
• Voltage: 600V
