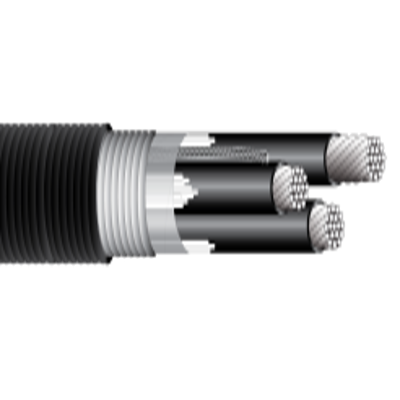

CABLE 2/0-3C-W/GRD-CLX

Product Description

The CABLE 2/0-3C-W/GRD-CLX is a Type MC cable that combines durable features and reliability for various applications. It includes a PVC jacket and interlocked aluminum armor for added strength. This cable is designed for power, control, and lighting circuits, making it suitable for harsh environments requiring conductor protection.

• Approved for use in wet or dry locations at up to 90 degrees Celsius.
• Ideal for indoor and outdoor installations, including aerial, conduit, duct, cable tray, or direct burial.
• Compatible with NEC Class I and II, Division 2, Class III, Division 1 and 2 hazardous locations.

Product Highlights

This cable supports a range of applications while ensuring safety and efficiency.

Product Information

Standard Information

• Brand: CABLE
• MPN: 2/0-3C-W/GRD-CLX

Technical Specifications

• Size: 2/0
• Number of Conductors: 3
• Conductor Strand: 19
• Ground Wire Size: 6 AWG
• Minimum AVG Insulation Thickness: 0.055 inches
• Minimum AVG Jacket Thickness: 0.050 inches
• Armor Diameter: 1.39 inches
• Overall Diameter: 1.50 inches
• Net Weight: 2.110 lbs per ft
• Voltage: 600 Volt
