C&D Valve CD5534/2 braze on self-piercing copper saddle valve 3/4 inches tube (2 per pack)

Product Description

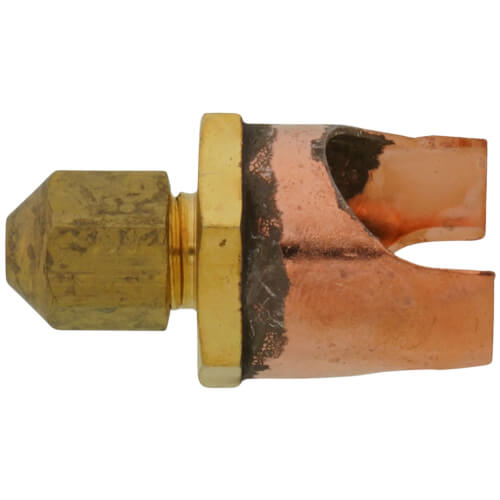

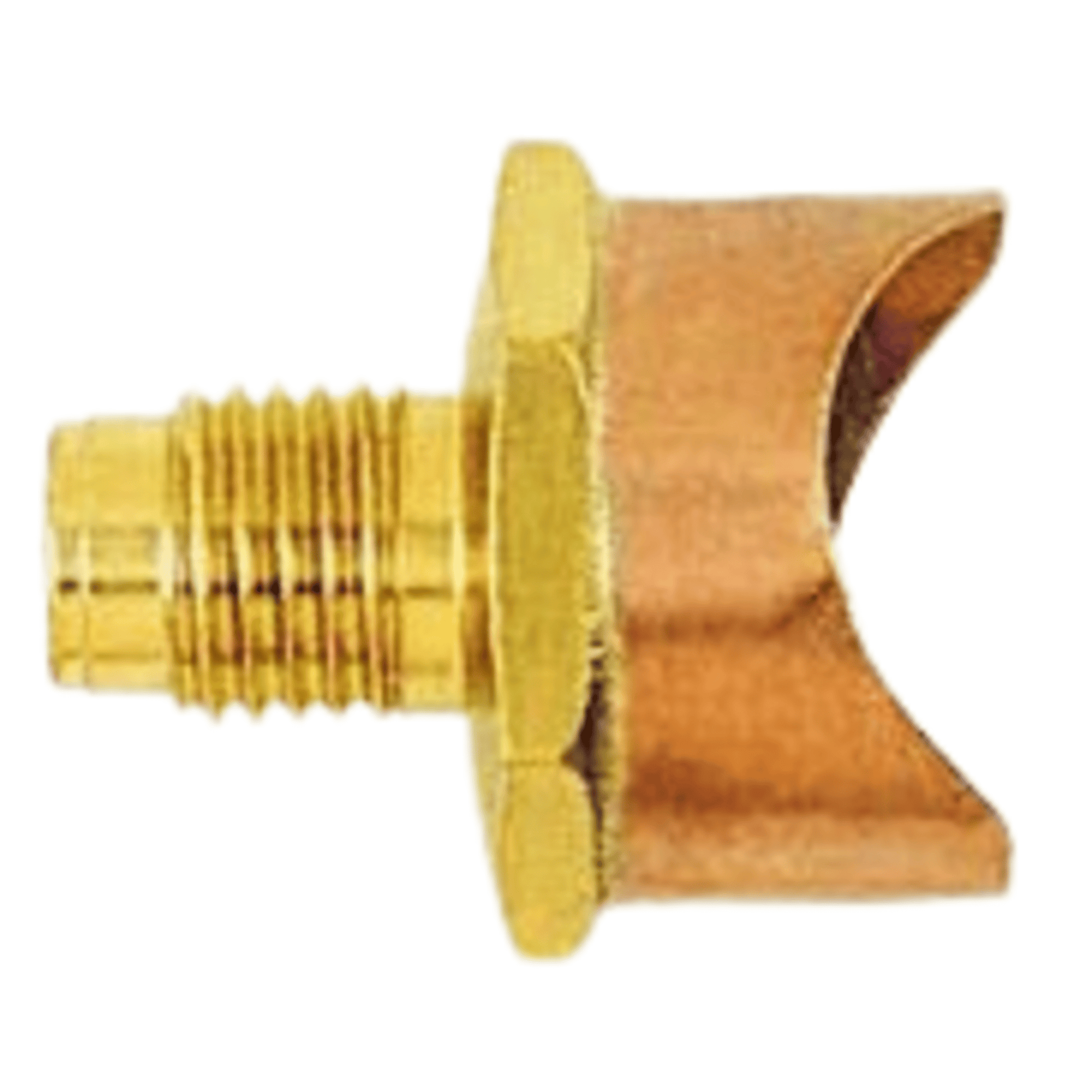

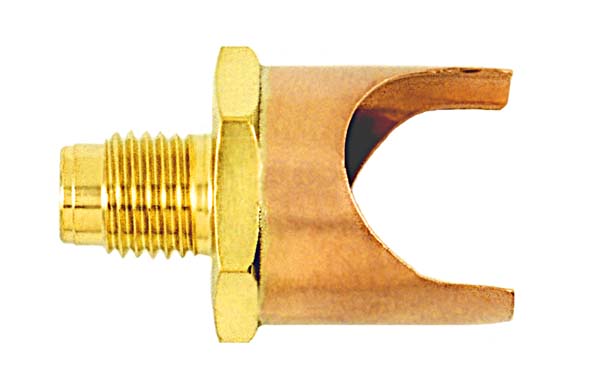

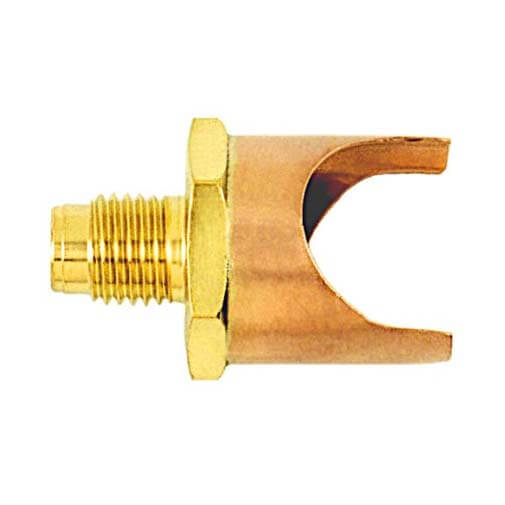

The C&D VALVE CD5534/2 is a braze-on, self-piercing copper saddle valve designed for 3/4" tubes. It is widely used and easily installed on a charged line. After brazing the saddle portion onto the line, the steel pin with valve core penetrates the line and is locked into place by tightening the cap.

• Easy to install on a charged line
• Steel pin with valve core penetrates the line
• Made from high-quality copper for durability and corrosion resistance

Product Highlights

The C&D VALVE CD5534/2 ensures secure and permanent connection to 3/4" copper tubes, providing long-lasting reliability.

Product Information

Standard Information

• Brand: C&D VALVE
• Manufacturer Part Number: CD5534/2
• Country of Origin: USA

Technical Specifications

• Type: Braze-On, Self-Piercing
• Minimum Tube Size: 3/4 Inch
• Maximum Tube Size: 3/4 Inch
• End Connection: Male Threaded
• Body Material: Copper
• Inclusions/Features: Cap, Valve Core, Steel Pin
• ProductID: 54876
• Description: C&D CD5534/2 3/4" OD SWEAT ON SERVICE VALVE (PKG/2)
• Series/Model: M
• Product Type: Saddle Valve
• Material: Copper
• Exterior Finish: Copper
• Number of Ports: 2
• Outlet Connection Size: 0.75 Inches
• Unit Count: 1.0 Count
• Manufacturer: C & D Valve
• Number of Items: 1
• Valve Type: saddle valve
• Material Type: Copper
• Series: M Series
• Nominal Size: 3/4 in
• Suitable For Use With: Charged Lines
• OD: 3/4"
