C&D Valve CD5512/4 1/2 inches Tube, MPT, Copper, Braze-On, Self-Piercing, Saddle Valve (4 per Pack)

Product Description

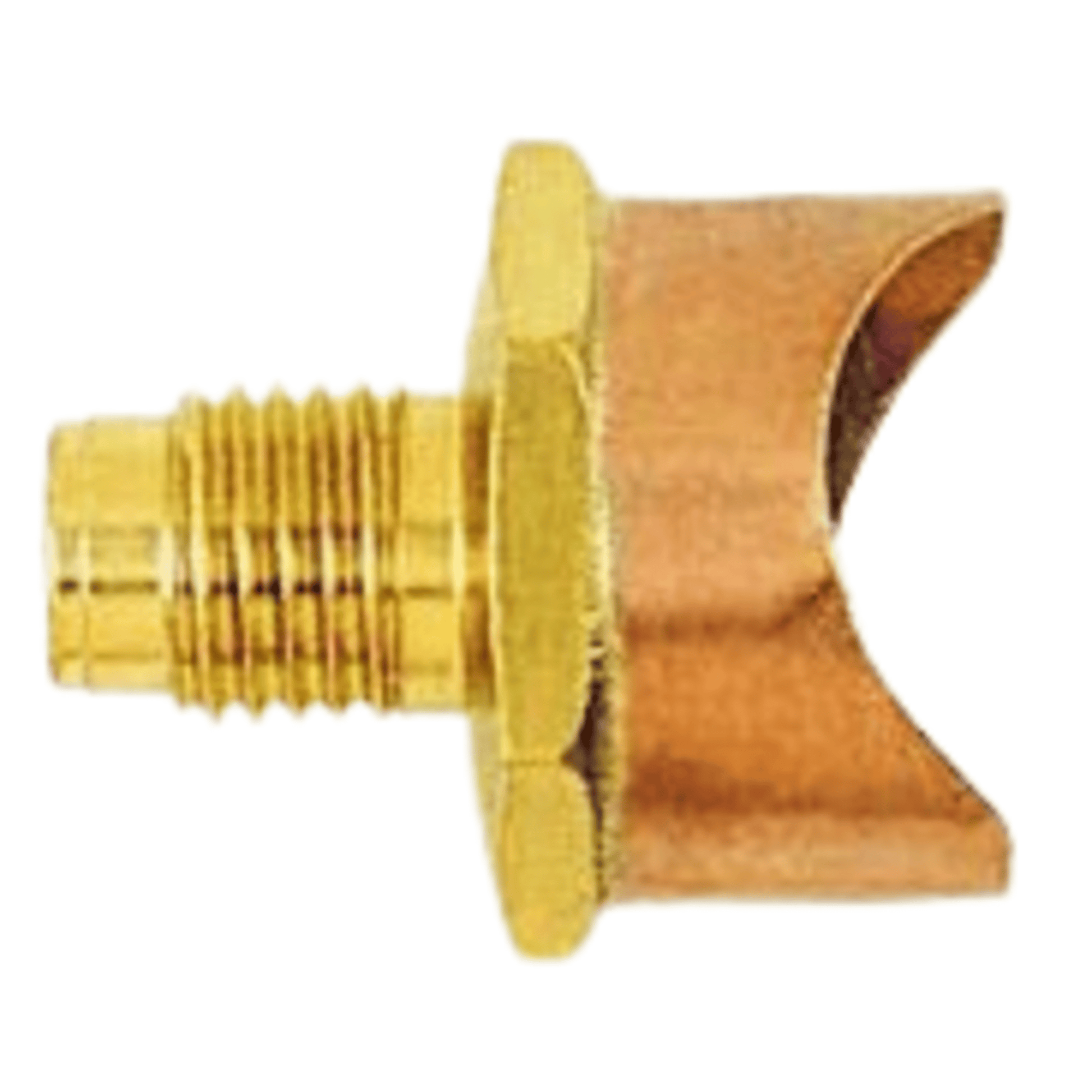

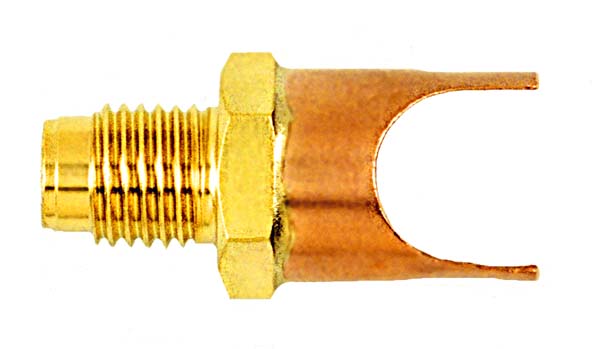

The C&D VALVE CD5512/4 is a braze-on, self-piercing copper saddle valve. Designed for a 1/2" tube, it is easily installed on a charged line. After brazing the saddle portion onto the line, the steel pin with valve core penetrates the line and is locked by tightening the cap. Ideal for HVAC/R applications.

• Braze-on, self-piercing
• Copper material
• Includes cap, valve core, and steel pin

Product Highlights

The CD5512/4 saddle valve provides a reliable solution for accessing and servicing refrigeration and air conditioning systems.

Product Information

Standard Information

• Brand: C&D VALVE
• Manufacturer Part Number: CD5512/4
• Country of Origin: China

Technical Specifications

• Type: Braze-On, Self-Piercing
• Minimum Tube Size: 1/2 Inch
• Maximum Tube Size: 1/2 Inch
• End Connection: Male Threaded
• Body Material: Copper
• Inclusions/Features: Cap, Valve Core, Steel Pin
• OD: 1/2"
• Material: Copper
• Nominal Size: 1/2 in
• Connection Type: Copper-to-Copper
• Model Number: CD5512/4
• Brand: C&D Valve
• MPN: CD5512/4
• Manufacturer: C&D Valve
• Product Type: 1/2" Copper Saddle Valve
• Country of Origin: China
