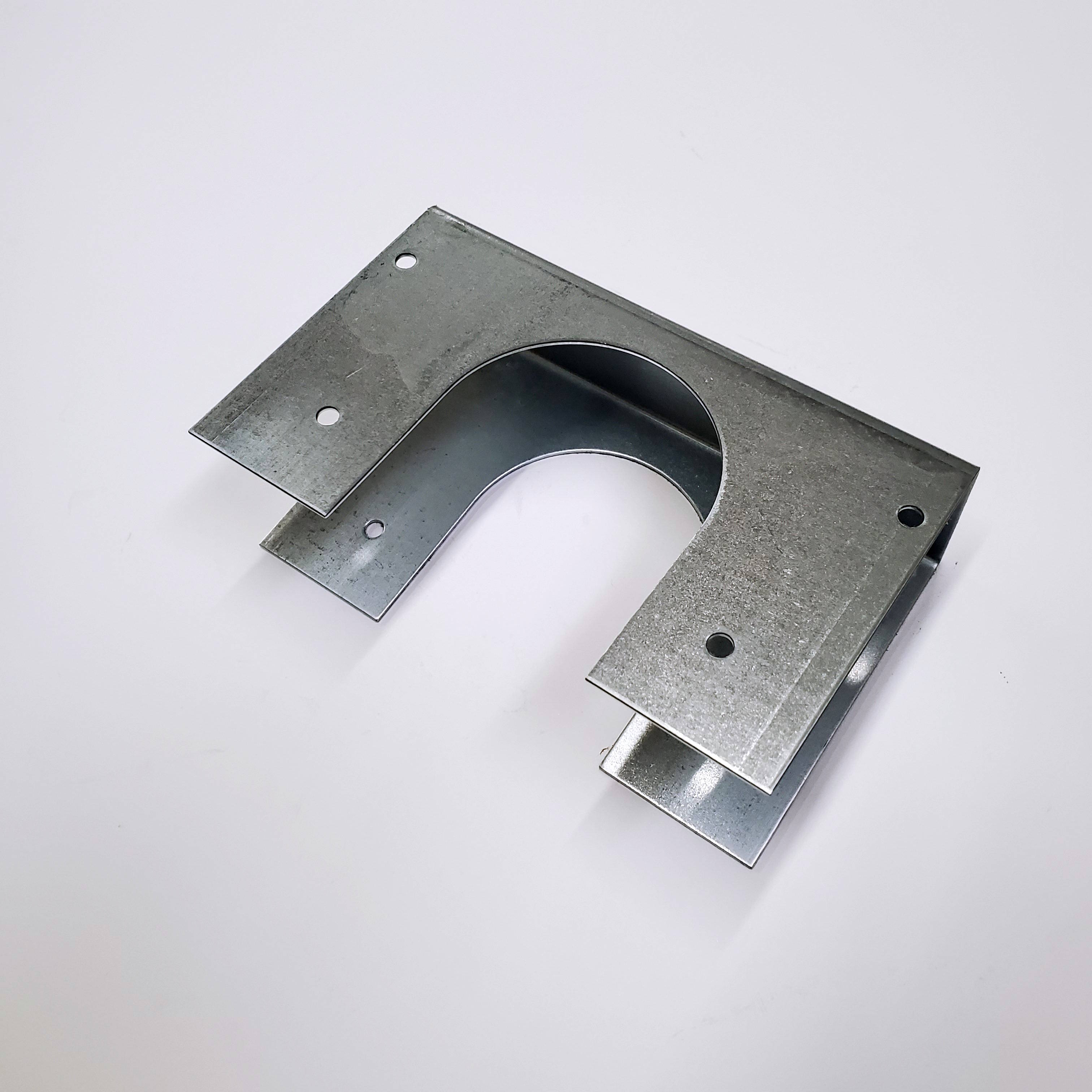

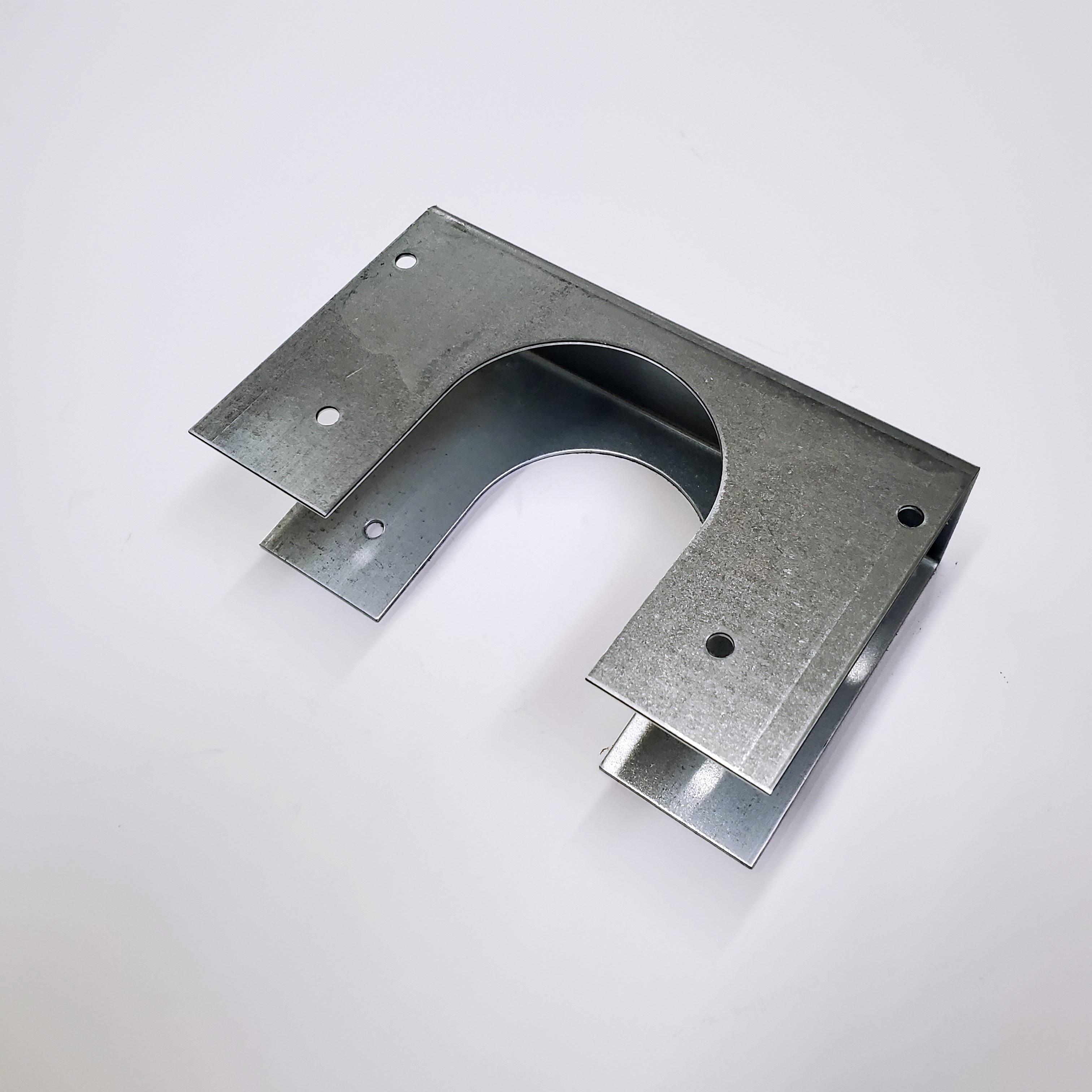

C and S Manufacturing BS-300-18 Galvanized steel stud support plate double 3.1 in width 18 gauge

Product Description

The C and S Manufacturing BS-300-18 is a galvanized steel double stud support plate with a 3.1 in width and 18 gauge construction. It secures pipe runs through studs and is code rated to IRC R602.6.1. The plate accepts a 2 in diameter rod and uses a double configuration to distribute load. Recommended fasteners include 10d x 1 1/2 in nails for BS-150 and BS-300 applications.

• Galvanized steel construction, double stud configuration, 18 gauge
• 3.1 in width; accepts a 2 in diameter rod; code rated to IRC R602.6.1
• Recommended fasteners: 10d x 1 1/2 in (for BS-150 and BS-300)

Product Highlights

Double galvanized steel stud support plate, 3.1 in width, 18 gauge, IRC R602.6.1 rated

Product Information

Standard Information

• Brand: C & S MANUFACTURING
• Manufacturer Part Number: BS-300-18
• Country of Origin: Domestic

Technical Specifications

• Brand: C and S Manufacturing
• MPN: BS-300-18
• Product Name: Galvanized Steel Stud Support Plate, Double, 3.1 in Width, 18 Gauge
• Material: Galvanized steel
• Configuration: Double
• Type: Double stud
• Width: 3.1 in
• Gauge: 18 gauge
• Finish: Galvanized
• Code Rating: IRC R602.6.1
• Accepts Rod Diameter: 2 in
• Recommended Fasteners: 10d x 1 1/2 in (for BS-150 and BS-300)
• UPC: 674883912011
• APR Part Number: 812504
• Domestic/Import: Domestic
