Bw Ultra HU-X1W1H1M1Q1-Y-N 5-Gas Detector (O2 LEL H2S CO VOCS) 5.8 x 3.3 x 1.6 in.

Product Description

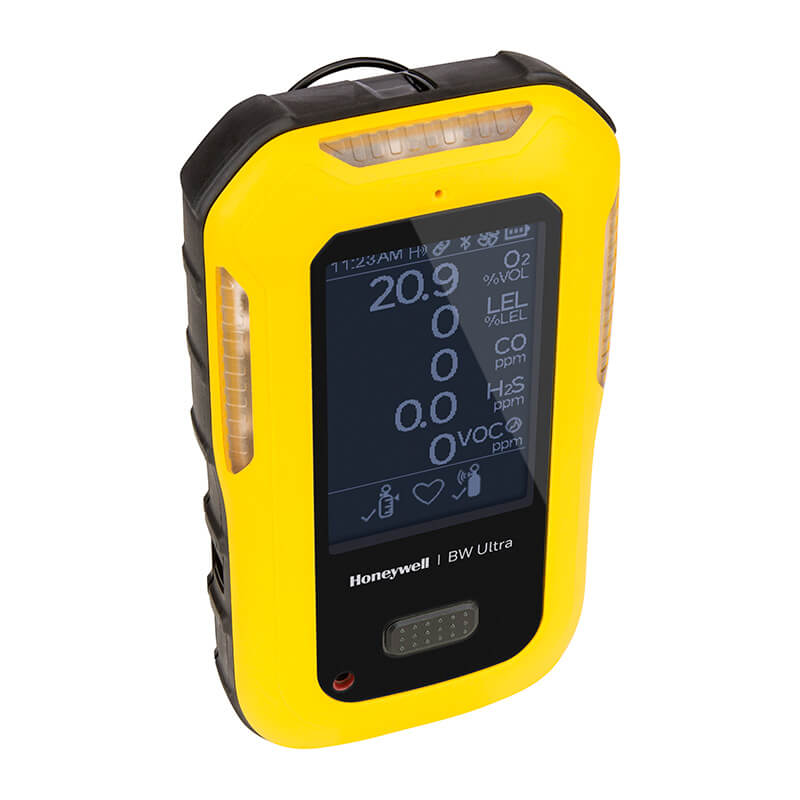

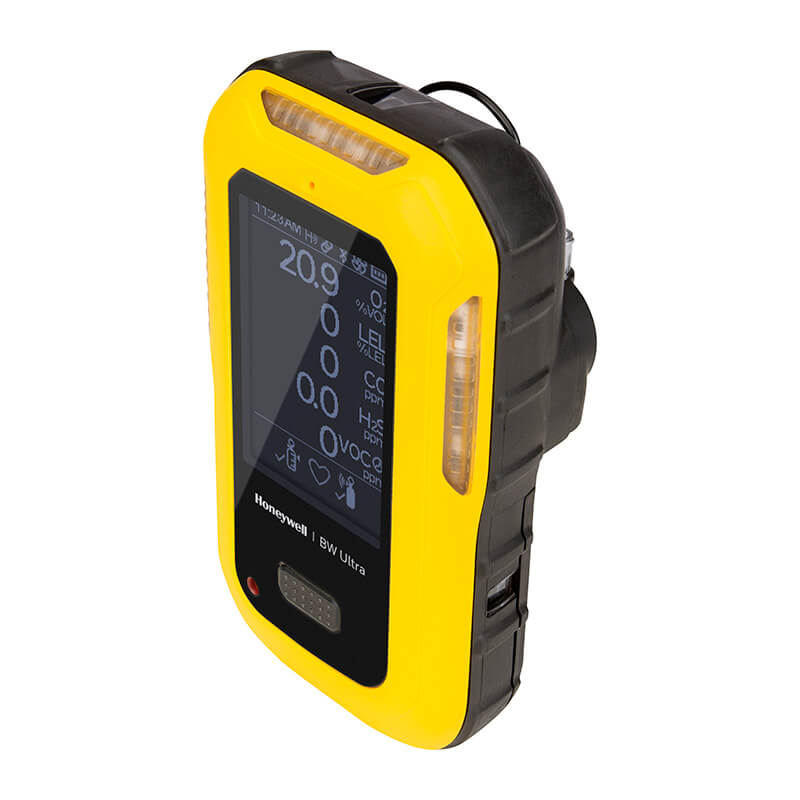

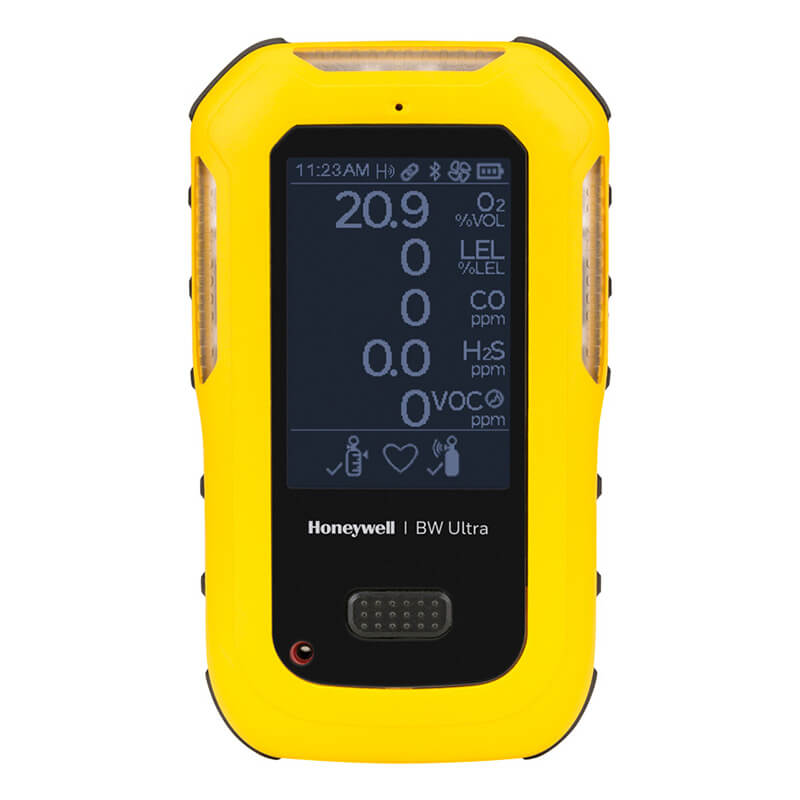

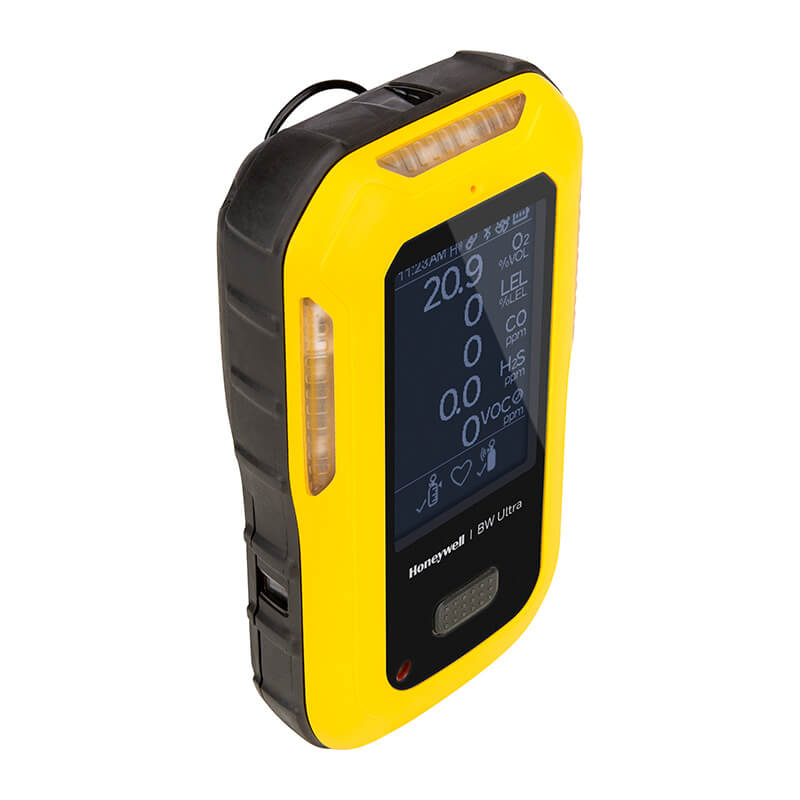

The BW ULTRA HU-X1W1H1M1Q1-Y-N is a portable 5-gas detector designed for sampling and monitoring confined spaces. It accurately detects Oxygen (O2), Lower Explosive Limit (LEL), Hydrogen Sulfide (H2S), Carbon Monoxide (CO), and Volatile Organic Compounds (VOCs). This device is suitable for various industries including oil and gas, pulp and paper, water treatment, and chemical plants, ensuring comprehensive safety monitoring. Its ergonomic design minimizes user fatigue during extended use.

• Ergonomic design with comfortable weight and slimmer profile to minimize fatigue and enhance productivity.
• Features a durable, scratch-resistant, large dot matrix LCD for clear readings and intuitive icons.
• Equipped with IntelliFlash and Reverse IntelliFlash for clear compliance indication and remote monitoring capabilities.

Product Highlights

This 5-gas detector offers reliable performance with quick-responding sensor technology and an extended battery life of up to 18 hours.

Product Information

Standard Information

• Brand: BW ULTRA
• Manufacturer Part Number: HU-X1W1H1M1Q1-Y-N
• Country of Origin: Mexico

Technical Specifications

• MPN: HU-X1W1H1M1Q1-Y-N
• Brand: BW ULTRA
• Detector Type: Multi-Gas
• Display Type: Digital
• Gas Type: O2, LEL, H2S, CO, VOCS
• Power Source: Battery
• Operating Temperature: -4 to +131° F / -20 to +50° C
• Humidity: 5 - 95% RH (non-condensing) continuous
• Ingress Protection: IP66/68
• Alarm Type: Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit)
• Self-Test Interval: Automatically performs one internal diagnostic test every 24 hours (sensors, battery, and circuitry)
• Typical Battery Life: 18 hours (14 hours with PID or IR sensor) @ -4° F / -20° C
• Pump Draw: Sample from up to 75 ft. / 22.9 m
• Event Logging: 30 alarm events and 10 bump events
• Data Logging: 45 days based on 8 hour shifts every 15 seconds logging
• User Options: Adjust STEL period (5-15 minutes in 1 minute intervals), Calibration span levels, Calibration interval, Bump test interval, LEL and PID correction factors, Calibration due date (1 to 365 days, or set to zero for off), Individual sensor enable/disable, Latching alarms, Stealth mode, Languages: English, French, German, Portuguese, Spanish, Simplified Chinese and Russian
