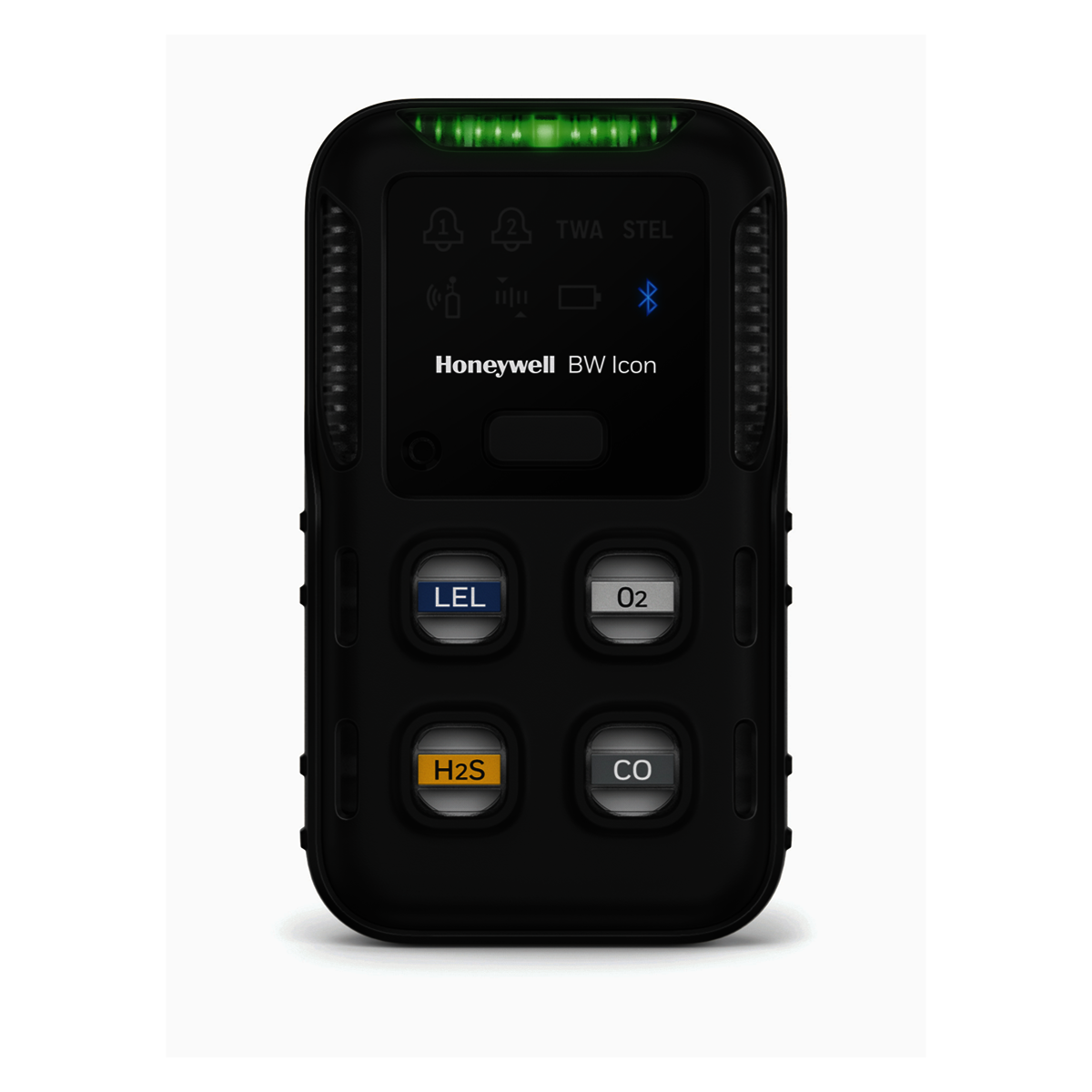

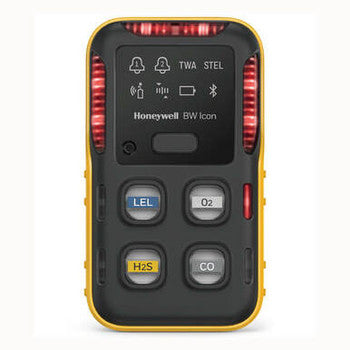

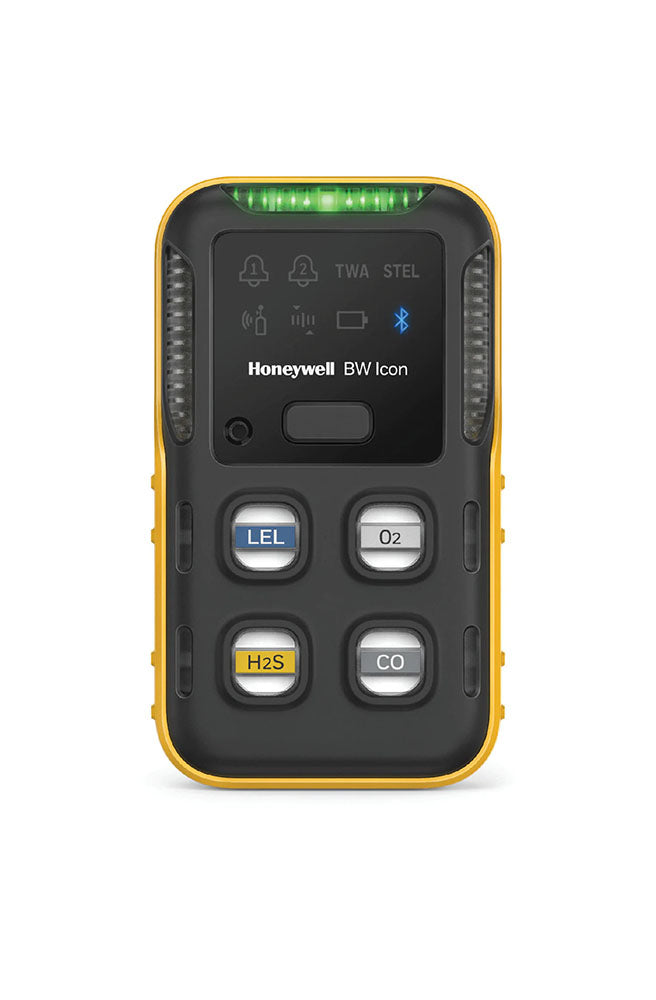

BW Technologies ICON-B-H Multi-Gas Detector

Product Description

The BW Technologies ICON-B-H is a portable multi-gas detector designed to monitor combustible gas (%LEL IR), oxygen (O2), hydrogen sulfide (H2S), and carbon monoxide (CO). This device provides two years of protection following activation, eliminating the need for sensor or battery replacements during its operational life. It is equipped with an icon-based display which allows for quick gas level assessments and device status checks.

• Monitors combustible gas, oxygen, hydrogen sulfide, and carbon monoxide.
• Features visual, vibrating, and audible alarms for safety alerts.
• Includes Bluetooth connectivity for reporting and configuration.

Product Highlights

This detector is ideal for professionals in hazardous environments. Its compact design allows for easy mobility and effective monitoring of multiple gases.

Product Information

Standard Information

• Brand: BW Technologies
• MPN: ICON-B-H

Technical Specifications

• Product Type: Multi Gas Detector
• Gas Monitored: %LEL IR, Oxygen, Hydrogen Sulfide, Carbon Monoxide
• Mobility: Portable
• Measuring Range: 0 to 100% LEL
• Size: 4.29 inches x 2.44 inches x 1.7 inches
• Weight: 6.5 oz with Alligator Clip
• Operating Temperature: -40 °C to 60 °C
• Operating Humidity: 5% to 95%
• Ingress Protection: IP66, IP68
• Alarms: Visual, vibrating, audible (95 dB)
• Self-Test: Performs diagnostics every ten minutes
• Battery Life: Two months with NDIR CH4 sensor
• Bluetooth: Low Energy connectivity
• Certifications: ATEX, IEC Ex
• Warranty: Two-year warranty for sensors and detector
