Butler Preferred Brand 2549swusa1 Sjtw Outdoor Extension Cord

Product Description

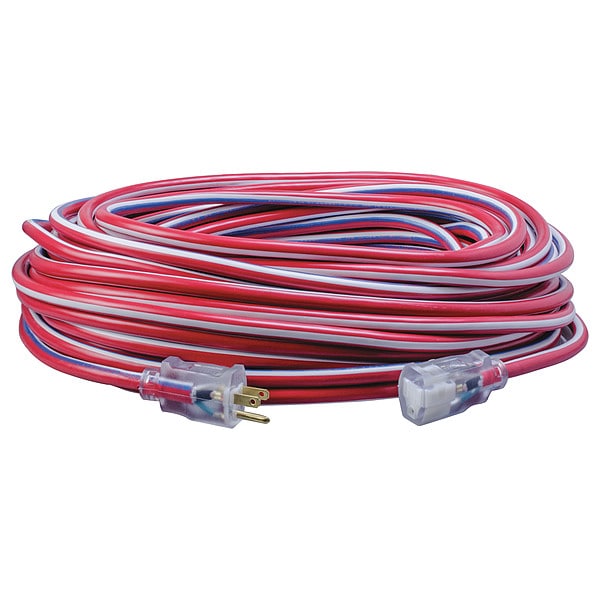

The BUTLER PREFERRED BRAND 2549swusa1 is a 100-foot SJTW-rated outdoor extension cord built for job site and field use. It runs 12 AWG, 3-conductor stranded copper through a PVC jacket rated from -40 degrees F to 140 degrees F, making it serviceable in cold-weather conditions where lighter cords fail. The NEMA 5-15P straight plug feeds a single NEMA 5-15R receptacle, with a rated capacity of 15 amps at 125 volts AC and a maximum load of 1,875 watts. A power indicator signals that the circuit is live. Electricians and contractors reach for this cord when routing temporary power to tools, equipment, or lighting across long runs on residential and light commercial sites.

This cord is suited for outdoor applications where moisture, temperature swings, and physical abuse are part of the environment. The SJTW trade designation confirms it is approved for outdoor use with a thermoplastic jacket that resists oil and sunlight degradation. The Blue, Red, and White jacket coloring aids quick visual identification on busy job sites. The single-connector, round-cord design coils and uncoils cleanly for repeated daily use. It fits general-purpose 15-amp circuits found throughout residential construction, remodeling, and outdoor maintenance work.

Key Features

• SJTW trade designation rated for outdoor and wet-location use
• 12 AWG, 3-conductor construction supports up to 15 amps and 1,875 watts over a 100-foot run
• Temperature rated from -40 degrees F to 140 degrees F for cold-weather job sites
• NEMA 5-15P straight plug to NEMA 5-15R single receptacle configuration
• Built-in power indicator confirms live circuit at the receptacle end
• PVC jacket in Blue, Red, and White for high-visibility site identification
• 0.44-inch nominal outside diameter round cord for easy handling and coiling

Compatibility

Designed for use with standard NEMA 5-15 15-amp, 125-volt AC circuits. Compatible with grounded outlets and tools requiring a standard three-prong connection on residential and light commercial job sites.

Installation Notes

Installation and use should follow NEC guidelines for temporary wiring and extension cord applications. Inspect the cord for damage before each use and do not exceed the 15-amp rated load. Never use an extension cord as a substitute for permanent wiring. For outdoor use on energized circuits, ensure the supplying receptacle is GFCI-protected per applicable code requirements.

Technical Specifications

• Voltage: 125 volts AC
• Max Amperage: 15 amps
• Max Wattage: 1,875 watts
• Wire Size: 12 AWG
• Number of Conductors: 3
• Cord Length: 100 feet
• Nominal Outside Diameter: 0.44 inches
• Jacket Material: PVC
• Jacket Color: Blue, Red, and White
• Trade Designation: SJTW
• Plug Configuration: NEMA 5-15P
• Receptacle Configuration: NEMA 5-15R
• Plug Style: Straight
• Cord Shape: Round
• Number of Outlets: 1
• Power Indicator: Yes
• Temperature Rating: -40 degrees F to 140 degrees F
• Location Rating: Outdoor
• Country of Origin: United States

Standard Information

• Brand: BUTLER PREFERRED BRAND
• Manufacturer Part Number: 2549swusa1
