Product Description

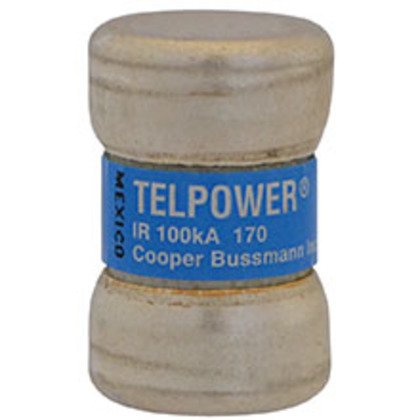

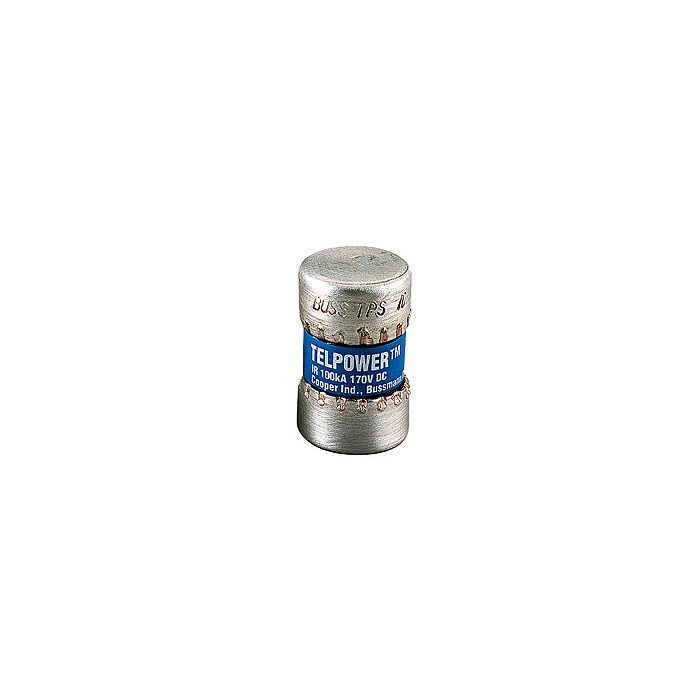

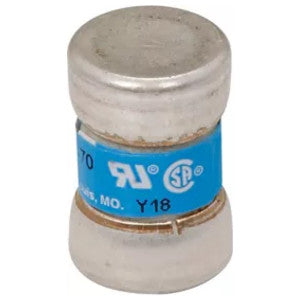

The Eaton Bussmann series TPS-50 is a telecommunication fuse, rated at 170 Vdc and 50 A with a 100 kAIC interrupt rating. This current-limiting fuse features ferrule end x ferrule end connections and a glass melamine tube with silver-plated brass ferrules. Designed for high-reliability applications.
- 170 Vdc voltage rating
- 50 A amperage rating
- 100 kAIC interrupt rating
Product Highlights
The Bussmann TPS-50 is ideal for telecommunication applications requiring a reliable and compact fuse.
Product Information
Standard Information
-
Brand: BUSSMANN
-
Manufacturer Part Number: TPS-50
-
Country of Origin: MX - Mexico
Technical Specifications
-
Product Name: Eaton Bussmann series TPS telecommunication fuse
-
Catalog Number: TPS-50
-
UPC: 051712197076
-
Product Length/Depth: 0.56 in
-
Product Height: 0.87 in
-
Product Width: 0.56 in
-
Product Weight: 0.2 lb
-
Compliances: CE Marked RoHS Compliant
-
Product Type: Telecommunication fuse
-
Amperage Rating: 50 A
-
Interrupt rating: 100 kAIC
-
Voltage rating: 170 Vdc
-
Packaging type: Standard
-
Connection: Ferrule end x ferrule end
-
Fuse indicator: Non-indicating
-
Amps: 50
-
Volts DC: 170
-
Fuse Type: Telpower
-
Interrupting Rating: 100kA
-
Physical Size: 0.56" x 0.88"
-
DC Voltage Rating: 170
-
Interrupting Rating (AIC RMS): 100,000
-
UL Recognized: Guide JFHR2, File E56412
-
Ferrules: Silver plated brass
-
Tube Material: Glass melamine
-
Speed: Fast Acting
-
Type: Fuse, Telepower
-
Ampere: 50 A
-
Class: Telepower
-
Shape: Cartridge Fuses
-
Approvals: CE, UL, RoHS
-
Dimensions: 0.56" Dia x 0.87" L (14.3x22.2mm)
-
Material: Glass Melamine Tube
-
Fuse Interrupt Rating: 100 kAIC
-
Fuse Dimension: 0.88 L x 0.56 in. Dia.
-
Rated Voltage: 170V dc
-
Length: 0.56 in
-
Width: 0.56 in.
-
Voltage Rating: 170 VDC
