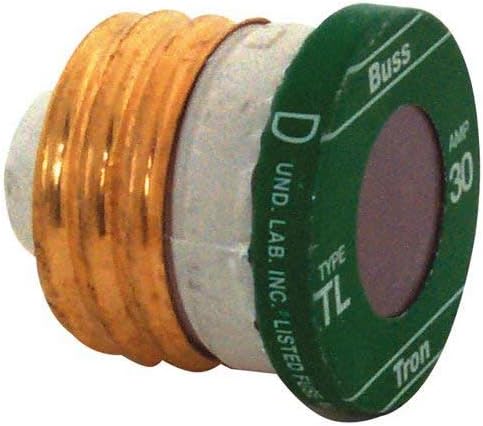

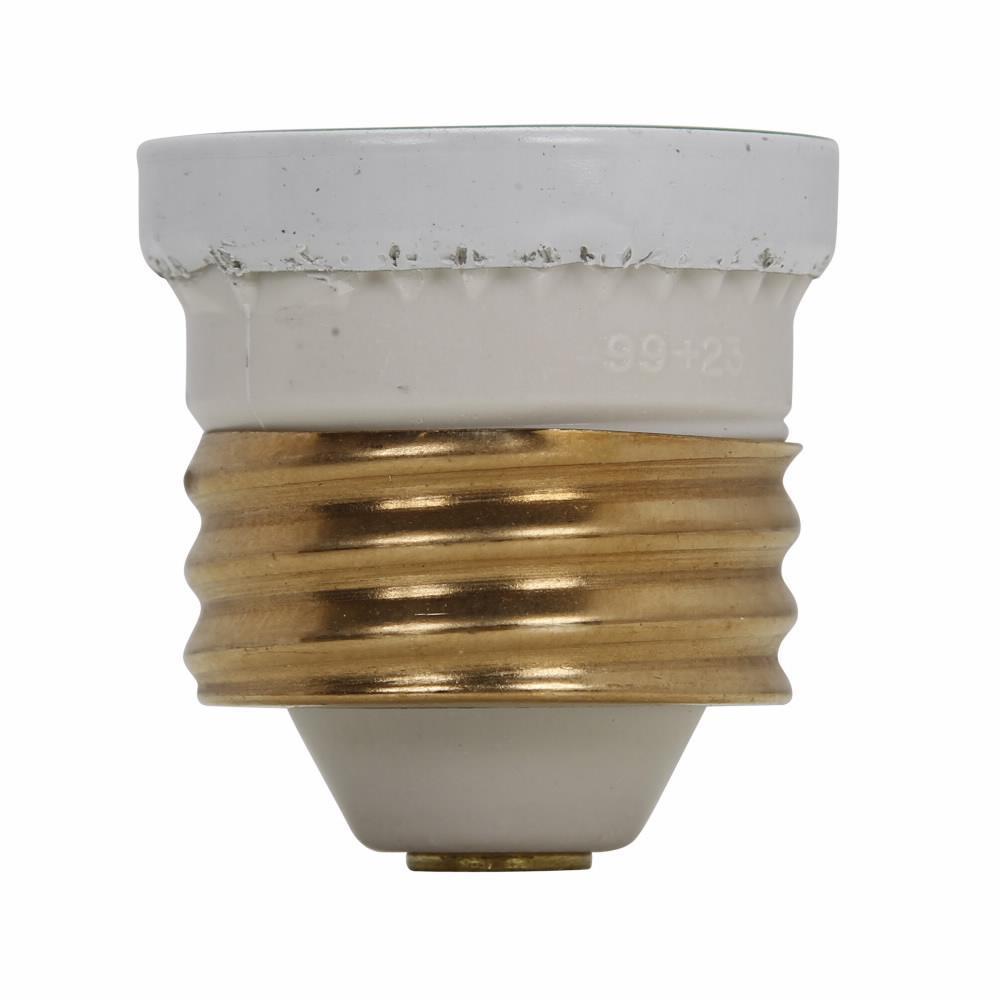

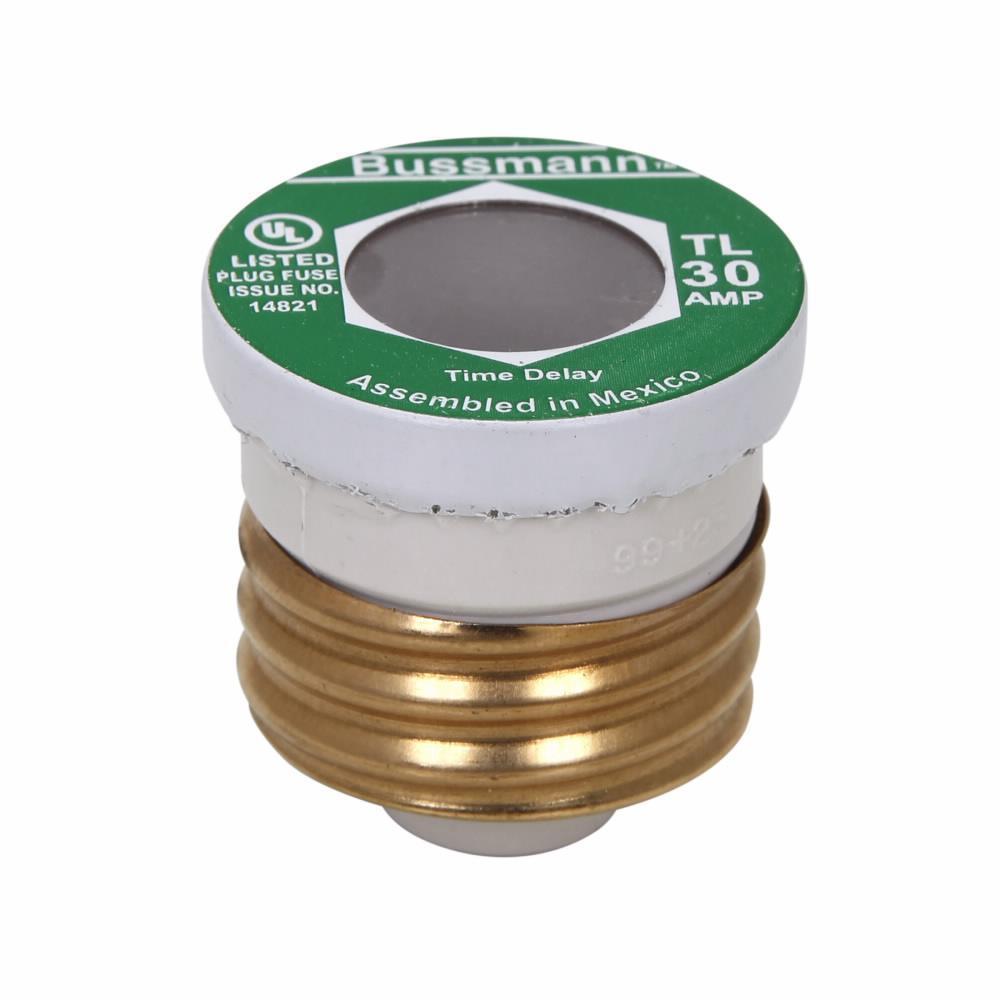

Bussmann TL-30 Tron Time Delay Plug Fuse 30A

Product Description

The Bussmann TL-30 Tron Time Delay Plug Fuse is designed for residential or light-duty circuits that contain electric motors. This time-delay fuse withstands typical motor starting surges. It threads into fuse receptacles or box cover units for supplemental protection. Edison base size.

• Withstands typical motor starting surges
• For residential or light-duty circuits with electric motors
• Medium duty time-delay

Product Highlights

This Bussmann TL series fuse is a time delay fuse with a 30A amperage rating and 125V voltage rating.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: TL-30

Technical Specifications

• Voltage: 125V
• Material: Copper
• Amperage Capacity: 30 Amps
• Amperage: 30A
• Fuse Type: Low-Voltage, Time Delay
• Base: Edison Base
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Threaded
• Rejection/Non-Rejection: Non-Rejection
• Series: TL Series
• Terminal Type: Stud
• Type: Time Delay Loaded Link
• Amperage Rating: 30 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kA
• Body Type: Round
• Product Name: Eaton Bussmann series Type TL plug fuse
• Catalog Number: TL-30
• UPC: 051712101349
• Product Length/Depth: 1.25 in
• Product Height: 1.25 in
• Product Width: 1.25 in
• Product Type: Plug fuse
• Interrupt rating: 10 kAIC
• Application: Small motor and high inductive load circuits with high in-rush current levels, box cover units to provide equipment protection, residential or light
• Mounting method: Threaded
• Current Rating: 30 A
• Length: 1-1/4 in
• Body Material: Plastic
