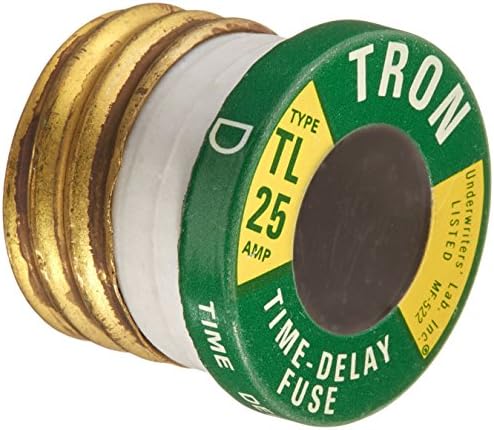

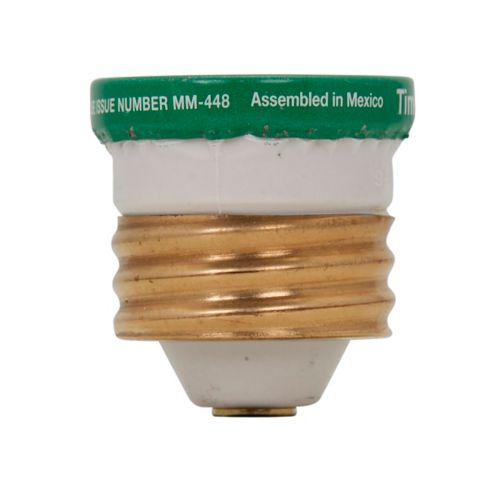

Bussmann TL-25 Low Voltage Medium Duty Time Delay Plug Fuse, 25 A

Product Description

The Bussmann TL-25 is a low voltage, medium duty, time delay plug fuse. Rated at 25 A and 125 VAC with a 10 kA interrupt rating, it features a screw-in body and single element. It is UL listed with an Edison base, designed for residential and industrial branch circuit and motor protection. It withstands typical motor starting surges.

• Time-Delay Plug Fuse
• Will Withstand Typical Motor Starting Surges
• Use In Residential Or Light-Duty Circuits That Contain Electric Motors

Product Highlights

This time-delay plug fuse is ideal for residential and light-duty circuits with electric motors, providing reliable overload protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: TL-25

Technical Specifications

• Brand: Bussmann
• Voltage: 120 Volts
• Material: Metal
• Specification met: UL
• Current rating: 25 Amps
• Product Name: Eaton Bussmann series Type TL plug fuse
• Catalog Number: TL-25
• Product Length/Depth: 1.25 in
• Product Height: 1.25 in
• Product Width: 1.25 in
• Compliances: Contact factory
• Product Type: Plug fuse
• Amperage Rating: 25 A
• Interrupt rating: 10 kAIC
• Voltage rating: 125 V
• Application: Small motor and high inductive load circuits with high in-rush current levels, box cover units to provide equipment protection, residential or light
• Base: Edison
• Mounting method: Threaded
• Type: Time delay
• Primary brand: Eaton
• Secondary brand: Cooper Bussmann
• Main function: Fuse
• Product series / family name: LV branch circuit fuses
• Sub-range name: Edison base plug fuses
• Functions: Low-Voltage (LV) time-delay plug fuse
• Rated current: 25A
• Rated voltage (AC): 125Vac
• Connection type: Edison base (threaded)
• Short circuit breaking rating: 10kA (RMS symmetrical)
• Technical compatibility with: small motor and inductive load circuits with high inrush current levels
• for: box cover units to provide small motor overload protection
• Order code / Manufacturer SKU: TL-25
• Manufacturer product status: Commercialized
• Compliant with standard(s): UL Listed Std. 248-11 Guide JEFV File E12112
• Body Material: Plastic
• Element Type: Single
• Fuse Type: Low-Voltage, Time Delay
• Length: 1-1/4 in
• Fuse Speed: Time-Delay/Slow-Blow (T)
• Suitable For: Interior
• Tripping Characteristics: Type A
• Current Type: AC
• Control Style: Analog/Mechanical
• Fuse Classification: One-Time Only
• Orientation: Horizontal/Vertical
• Operation Method: Horizontal
• Fuse Body Type: Plug (Screw In)
• Smart Home Compatibility: Universal
• Features: Thermal Overload Protection
• Protection Properties: Overload Protection
• Mounting Style: Screw, Surface
• Number of Phases: 1
• Electrical Connection: Screw Terminal
• Model: TL-25
• Item Height: 1 in
