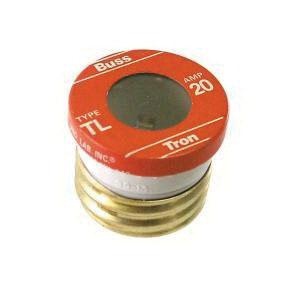

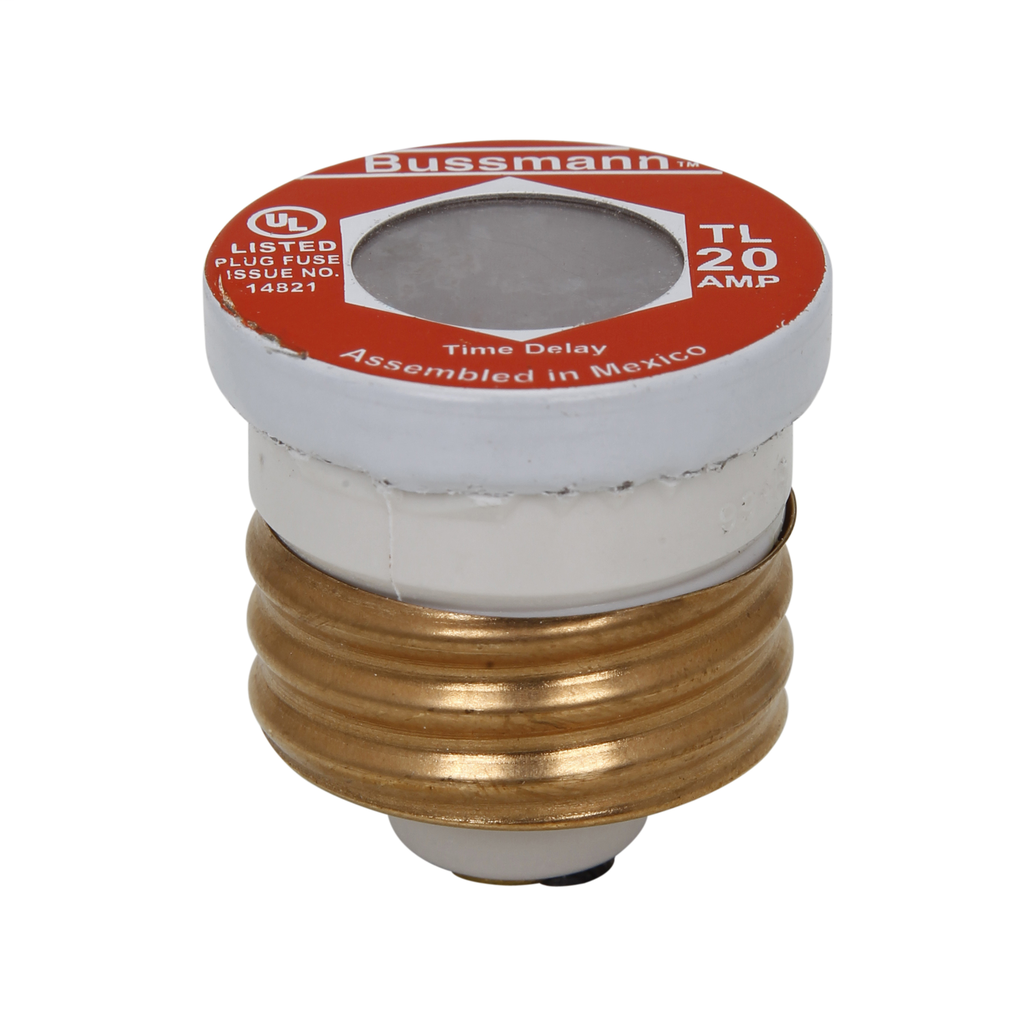

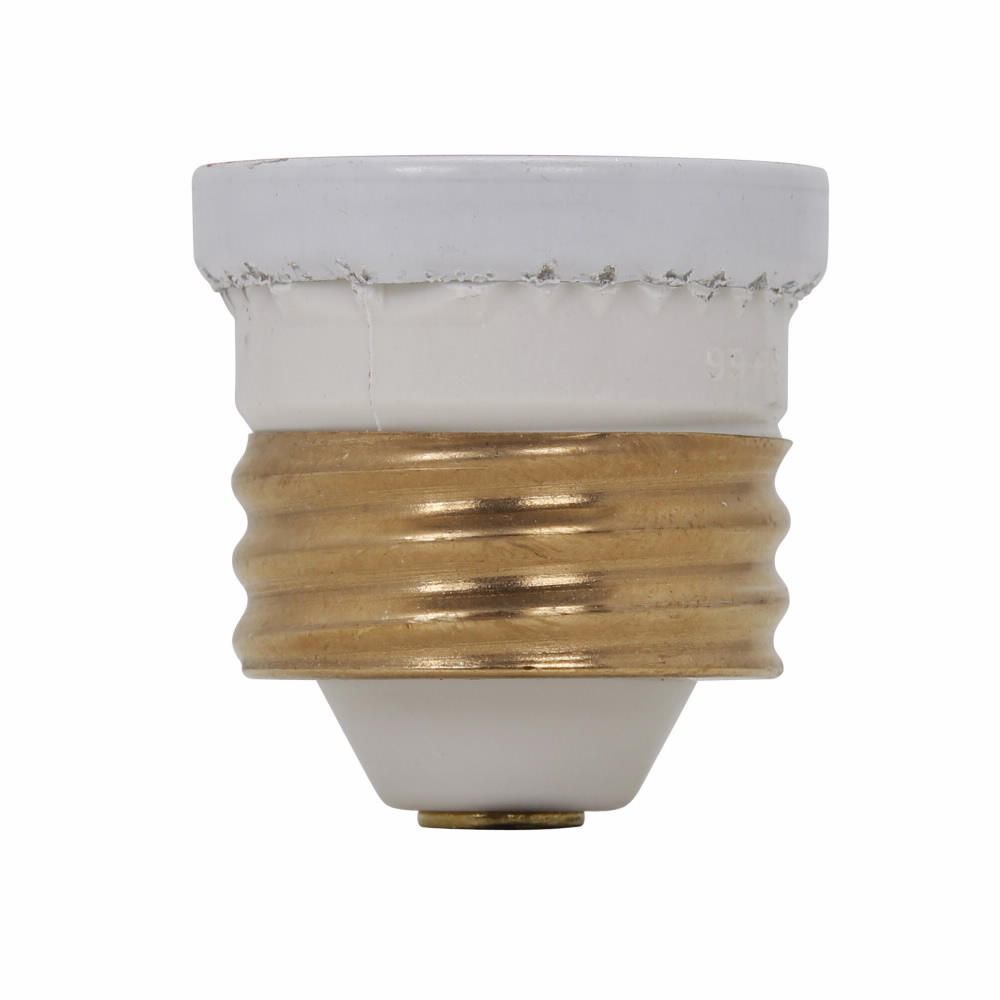

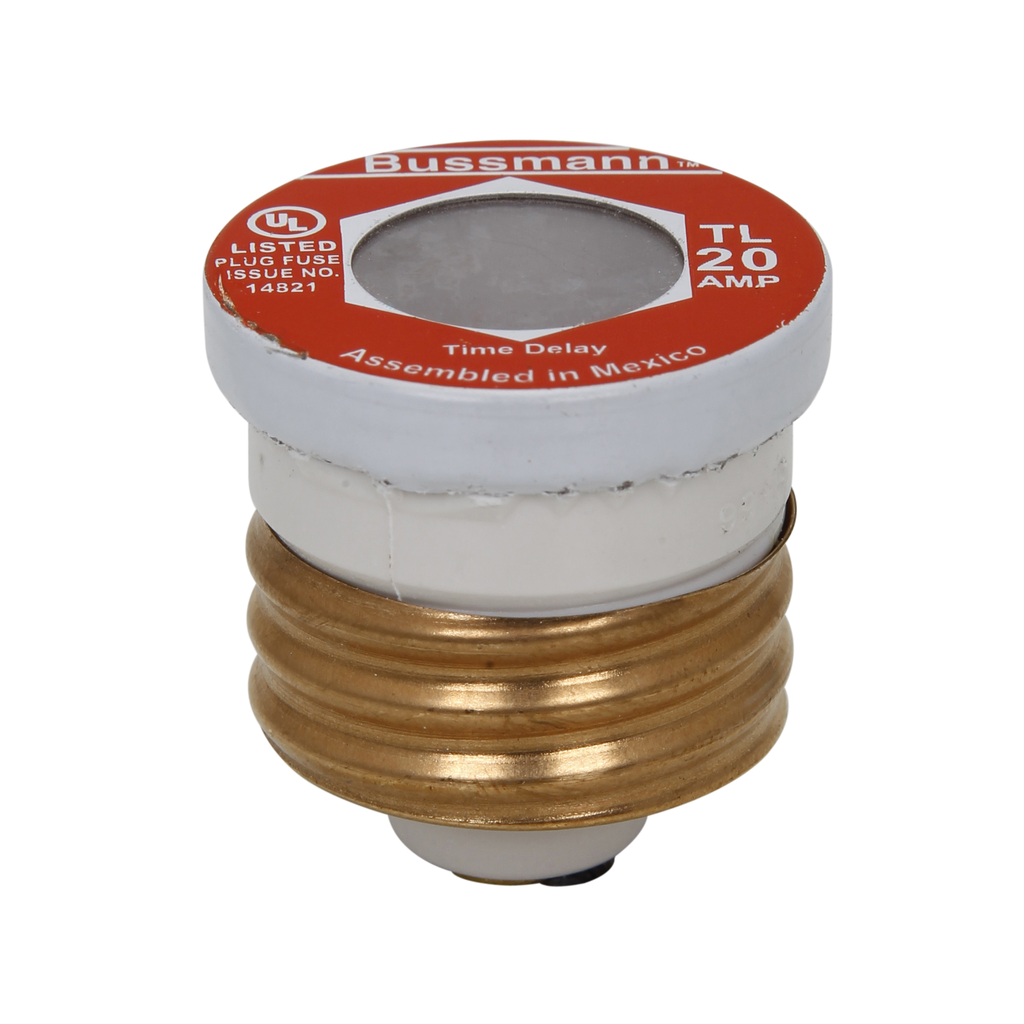

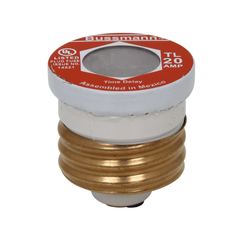

Bussmann TL-20 125vAC 20amp Time-Delay Loaded Link Plug Fuse, Edison Base

Product Description

The Bussmann TL-20 is a 125 volt AC 20 amp time-delay loaded link plug fuse designed to provide reliable circuit protection. This fuse features an Edison base and is suitable for small motor and high inductive load circuits. Its compact design allows it to fit in standard fuse receptacles and box cover units, ensuring ease of installation.

• Time-delay functionality to withstand motor inrush currents
• Constructed with brass threads and plastic body for durability
• UL listed and CE certified for safety and compliance

Product Highlights

This fuse is ideal for residential and light-duty applications, providing enhanced protection for electric motors by allowing controlled overload without tripping immediately.

Product Information

Standard Information

• Brand: Bussmann
• MPN: TL-20

Technical Specifications

• Voltage: 125 Volt AC
• Amperage: 20 Amp
• Type: Time Delay
• Weight: 0.4 lb
• Interrupt Rating: 10 kAIC
• Material: Brass body with plastic casing
• Standard Compliance: UL 248-11, CE
• Applications: Suitable for small motor circuits, residential applications
