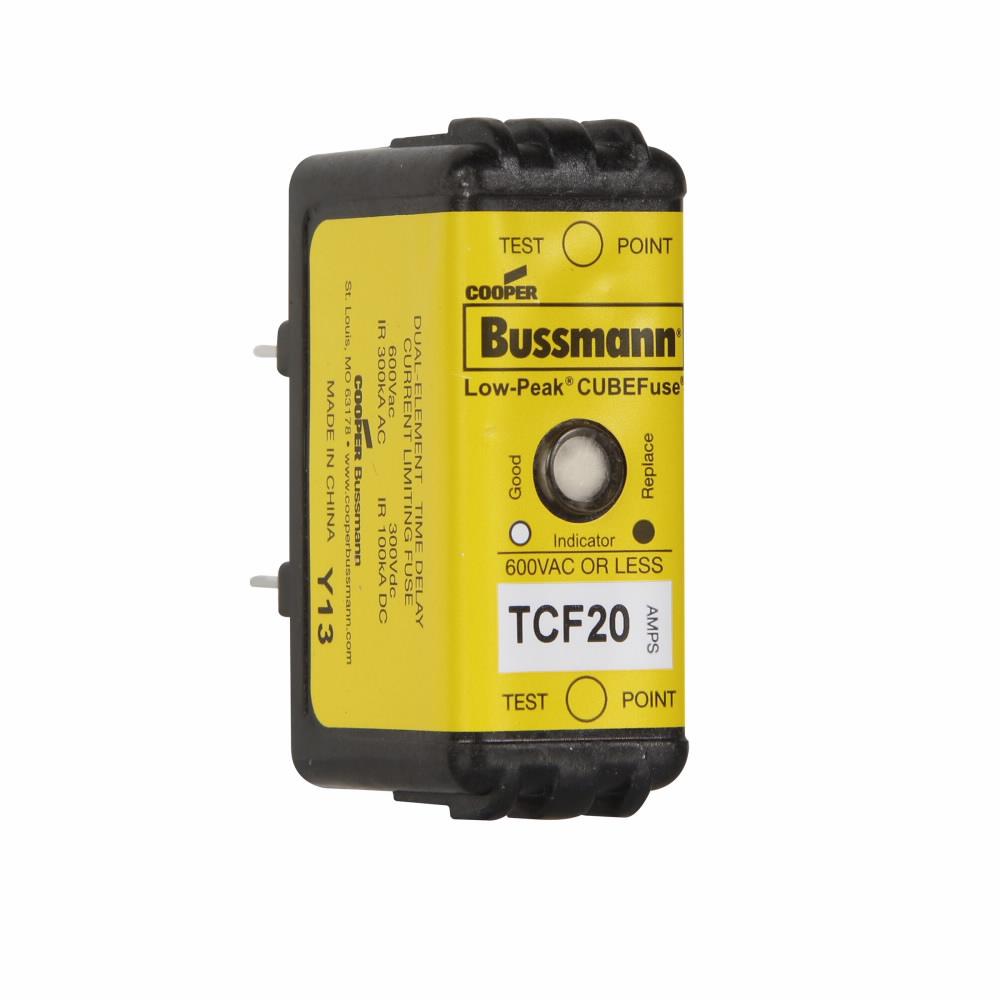

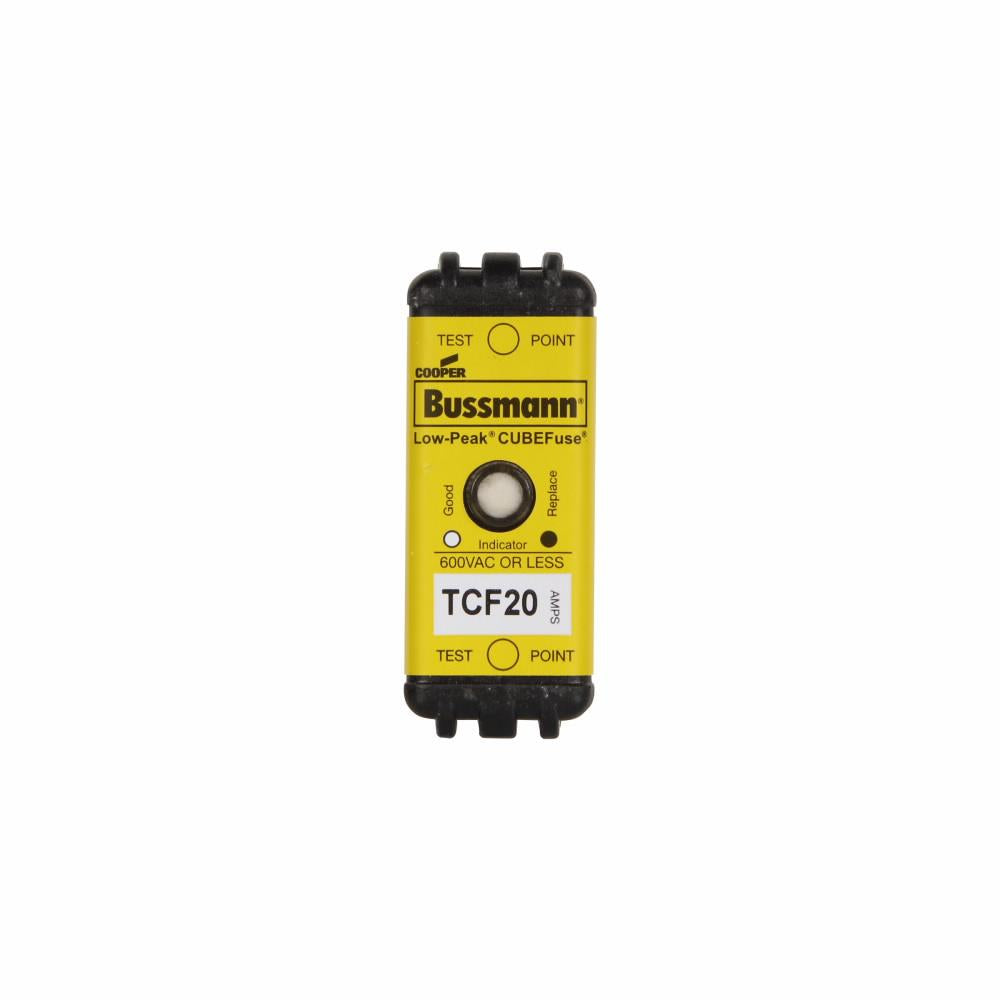

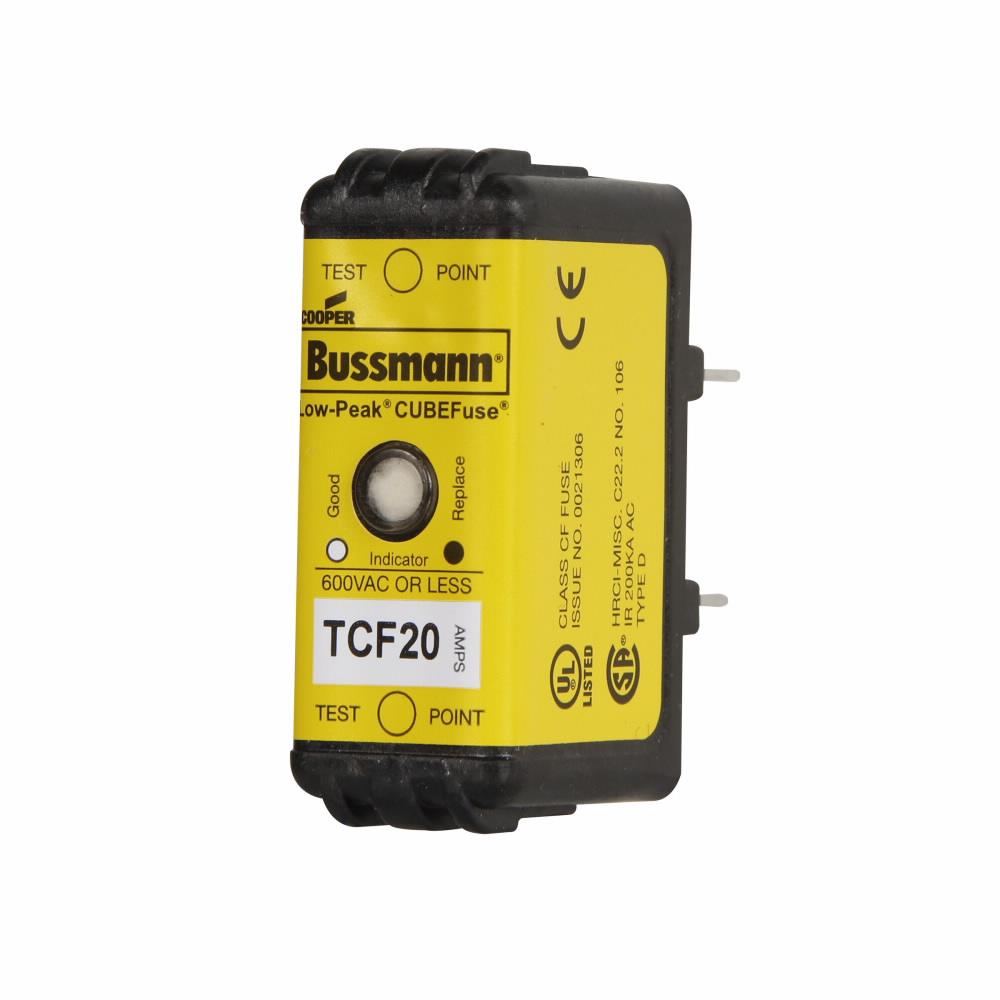

Bussmann TCF20 CUBEFuse; 20 A; 600 VAC/300 VDC; 100/300 kA Interrupt

Product Description

The Bussmann TCF20 is a low-peak CUBEFuse by Eaton. This fuse is designed for electrical circuits and is rated at twenty amps, functioning at six hundred volts alternating current or three hundred volts direct current. The TCF20 has an interrupt rating of one hundred and three hundred kiloamperes, providing reliable protection in critical electrical applications.

• CUBE Fuse technology saves space by requiring seventy percent less space than conventional fuses.
• Time Delay feature minimizes nuisance tripping caused by temporary overloads.
• Indicating Non-Rejection feature enables faster identification of blown fuses for quicker maintenance.

Product Highlights

The Bussmann TCF20 is designed for industrial applications including facilities and datacenters. It is ideal for systems requiring high short-circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 100/300 kA
• Body Size: 1.88 in L x 0.75 in W x 1 in H
• Frequency Rating: 50/60 Hz
• Mounting Type: Chassis/DIN Rail
• Response Time: 10 s at 500%
• Material: Glass Filled Polyethersulfone
