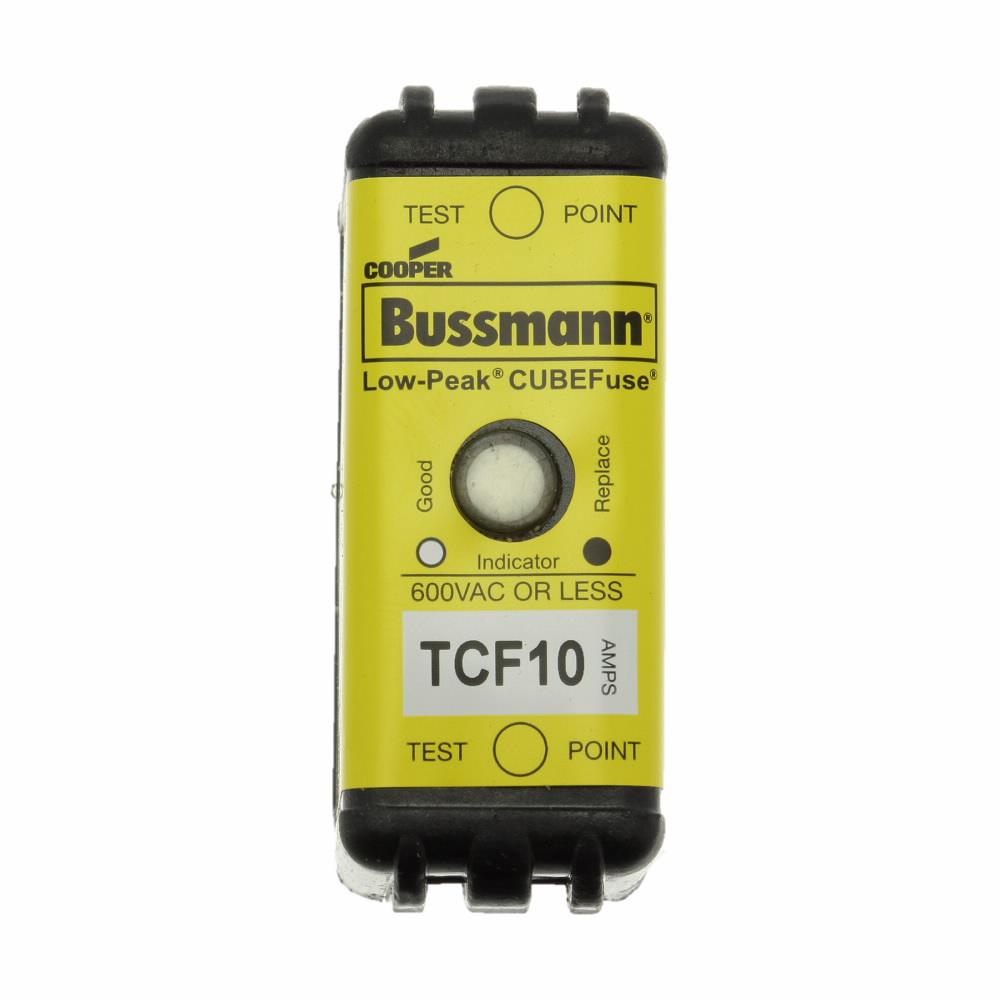

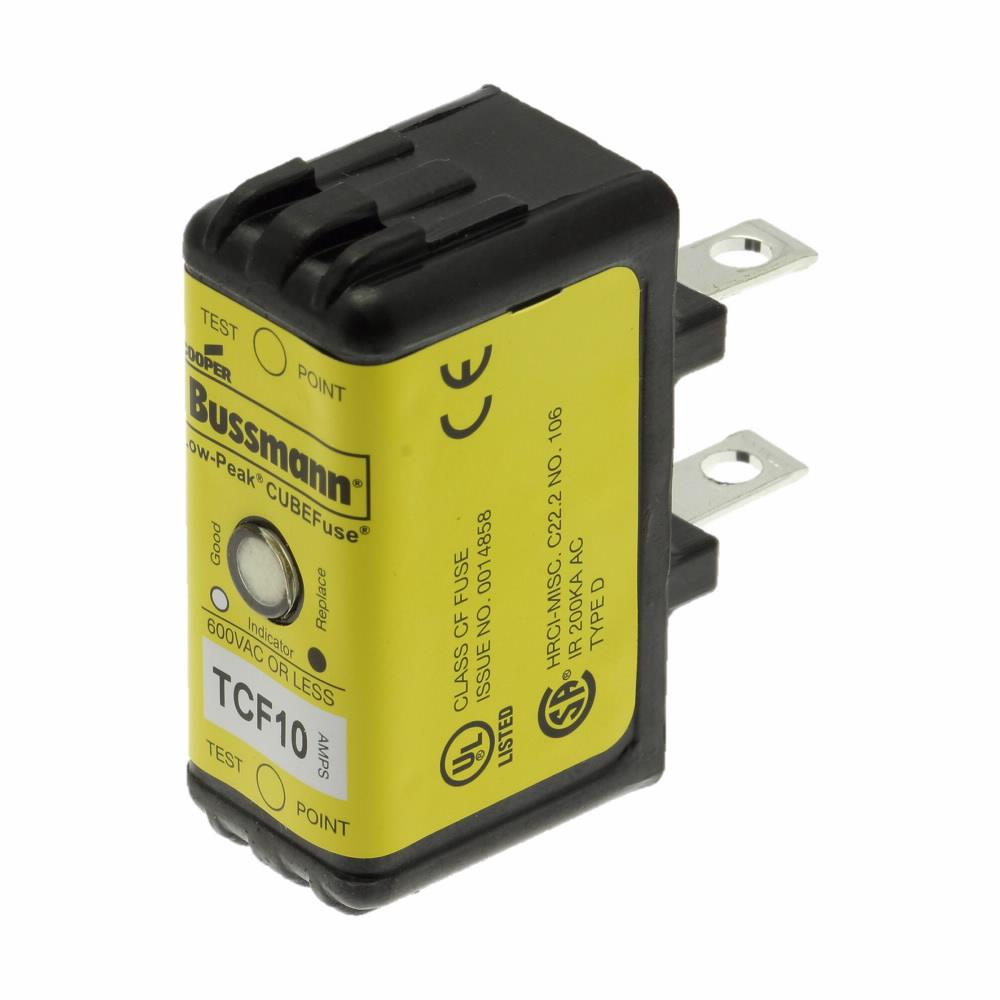

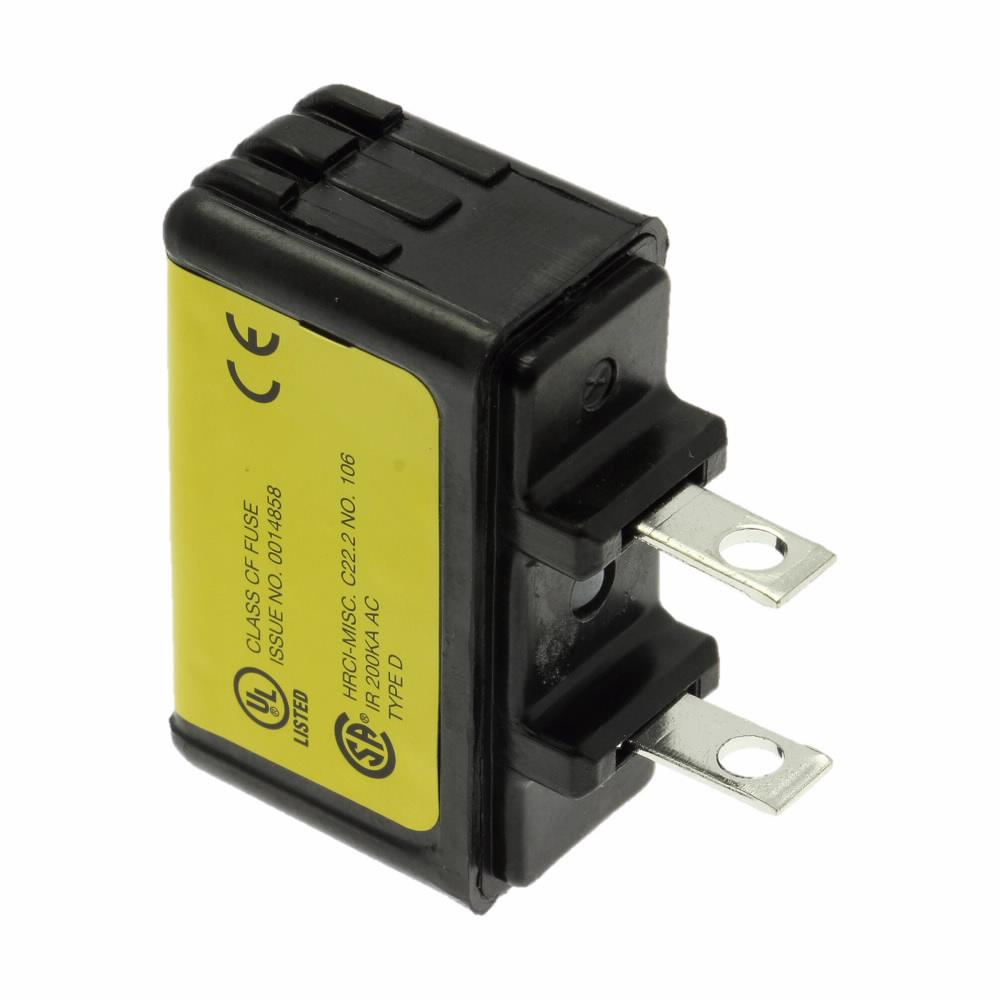

Bussmann TCF10 Current Limiting Inrush Current Withstand Time Delay Fuse 10 A 600 VAC/300 VDC

Product Description

The Bussmann TCF10 is a current limiting, time delay fuse designed for branch circuits. This fuse is rated for 10 amperes with a voltage capacity of six hundred volts alternating current or three hundred volts direct current. It offers an interrupting capacity of one hundred kilovolts at three hundred volts direct current and three hundred kilovolts at six hundred volts alternating current.

• Compact square body design for space efficiency
• Time delay feature to prevent nuisance tripping
• Offers finger-safe operation for added safety

Product Highlights

This product features a true dual element design, which provides a time delay of ten seconds at five hundred percent of the rated current. It is suitable for use in various applications, including industrial facilities and HVAC systems.

Product Information

Standard Information

• Brand: Bussmann
• MPN: TCF10

Technical Specifications

• Body Size: 1.88 in L x 0.75 in W x 1 in H
• Element: Dual
• Material: Glass Filled Polyethersulfone
• Mounting Type: Chassis/DIN Rail
• Response Time: 10 s at 500%
• Series: TCF
• Terminal Type: Blade
• Type: Current Limiting Inrush Current Withstand
• Amperage Rating: 10 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 100/300 kA
• Class: CF
• Body Type: Square
