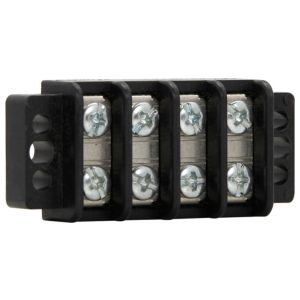

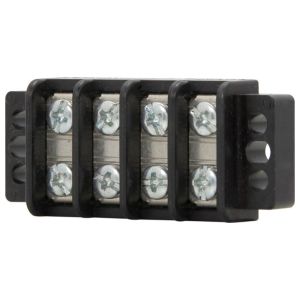

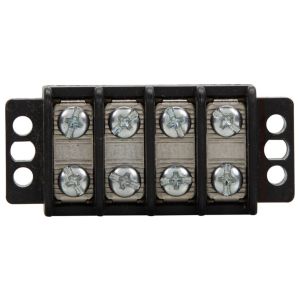

Bussmann TB200-18 TB200 Series Barrier Terminal Block Connector Double Row 18 Pole 30A 300V

Product Description

The Bussmann TB200-18 is a panel mount terminal block connector designed for robust electrical connections. This double row barrier terminal block features an 18-pole configuration capable of handling up to thirty amps at three hundred volts. It utilizes tin-plated brass terminals and zinc-plated steel screws for secure connections and durability.

• Rated for thirty amps and three hundred volts
• Compact double row design with eighteen poles
• Includes screw terminals for easy wire attachment

Product Highlights

This terminal block is ideal for various applications in electrical control and automation, allowing for high-density circuit connections without the need for additional mounting rails.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• Part Number: TB200-18

Technical Specifications

• Rated Current: 30A
• Rated Voltage: 300V
• Height: 0.56 inches
• Width: 1.12 inches
• Length: 8.62 inches
• No. of Poles: 18
• No. of Levels: 2
• Country of Origin: MX - Mexico
