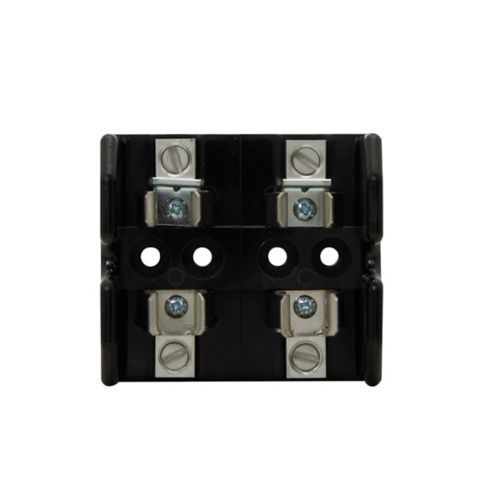

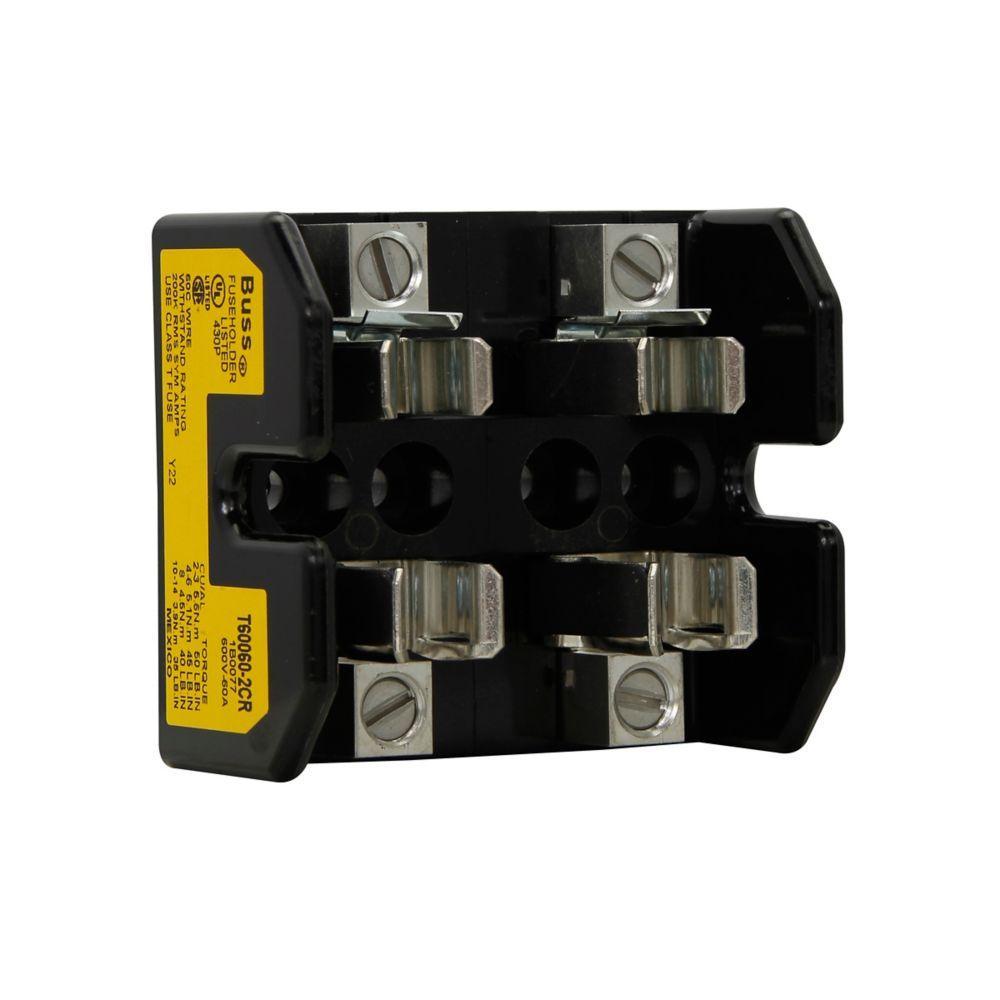

Bussmann T60060-2CR Eaton Bussmann series Class T modular fuse block 31-60 A

Product Description

The Eaton Bussmann series Class T modular fuse block, MPN T60060-2CR, is designed for control systems operating at 600 Vac/Vdc or less. It accommodates 31-60 A and features a two-pole configuration. Constructed from glass polyester, this Class T fuse block offers a 200 kA interrupt rating and accepts #2 AWG Cu/Al wiring.

• CR special feature
• Class T fuse block
• Box lug connection

Product Highlights

Modular fuse block with a compact design, ideal for space-saving in equipment. UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T60060-2CR
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series Class T modular fuse block
• Catalog Number: T60060-2CR
• UPC: 051712148122
• EAN: 5027590404495
• Product Length/Depth: 3.5 in
• Product Height: 1.5 in
• Product Width: 3 in
• Compliances: RoHS Compliant, CE Marked
• Certifications: UL Listed, CSA Certified
• Product Type: Modular fuse block
• Amperage Rating: 31-60A
• Interrupt rating: 200 kAIC
• Short-circuit rating: 200 kA
• Voltage rating: 600 Vac, 600 Vdc
• Material: Glass polyester
• Number of poles: Two-pole
• Wire size: #2 AWG Cu/Al
• Class: Class T
• Connection: Box lug
• Special features: CR
• Brand: Bussman
• Model: T60060
• MPN: T60060-2CR
• Series: T600
• Terminal Type: Box Lug
• Wire Gauge: 2 AWG Wire
• Mounting Type: Chassis Mount
• Fuse Length: 1.56 in
• Fuse Diameter: 0.81 in
• Fuse Size: 1.56 in Length x 0.81 in Diameter
• For Use With: JJS Series Cartridge Fuse
• Current Rating (Amps): 60 A
• For Use With/Related Products: Class T Fuses
• Fuse Type: Cartridge
• Fuseholder Type: Block
• Part Status: Active
• Number of Circuits: 2
• Voltage: 600V
