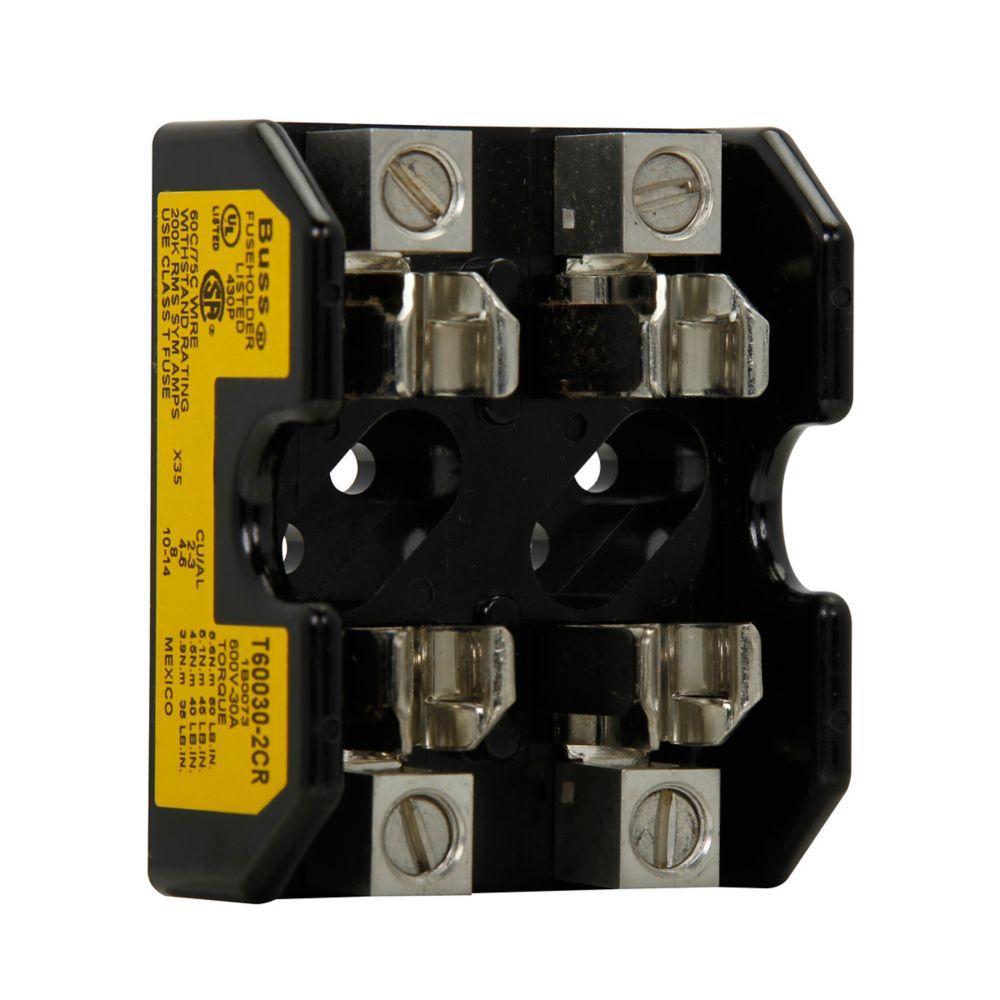

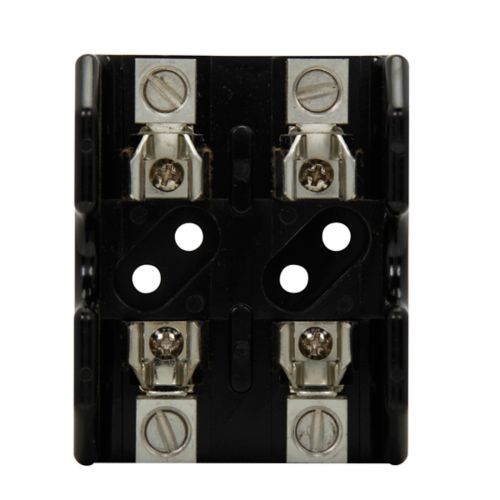

Bussmann T60030-2CR Fuse Block 0-30 A

Product Description

The Eaton Bussmann series Class T modular fuse block, MPN T60030-2CR, is designed for control systems operating at 600 Vac/Vdc or less. It accommodates 0-30 A, features a two-pole configuration, and is suitable for Class T fuses. Constructed from glass polyester, it offers a 200 kAIC and accepts #2 AWG Cu/Al wiring.

• 200 kA rms symmetrical interrupt rating
• Class T fuse blocks have a small foot print, providing substantial space savings in equipment
• 2 AWG copper/aluminum

Product Highlights

Modular fuse block for 600 Vac/Vdc systems, supporting 0-30A with a Class T fuse, and a compact design.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T60030-2CR
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Bussmann series Class T modular fuse block
• Catalog Number: T60030-2CR
• UPC: 051712148078
• Product Type: Modular fuse block
• Amperage Rating: 0-30A
• Interrupt rating: 200 kAIC
• Short-circuit rating: 200 kA
• Voltage rating: 600 Vac, 600 Vdc
• Material: Glass polyester
• Number of poles: Two-pole
• Wire size: #2 AWG Cu/Al
• Class: Class T
• Connection: Box lug
• Special features: CR
• Category: Circuit Protection
• Fuseholders: Fuseholders
• Current Rating (Amps): 30 A
• For Use With/Related Products: Class T Fuses
• Series: T600
• Fuse Type: Cartridge
• Packaging: Bulk
• Fuseholder Type: Block
• Number of Circuits: 2
• Mounting Type: Chassis Mount
• Voltage: 600V
• Fuse Size: 0.563" Dia x 1.5" L (14.3mm x 38.1mm)
• Termination Style: Box Lug
• Voltage Rating: 600 VAC/VDC
• Amperage: 0 to 30 A
• Number of Poles: 2 Pole
• Fuse Class: T
• Terminal Type: Box Lug
• Wire Size: 2 AWG Wire
• Fuse Length: 1-1/2 in
• Fuse Diameter: 0.56 in
• Fuse Series: JJS
• Interrupt Rating: 200 kA rms symmetrical
• Part No.: T60030-2CR
• Brand: Eaton Bussmann
• MPN: T60030-2CR
• Model: BUSSMANN T60030-2CR
• Country of Origin: United States
