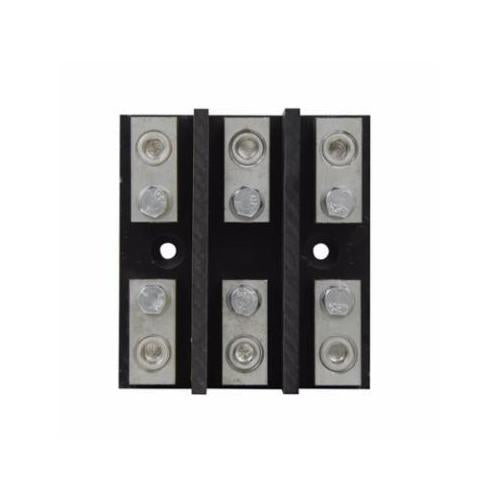

Bussmann T30200-3C Modular Open Fuse Block 300 VAC/VDC 3 Poles

Product Description

The Bussmann T30200-3C is a modular open fuse block designed for applications requiring reliable circuit protection. This fuse block operates at a voltage rating of 300 VAC/VDC and supports an amperage range of 101 to 200 A. It is suitable for use with JJN series cartridge fuses and is made from durable glass polyester for long-lasting performance.

• Modular design for easy installation
• Compatible with 250 kcmil copper or aluminum wire
• Chassis mount for secure attachment

Product Highlights

This fuse block features a small footprint that saves space in equipment setups while providing a 200 kA rms symmetrical interrupt rating.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Connection Type: Box Lug
• Dimensions: 4.87 in L x 4.46 in W x 2.375 in H
• Fuse Diameter: 0.88 in
• Fuse Length: 2.44 in
• Material: Glass Polyester
• Mounting Type: Chassis
• Series: T600
• Suitable For Use With: JJN Series Cartridge Fuse
• Type: Modular Open
• Voltage Rating: 300 VAC/VDC
• Amperage Rating: 101 to 200 A
• Class: T
• Wire Size: 250 kcmil
• Number of Poles: 3
