Product Description

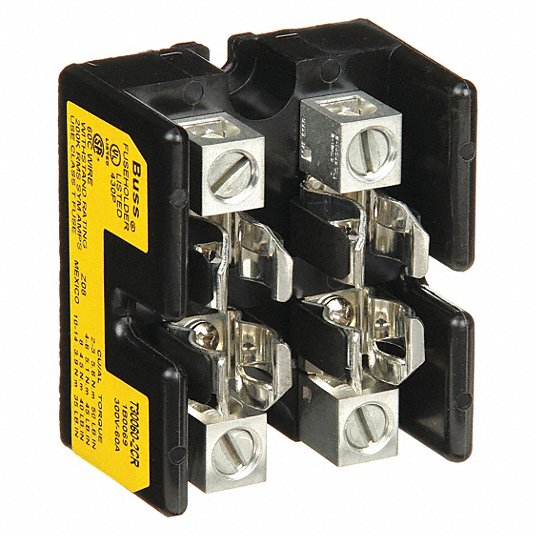

The BUSSMANN T30060-2CR is an Eaton Bussmann series Class T modular fuse block designed for control systems operating at 300 Vac/Vdc or less. It supports amperage ratings between 31-60 A and features a two-pole configuration with box lug connections. This fuse block offers a 200 kAIC interrupt rating and is constructed from glass polyester.
- RoHS Compliant
- UL Recognized
- CSA Certified
Product Highlights
This modular fuse block provides overcurrent protection in electrical feeders and branch circuits where space is limited.
Product Information
Standard Information
-
Brand: BUSSMANN
-
Manufacturer Part Number: T30060-2CR
-
Country of Origin: MX - Mexico
Technical Specifications
-
Product Name: Eaton Bussmann series Class T modular fuse block
-
Catalog Number: T30060-2CR
-
UPC: 051712147958
-
Product Length/Depth: 2.41 in
-
Product Height: 2.75 in
-
Product Width: 1.63 in
-
Compliances: RoHS Compliant
-
Certifications: UL Recognized CSA Certified
-
Product Type: Modular fuse block
-
Amperage Rating: 31-60A
-
Interrupt rating: 200 kAIC
-
Short-circuit rating: 200 kA
-
Voltage rating: 300 Vac/dc
-
Material: Glass polyester
-
Number of poles: Two-pole
-
Wire size: #2 AWG Cu/Al
-
Class: Class T
-
Connection: Box lug
-
Special features: CR
-
Series: T600
-
Terminal Type: Box Lug
-
Wire Gauge: 2 AWG Wire
-
Mounting Type: Chassis Mount
-
Fuse Length: 0.88 in
-
Fuse Diameter: 0.56 in
-
Fuse Series: JJN Series Cartridge Fuse
-
Fits Fuse Type: Industrial
-
Fuse UL Class: T
-
Voltage: 300V AC/DC
-
For Fuse Size: 7/8 in L x 9/16 in dia
-
Compatible Fuse Series: A3T, JJN, JLLN, TJN, Series T
-
Indicating: Nonindicating
-
Rejection: Nonrejection
-
Fuse Block Design: Open
-
Wire Range: 14 to 2 AWG
-
Mounting Style: Bolt-Down
-
Body Material: Glass Polyester
-
Connector Type: Box Lug
-
Fuse Amps: 31-60A
-
Rated Voltage: 300V ac/dc
-
No. of Poles: 2
-
AC Voltage Rating: 300 V
-
AC: AC
-
Current - Maximum: 60
-
DC Voltage Rating: 300 V
-
DC: DC
-
Compatible Fuse Class or Type: Class T
-
Compatible Fuse Diameter: 9/16 in
-
Compatible Fuse Length: 7/8 in
-
Fuse Block Terminal Type: Box Lug
-
Fuse Block Mounting Style: Bolt-Down
-
Fuse Block Style: Non-Rejection
-
Standards: CE; CSA Certified; RoHS; UL Listed
-
Visual Indication: Non-Indicating
-
Wire Size - Maximum: 2 AWG
-
Wire Size - Minimum: 14 AWG
-
UNSPSC: 39121411
