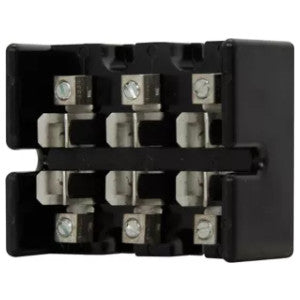

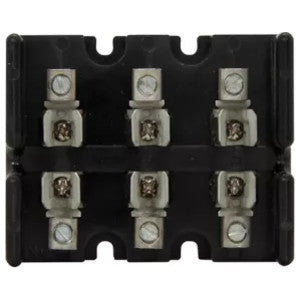

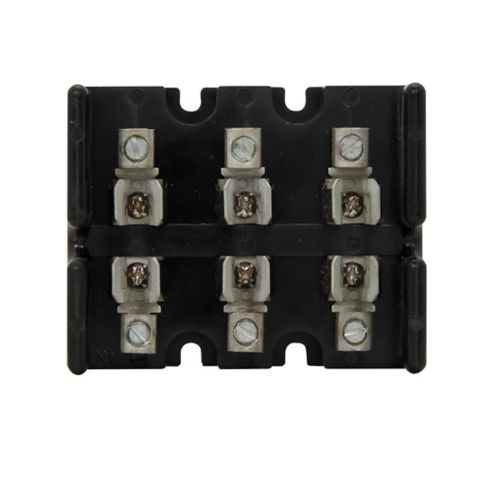

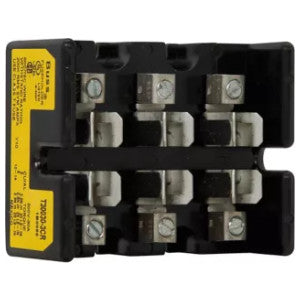

Bussmann T30030-3CR Class T Modular Fuse Block 0-30 A

Product Description

The Eaton BUSSMANN T30030-3CR series Class T modular fuse block is designed for individual control circuits rated for 300 Vac/Vdc or less, with an amperage range of 0-30 A. It is a high-speed, high-current protection device used in power distribution systems, UPS units and battery banks. It has a 200 kAIC short-circuit rating.

• RoHS Compliant
• UL Recognized
• CSA Certified

Product Highlights

Class T fuse blocks are high-speed, high-current protection devices with a compact footprint and high interrupting ratings.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T30030-3CR
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series Class T modular fuse block
• Catalog Number: T30030-3CR
• UPC: 051712147927
• EAN: 5027590404471
• Compliances: RoHS Compliant
• Product Type: Modular fuse block
• Amperage Rating: 0-30A
• Interrupt rating: 200 kAIC
• Short-circuit rating: 200 kA
• Voltage rating: 300 Vac/dc
• Material: Glass polyester
• Number of poles: Three-pole
• Wire size: #2 AWG Cu/Al
• Class: Class T
• Connection: Box lug
• Special features: CR
• Brand: BUSSMANN
• AC Voltage Rating: 300 V AC
• Body Material: Fiberglass Reinforced Thermoplastic
• Compatible Fuse Series: A3T, JJN, JLLN, TJN
• Current - Maximum: 30 A
• Current - Minimum: 0 A
• DC Voltage Rating: 300 V DC
• Features: Space Saver
• Compatible Fuse Class or Type: Class T
• Compatible Fuse Diameter: 13/32 in
• Compatible Fuse Length: 7/8 in
• Fuse Block Terminal Type: Box Lug
• Fuse Block Design: Open
• Fuse Block Mounting Style: Bolt-Down
• Fuse Block Style: Non-Rejection
• Overall Height: 1.63 in
• Overall Length: 2.75 in
• Overall Width: 3.44 in
• Standards: CSA Certified; UL Listed
• Visual Indication: Non-Indicating
• Wire Size - Maximum: 6 AWG
• Wire Size - Minimum: 14 AWG
• UNSPSC: 39121411
• Fuseholders: Fuseholders
• Current Rating (Amps): 30 A
• For Use With/Related Products: Class T Fuses
• Series: T300
• Fuse Type: Cartridge
• Fuseholder Type: Block
• Part Status: Active
• Number of Circuits: 3
• Mounting Type: Chassis Mount
• Voltage: 300V
• Termination Style: Box Lug
• ECCN: EAR99
• Application: 300 Vac/Vdc or Less Control Systems, 300 Vac/Vdc or Less Individual Control Circuits
• AWG Range: #2 AWG
• Fuse Interrupt Rating: 200 kAIC
• Rated Voltage: 300V ac/dc
• Shape: Rectangular
• Fuse Amps: 0-30A
• Fuse Size: 0.394" Dia x 0.875" L (10mm x 22.23mm)
