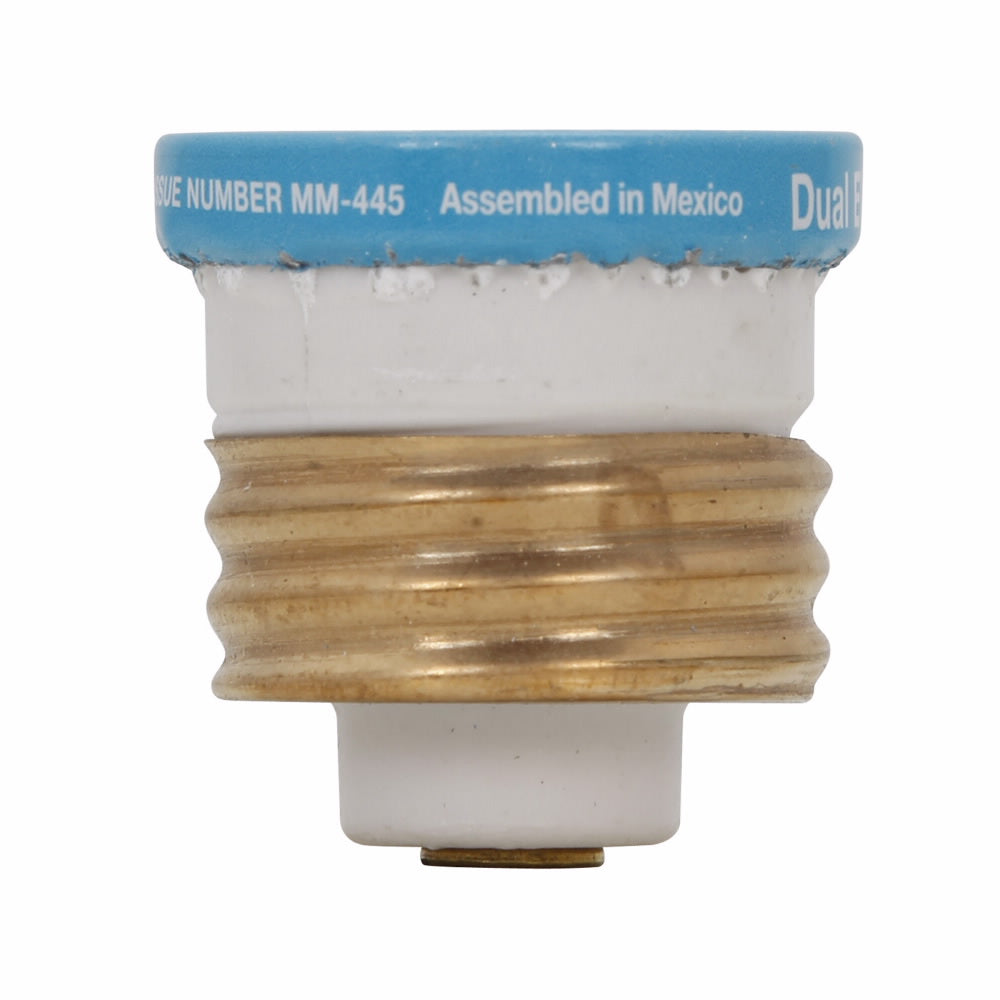

Bussmann T-6-1/4 Plug Fuse Dual Element Plug Fuse 6-1/4 Amp 125V

Product Description

The BUSSMANN T-6-1/4 Plug Fuse is a dual element plug fuse rated at 6-1/4 Amp and 125V. It is designed for circuits where motors frequently turn on and off. It features a simple link element for short circuits and dangerous overloads, plus a series connected element which lets the harmless overload starting currents of motors pass without opening.

• Time delay
• Heavy-duty
• Use to protect critical motor circuits or motors that cycle On/Off frequently

Product Highlights

This industrial-strength, dual-element construction fuse provides short circuit and overload protection. It is suitable for box cover units protecting small motors.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T-6-1/4

Technical Specifications

• Amperage: 6-1/4 Amp
• Applications: Box Cover Units for Small Motor Overload Protection
• Element: Dual
• Interrupt Rating: 10 kAIC
• Material: Brass
• Mounting Type: Threaded
• Standard: CE,CSA,UL
• Type: Time Delay
• Voltage: 125 Volt
• Brand: Bussmann
• Sub Brand: Bussmann Series
• Product Type: Plug fuse
• Amperage Rating: 6-1/4A
• Voltage Rating: 125 V
• Base: Edison
• Mounting method: Threaded
• Special features: Heavy-duty
• Current Rating: 6.25 A
• Fuse Type: Low Voltage, Time Delay
• Body Material: Plastic
