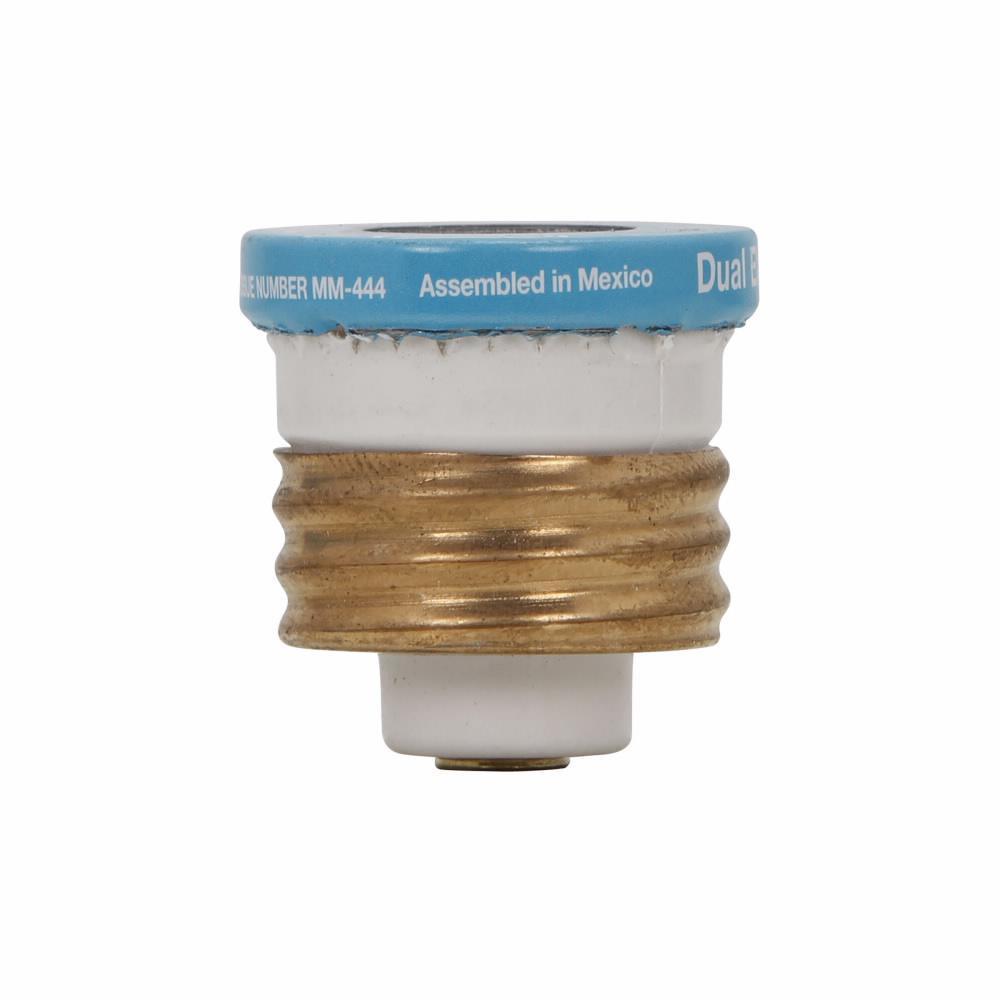

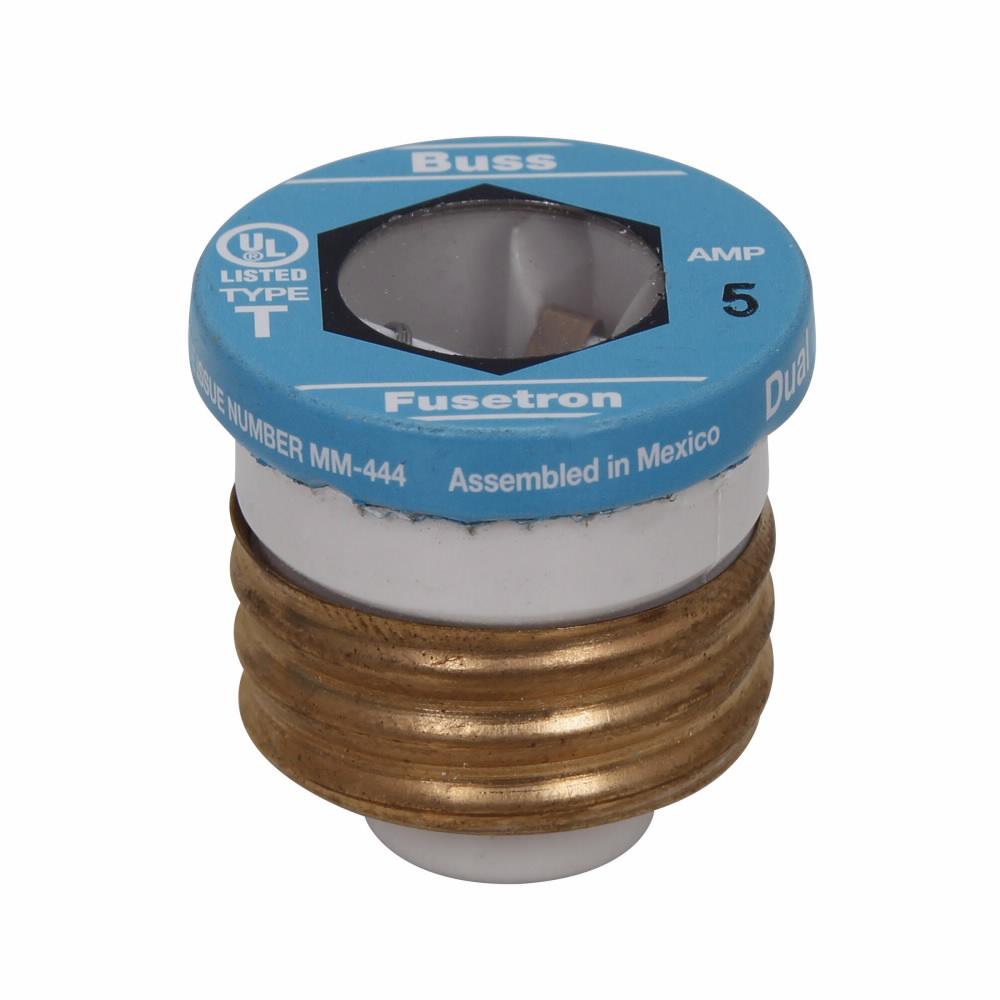

Bussmann T-5 Fusetron Plug Fuse 5 A

Product Description

The BUSSMANN T-5 Fusetron™ Plug Fuse is a heavy-duty, low-voltage, time-delay fuse. This non-indicating fuse is rated at 5 A and 125 VAC, with a 10 kAIC interrupt rating and a 10 kA short circuit current rating. It features a stud terminal, threaded mount, and Edison base with a round body type, and a dual element construction with a plastic body and brass thread.

• Protects critical motor circuits or motors that cycle on/off frequently.
• Features brass threads with plastic body.
• Offers dual element construction for industrial/commercial grade use.

Product Highlights

The T-5 fuse provides superior short circuit and overload protection with more time delay than medium-duty fuses, making it suitable for industrial motors and critical residential circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T-5

Technical Specifications

• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Plastic Body/Brass Thread
• Mounting Type: Threaded
• Series: T Series
• Short Circuit Current Rating: 10 kA
• Terminal Type: Stud
• Type: Heavy Duty Low Voltage Time Delay
• Amperage Rating: 5 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kAIC
• Body Type: Edison Base/Round
• Product Type: Plug fuse
• Application: Box cover units for small motor overload protection
• Base: Edison
• Special features: Heavy-duty
• Speed: Time Delay / Slow Blow
• Class: Type T
• Shape: Plug Fuses
• Approvals: CE, UL, CSA
• Brand: Bussmann
• Voltage: 125 Volts
• Specification Met: CE, CSA, UL
