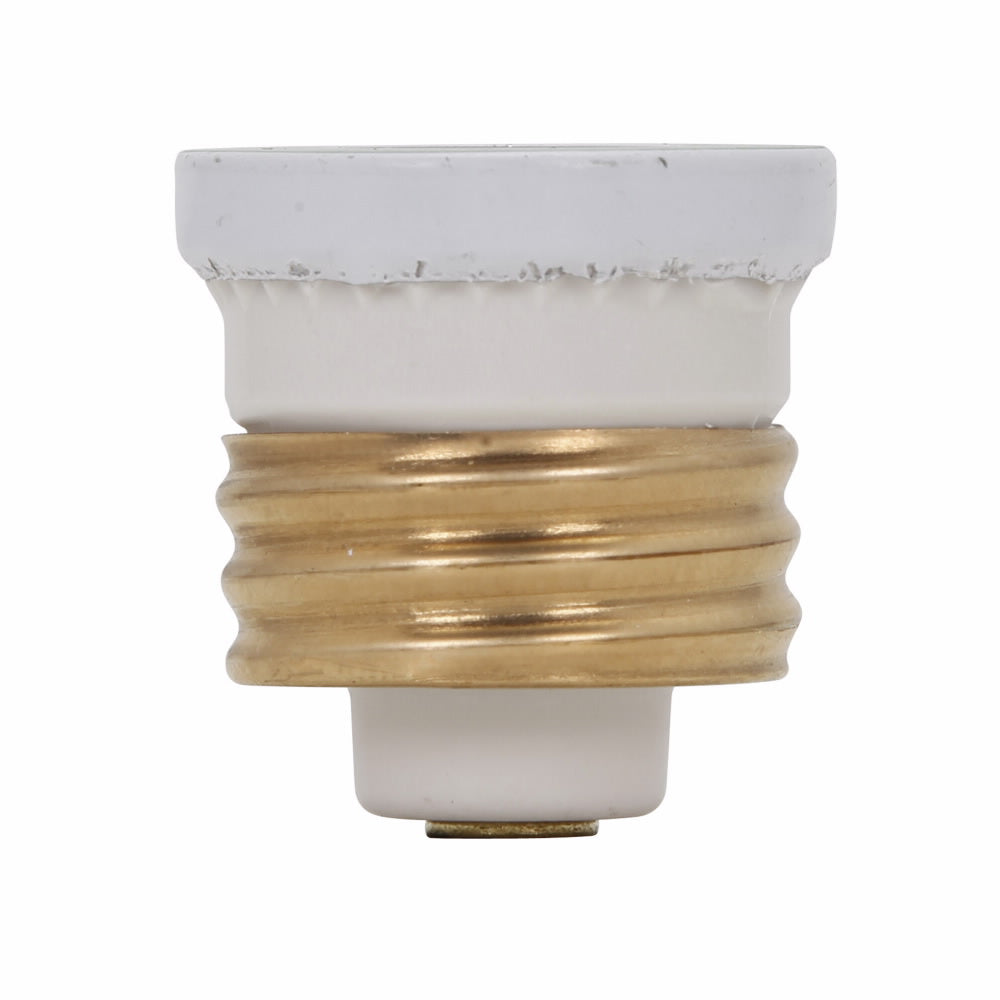

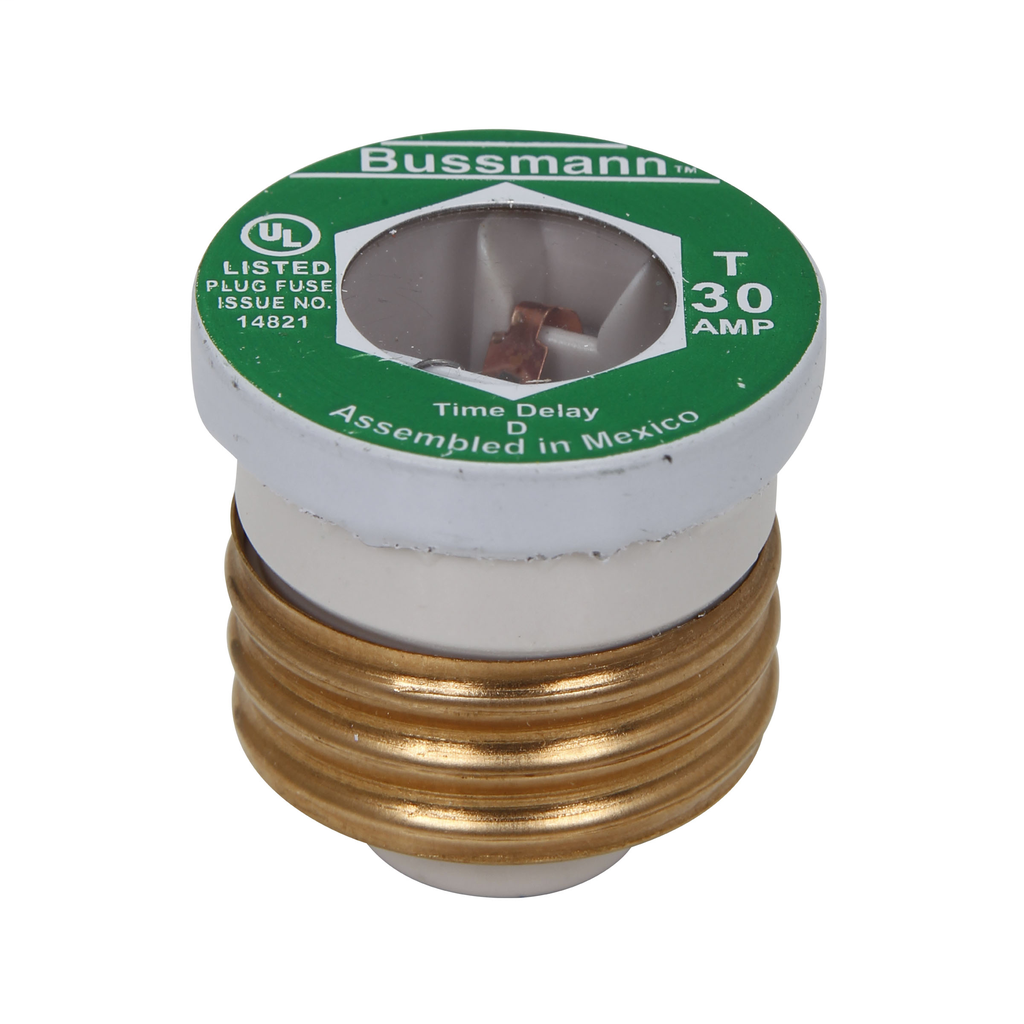

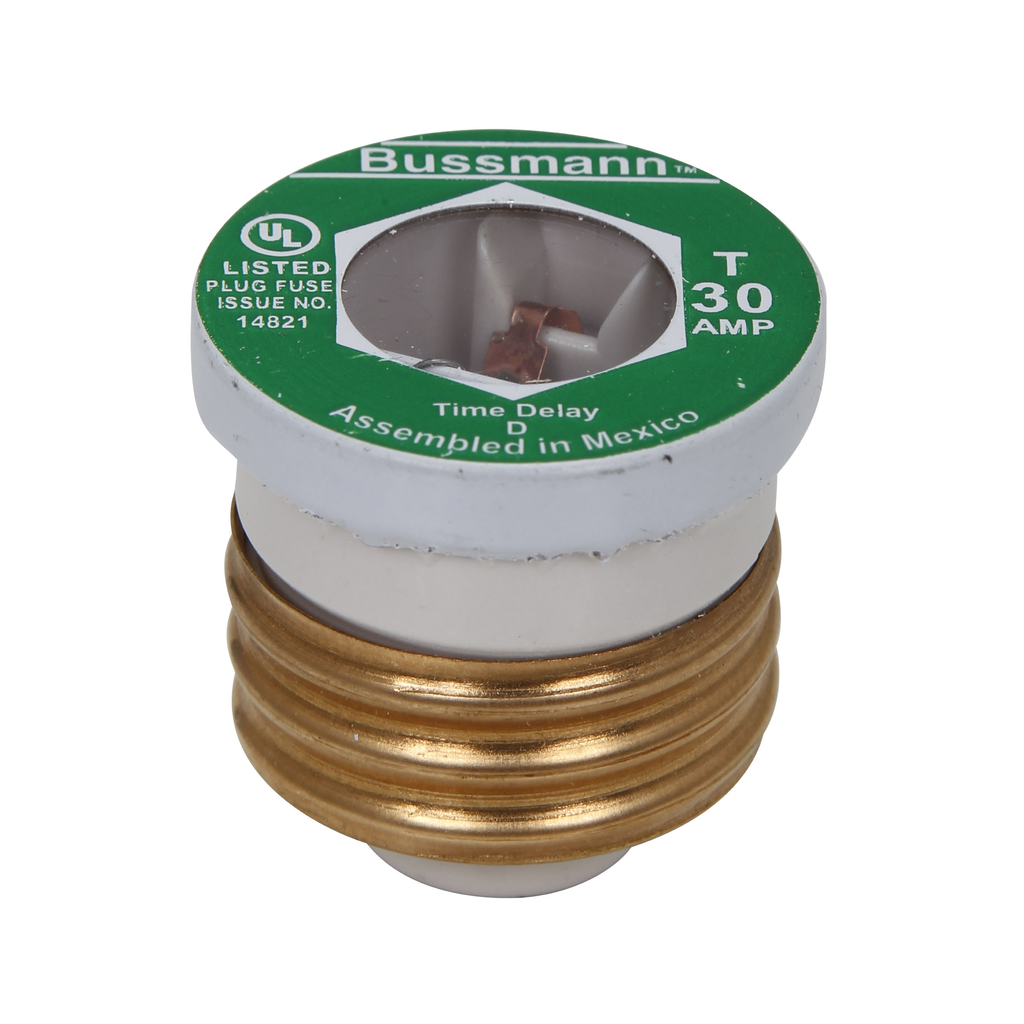

Bussmann T-30 125vac 30amp Time-Delay Dual-Element Plug Fuse, Edison Base

Product Description

The Bussmann T-30 is a time-delay, dual-element Edison fuse. It is designed for box cover units, providing overload protection for small motors. This fuse is suitable for circuits with frequent motor cycling, such as those found in air conditioners and pumps. It features a heavy-duty construction for enhanced durability.

• Time-Delay
• Dual-Element
• Amperage: 30 Amp

Product Highlights

The Bussmann T-30 fuse is ideal for protecting critical motor circuits with its time-delay and dual-element design.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T-30
• Country of Origin: United States

Technical Specifications

• Amperage: 30 Amp
• Applications: Box Cover Units for Small Motor Overload Protection
• Body Material: Plastic
• Element: Dual
• Interrupt Rating: 10 kAIC
• Material: Brass
• Mounting Type: Threaded
• Standard: CE,CSA,UL
• Type: Time Delay
• Voltage: 125 Volt
• Brand: Bussmann
• Sub Brand: Bussmann Series
• Product UPC: 05171210124
• Height: 1.21 in
• Length: 1.17 Inch
• Width: 1.17 in
• AC Adapter Current: 30 Amps
• Speed: Time Delay / Slow Blow
• Class: Type T
• Shape: Plug Fuses
• Approvals: CE, UL, CSA
• Number in Pack: 1
• Style: FUSE
• Maximum Amperage (A): 30
• Maximum Current: 30 Amps
• Current Rating: 30 Amps
• Voltage rating: 125 Vac
