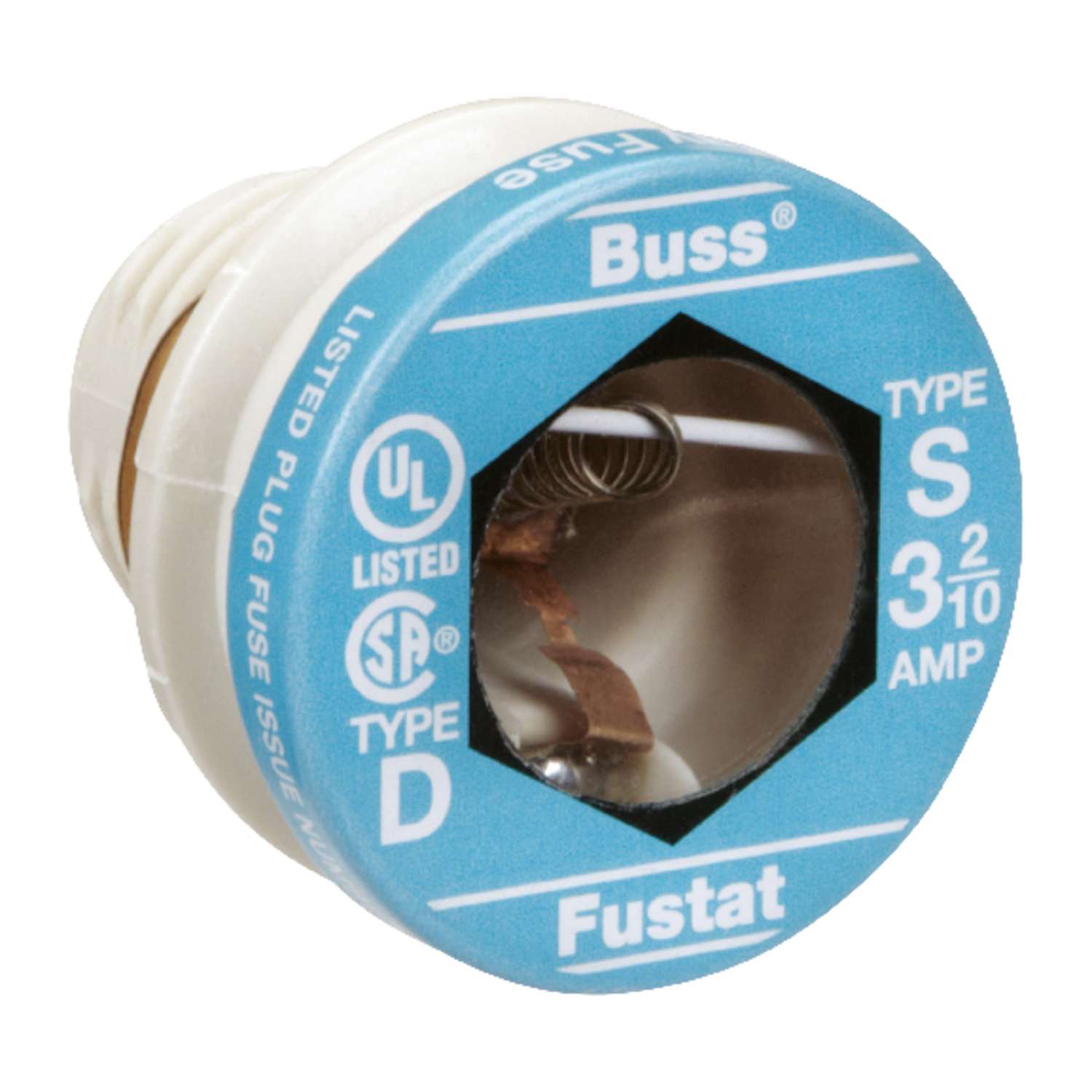

Bussmann T-3-2/10 plug fuse 3.2a

Product Description

The BUSSMANN T-3-2/10 is a dual-element plug fuse from the T series. This 3.2A time-delay fuse is designed for critical circuit protection. It is suitable for swamp coolers, air conditioners, furnace blowers, swimming pool pumps, deep freezers, and other circuits where motors cycle on and off frequently.

• Time Delay / Slow Blow
• 125 Vac voltage rating
• Edison base design for screw-in installation

Product Highlights

Protects motor circuits with time-delay functionality. Features a clear window to easily see if fuse is blown.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T-3-2/10
• Country of Origin: Mexico

Technical Specifications

• Ampere: 3.2 A
• Voltage rating: 125 VAC
• Interrupt rating: 10kA
• Speed: Time Delay / Slow Blow
• Class: Type T
• Shape: Plug Fuses
• Approvals: CE, UL, CSA
• Dimensions: 1.16" Dia x 1.25" L (29.46x31.75mm)
• AC Adapter Current: 3.2 Amps
• Brand: Bussmann
• Voltage: 125 Volts
• Material: Copper
• Edison base size: Edison base size
• Quantity per card: 1
• Maximum Current: 3.2 Amps
• Mounting Type: Through-Hole Mount
• Current Rating: 3.2 A
• Specification Met: CSA, UL, iec
• Element Type: Dual
• Rejection/Non-Rejection: Non-Rejection
• Body Material: Ceramic
• Pack quantity: 1
• Amperage: 3.2 amp
