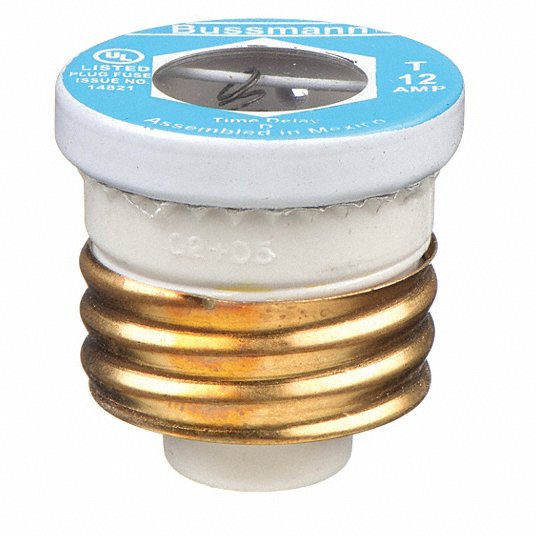

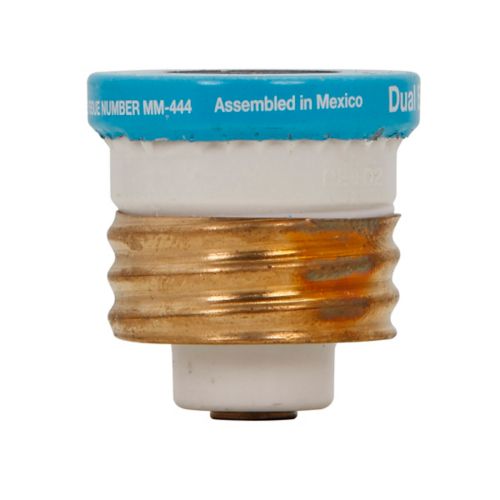

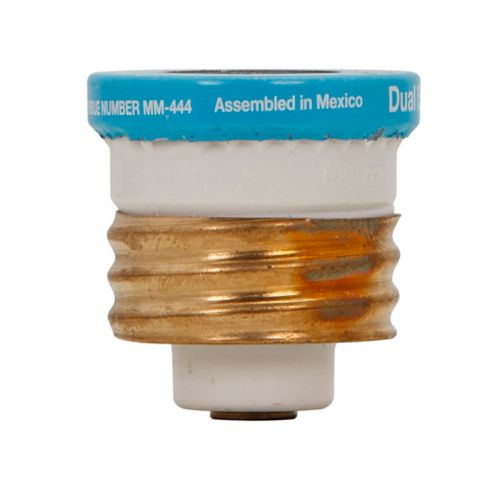

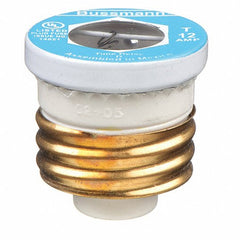

Bussmann T-12 12A Time Delay Branch Circuit Fuse 4PK Type T

Product Description

The BUSSMANN T-12 is a 12A time delay branch circuit fuse, designed for heavy-duty use in critical circuit protection. It is suitable for air conditioners, furnace blower motors, swimming pool pumps, and deep freezers. It is also ideal for commercial applications where motors frequently cycle on and off.

• Heavy duty time-delay plug fuse
• Use to protect critical motor circuits or motors that cycle on/off frequently
• Edison base size

Product Highlights

This fuse provides superior short-circuit and overload protection, with more time-delay than medium-duty fuses, ensuring reliable performance for motors and critical residential circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T-12
• Country of Origin: China

Technical Specifications

• Brand: Bussmann
• Manufacturer: BUSSMANN
• MPN: T-12
• Product Type: Plug fuse
• AC Adapter Current: 12 Amps
• Voltage: 125 Volts
• Material: Brass threads Plastic body
• Maximum Current: 12 Amps
• Mounting Type: Threaded
• Current Rating: 12 Amps
• Material Type: Brass threads Plastic body
• Specification Met: UL
• Ampere: 12 A
• Voltage rating: 125 Vac
• Interrupt rating: 10kA
• Speed: Time Delay / Slow Blow
• Class: Type T
• Shape: Plug Fuses
• Approvals: CE, UL, CSA
• Product Name: Eaton Bussmann series Type T plug fuse
• Catalog Number: T-12
• UPC: 051712211208
• Amperage Rating: 12 A
• Application: Box cover units for small motor overload protection
• Base: Edison
• Mounting method: Threaded
• Special features: Heavy-duty
• Type: Time delay
• Model: BP/T-12
• AC Voltage Rating: 125 V
• Body Material: Ceramic
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Plug
• Interrupt Rating - AC: 10 kA
• Standards: CE; CSA Class 1423-01; UL 248-11 Guide JFHR
