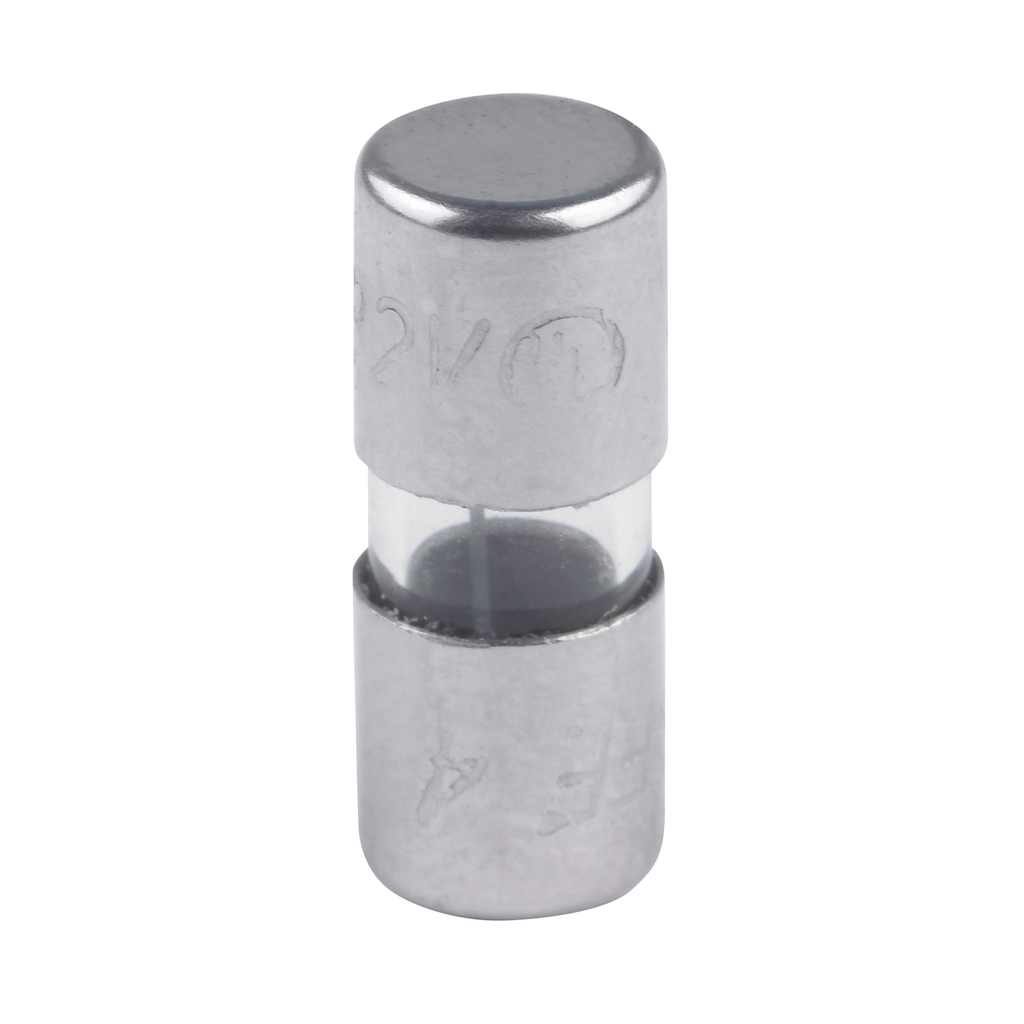

Bussmann SFE-4 Series SFE-4 4 Amp 32 Volt Small Dimension Fuse

Product Description

The BUSSMANN SFE-4 is a fast-acting automotive fuse from the Eaton SFE series, rated for 4A and up to 32V. This fuse is designed as a replacement for older automotive circuit applications. It features visual indicating glass tubing and is manufactured to meet SAE specifications. The physical size varies with the electrical rating to prevent over-fusing.

• Fast-acting fuse
• Visual indicating glass tubing
• Designed for automotive circuits

Product Highlights

The BUSSMANN SFE-4 is a reliable fast-acting fuse for automotive applications, offering circuit protection with a visual indication.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: SFE-4

Technical Specifications

• GTIN: 00051712729802
• Size: 1/4 In Diameter X 5/8 In Length
• Brand: Bussmann
• Voltage Rating: 32 Volt
• Amperage Rating: 4 Amp
• End Type: Ferrule
• Material: Visual indicating glass tubing
• Standard: UL
• Sub Brand: Bussmann Series
• Product UPC: 05171272980
• 12-Digit UPC: 051712729802
• Applications: Automotive Circuits
• TC Connection: Ferrule end x ferrule end
• Connection Type: Ferrule
• Body Size: 1/4 in Dia x 5/8 in L
• Color: Clear
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Clip/Holder
• Rejection/Non-Rejection: Non-Rejection
• Series: SFE
• Terminal Type: Ferrule
• Interrupt Rating: 10 kA
• Body Type: Cylindrical
• MPN: SFE-4
• Fuse Type: Fast-acting
• VAC: 32
• Part Number: SFE 046
• Mfg Cat No: SFE-4
• Class: Automotive
