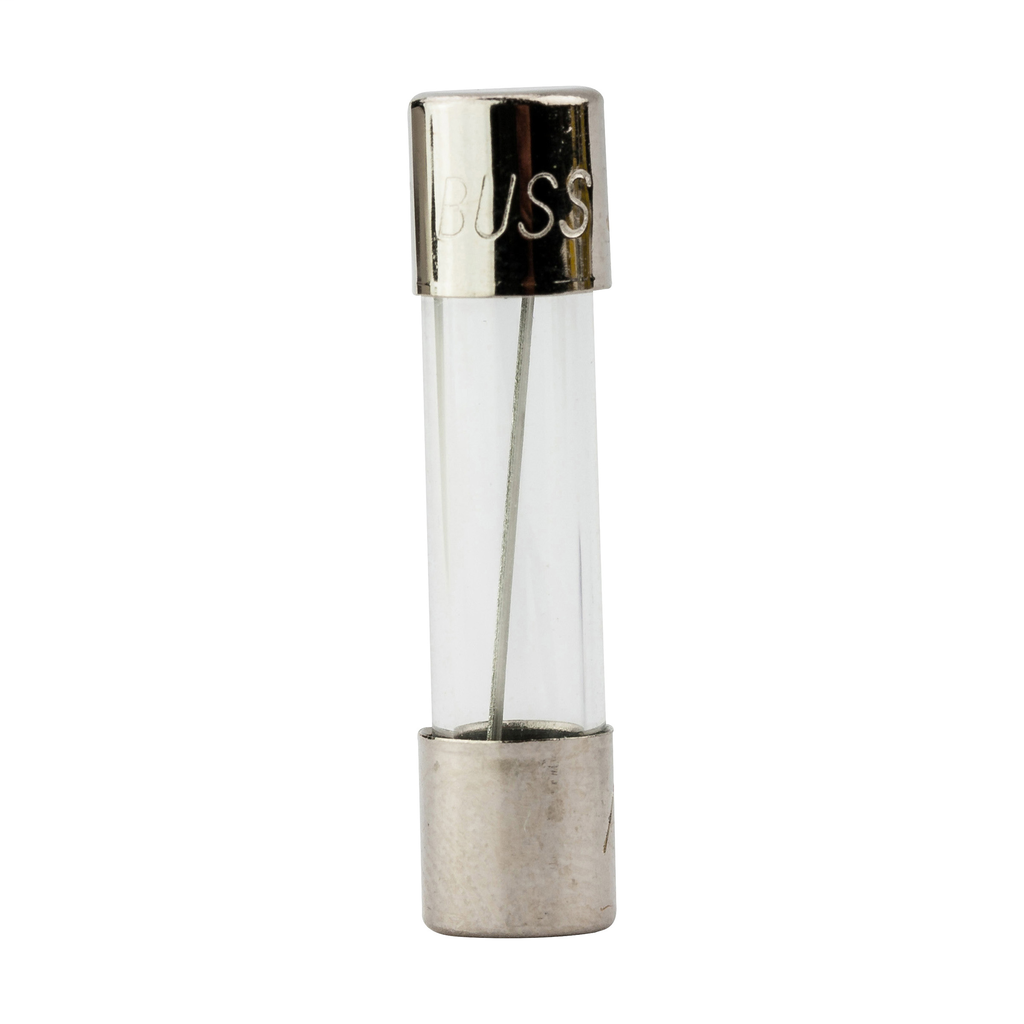

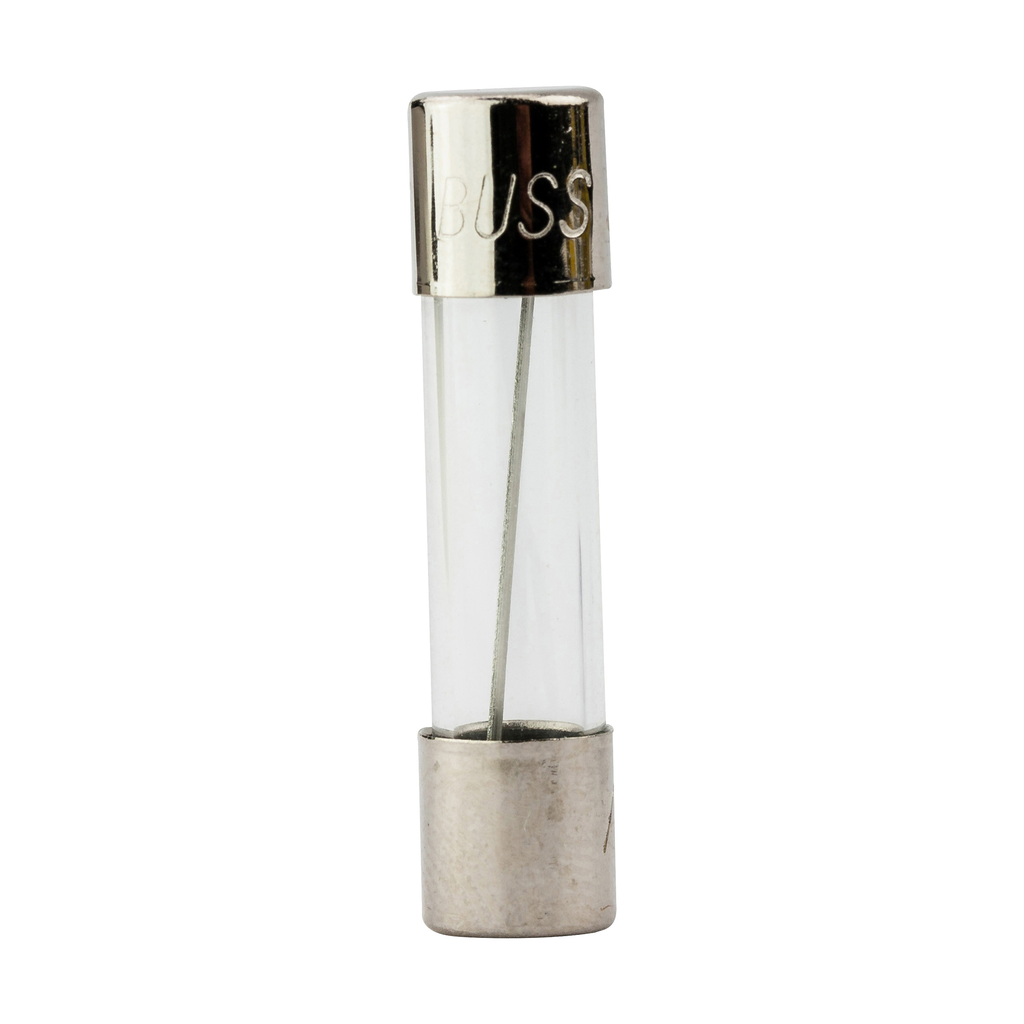

Bussmann SFE-14 SFE 14 Amp Glass Fuse - (5 in Tin)

Product Description

The Bussmann SFE-14 is a SFE 14 Amp glass fuse. This fast-acting automotive fuse is rated for 32V or less. It features visual indicating glass tubing and ferrule end connections, suitable for automotive circuits. Commonly used in electronic circuits and for mounting in in-line holders and 1/4 in clips.

• Fast-acting
• Automotive fuse
• Visual indicating glass tubing

Product Highlights

The Bussmann SFE-14 is a fast-acting automotive fuse with a 14 Amp rating and 32V capacity, designed for automotive and electronic circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: SFE-14
• Country of Origin: MUL

Technical Specifications

• Item Model Number: SFE-14
• Size: 1/4 In Diameter X 1-1/16 In Length
• Type: Electronic
• Brand: Bussmann
• Width: .25 in
• Height: 1/4 Inch
• Length: 1-1/4 Inch
• Voltage: 32 Volt
• Amperage: 14 Amp
• End Type: Ferrule
• Material: Visual indicating glass tubing
• Standard: UL
• Sub Brand: Bussmann Series
• Applications: Automotive Circuits
• TC Connection: Ferrule end x ferrule end
• Connection Type: Ferrule
• Product Name: Eaton Bussmann series SFE automotive fast-acting glass fuse
• Catalog Number: SFE-14
• UPC: 051712729840
• Product Type: Automotive fast-acting glass fuse
• Amperage Rating: 14 A
• Fuse indicator: Non-indicating
• Application: Electronic circuits
• Class: Automotive
• Series: SFE
• Part Number: SFE 058
• Mfg Cat No: SFE-14
• VAC: 32
• Amps: 14 amp
• Manufacturer: Eaton
• Ampere: 14A
• Voltage Rating: 32V
• Interrupt Rating: 10 kA IR
• Speed: Fast-Acting
• Approvals: UL
• Alternate Catalog Number: SFE-14
• Terminal Type: Ferrule
• Body Type: Cylindrical
