Bussmann SC-60 Series SC-60 Class G Fuse 60 A

Product Description

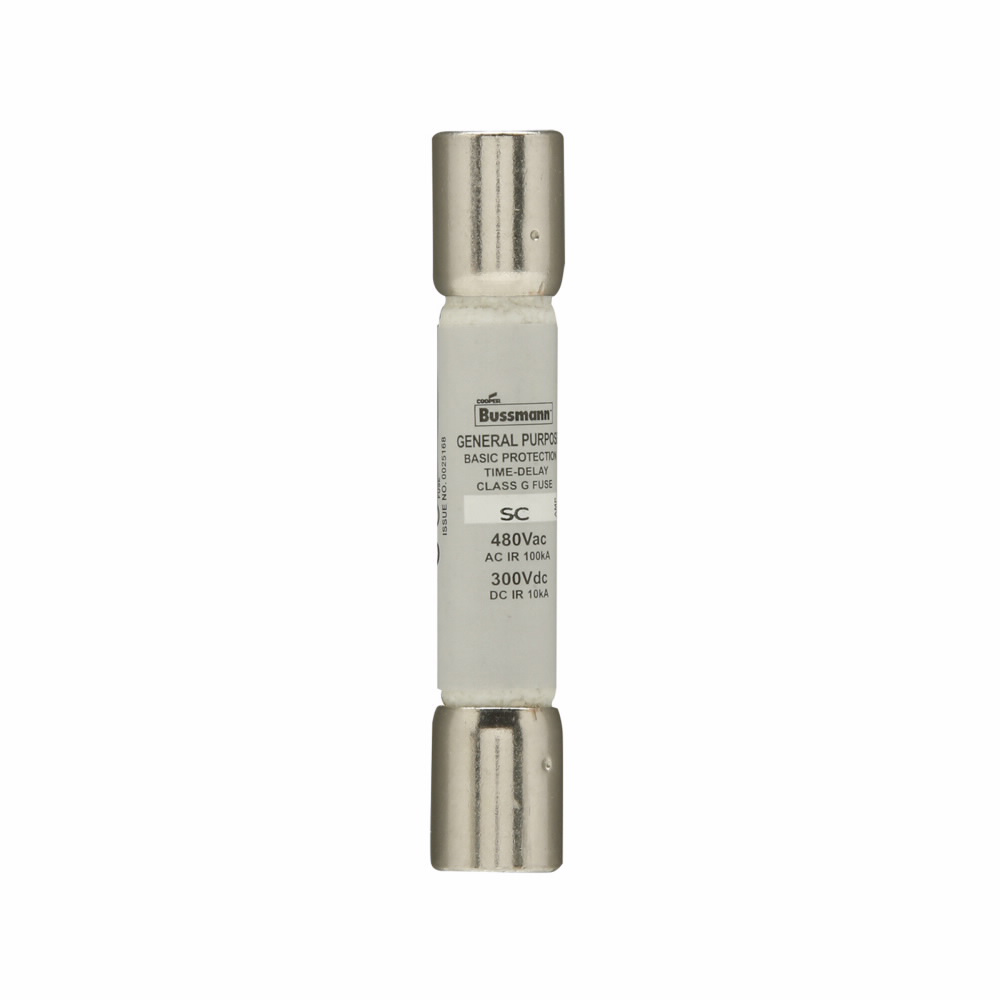

The Eaton BUSSMANN SC-60 is a current-limiting time-delay Class G fuse. This non-indicating fuse features a ferrule end x ferrule end connection. It is rated for 480 Vac and 300 Vdc with an interrupting rating of 100 kAIC at 480 Vac and 10 kAIC at 300 Vdc. Suitable for fusible branch panelboards and HVAC branch circuit protection.

• Current-limiting time-delay fuse
• Rejection style
• Non-indicating
• Ferrule end x ferrule end

Product Highlights

The BUSSMANN SC-60 fuse provides reliable overcurrent protection with time-delay functionality.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: SC-60
• Country of Origin: China

Technical Specifications

• Type: Current Limiting,Time Delay
• Brand: Bussmann
• Class: G
• Voltage: 300 Volt
• Amperage: 60 Amp
• End Type: Ferrule
• Standard: CE,CSA,UL 248-5
• Sub Brand: Bussmann Series
• Applications: Fusible Branch Panelboards, HVAC Branch Circuit Protection
• Connection Type: Ferrule
• Manufacturer: BUSSMANN
• Voltage Rating: 480 Vac; 300 Vdc
• Interrupt Rating: 100000 Amp (RMS Symmetrical); 10000 Amp (DC)
• Special Features: Rejection Style
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Holder
• Response Time: 12 s
• Series: SC Series
• Terminal Type: Ferrule
• AC Voltage Rating: 480 V AC
• Body Material: Melamine
• Compatible Fuse Block Series: G300
• Current Rating: 60 A
• DC Voltage Rating: 300 V DC
• Element: Dual
• Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: G
• Fuse Diameter: 13/32 in
• Fuse Diameter x Length: 13/32 in x 2-1/4 in
• Fuse Length: 2-1/4 in
• Interrupt Rating - AC: 100 kA
• Interrupt Rating - DC: 10 kA
• Speed: Time-Delay
• Standards: CE; CSA Guide 1422-01; UL 248-5 Guide JDDZ
• Visual Indication: Non-Indicating
