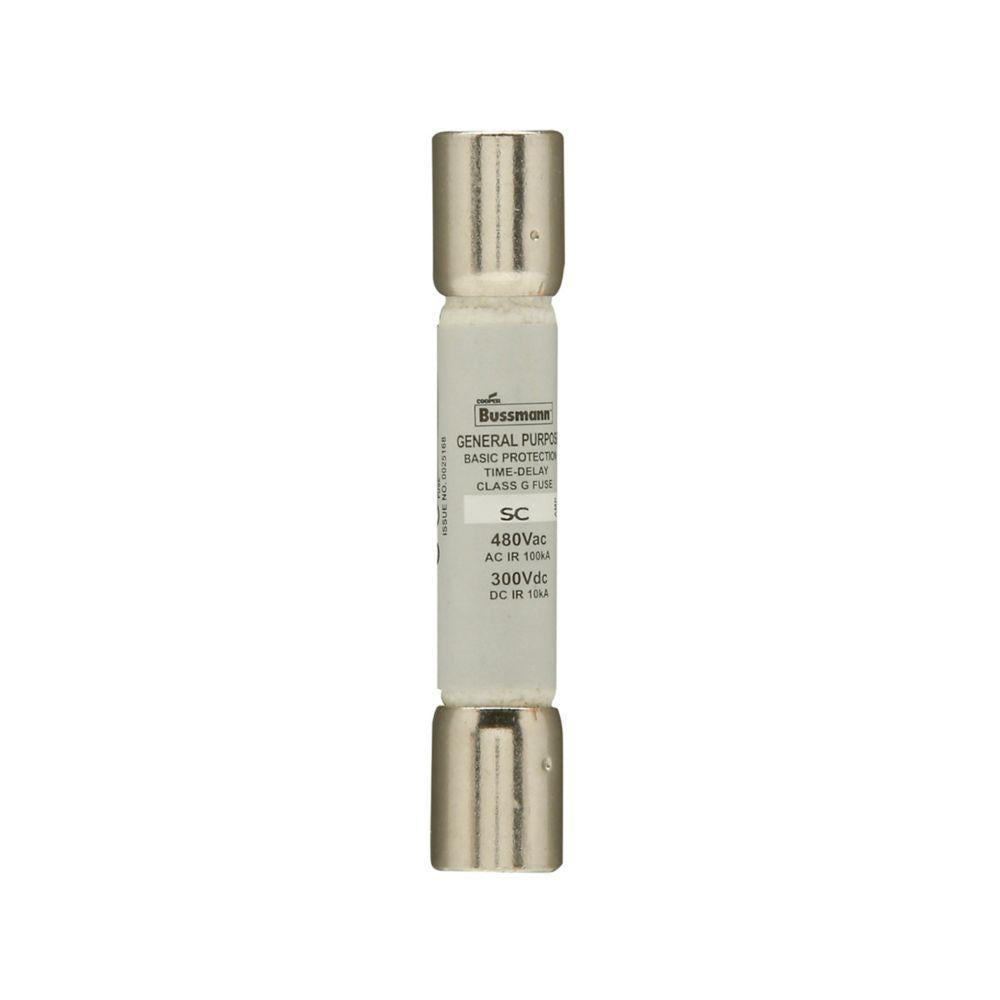

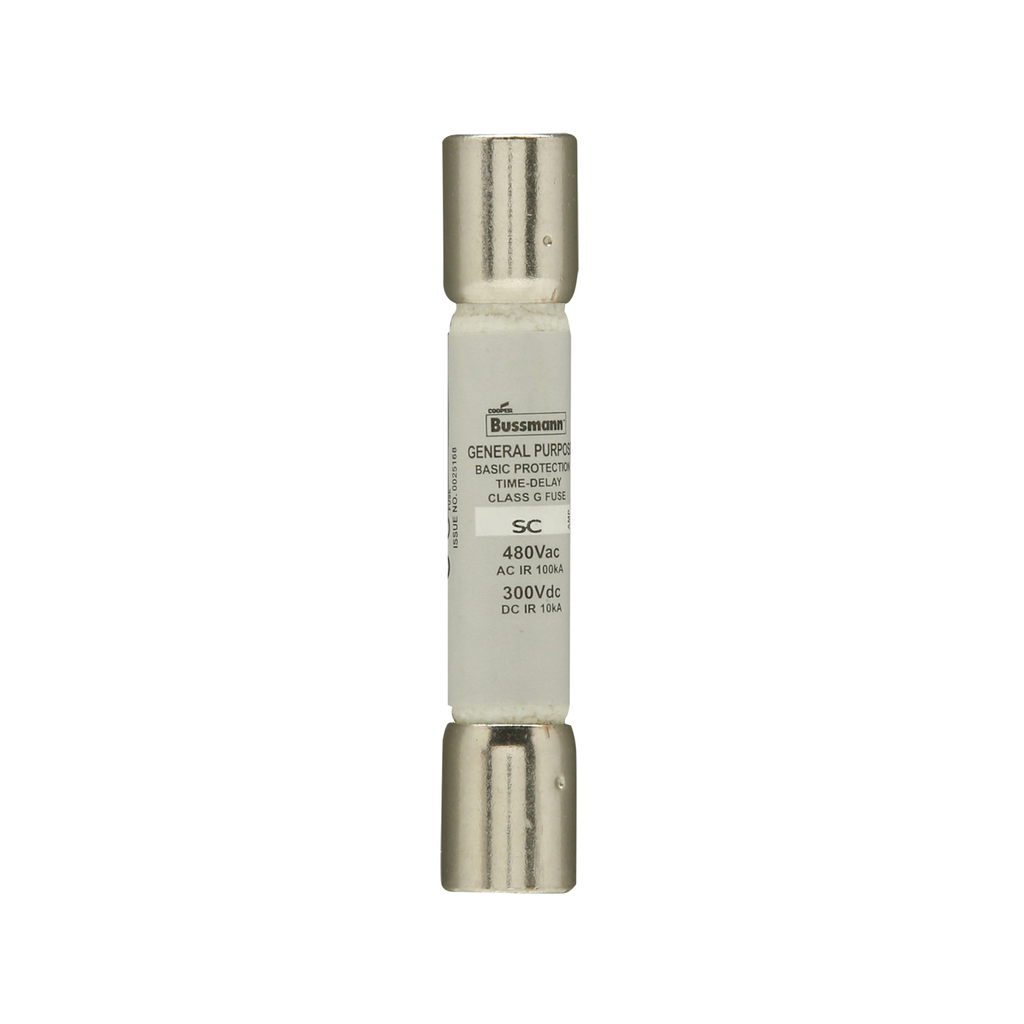

Bussmann SC-50 Class G Fuse 50A

Product Description

The Bussmann SC-50 Class G Fuse is designed for current-limiting and time-delay applications. It features a rating of fifty Amperes and can be used in both 480 Volt AC and 300 Volt DC circuits. This fuse offers 10 kA interrupt protection at 300 VDC and 100 kA at 480 VAC. It has non-indicating characteristics and employs a ferrule end connection type.

• Current-limiting time-delay fuse
• Designed for fusible branch panelboards and HVAC protection
• Class G rating ensures compatibility with a wide range of applications

Product Highlights

This fuse provides essential protection for electrical circuits by preventing damage during overload conditions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: SC-50
• Type: Current Limiting, Time Delay
• Voltage Rating: 480 VAC / 300 VDC
• Amperage Rating: 50 A
• Interrupt Rating: 10/100 kA
• Body Type: Cartridge
• Diameter: 0.41 Inch
• Length: 2.25 Inches
• Mounting Type: Holder
• Response Time: 12 Seconds
