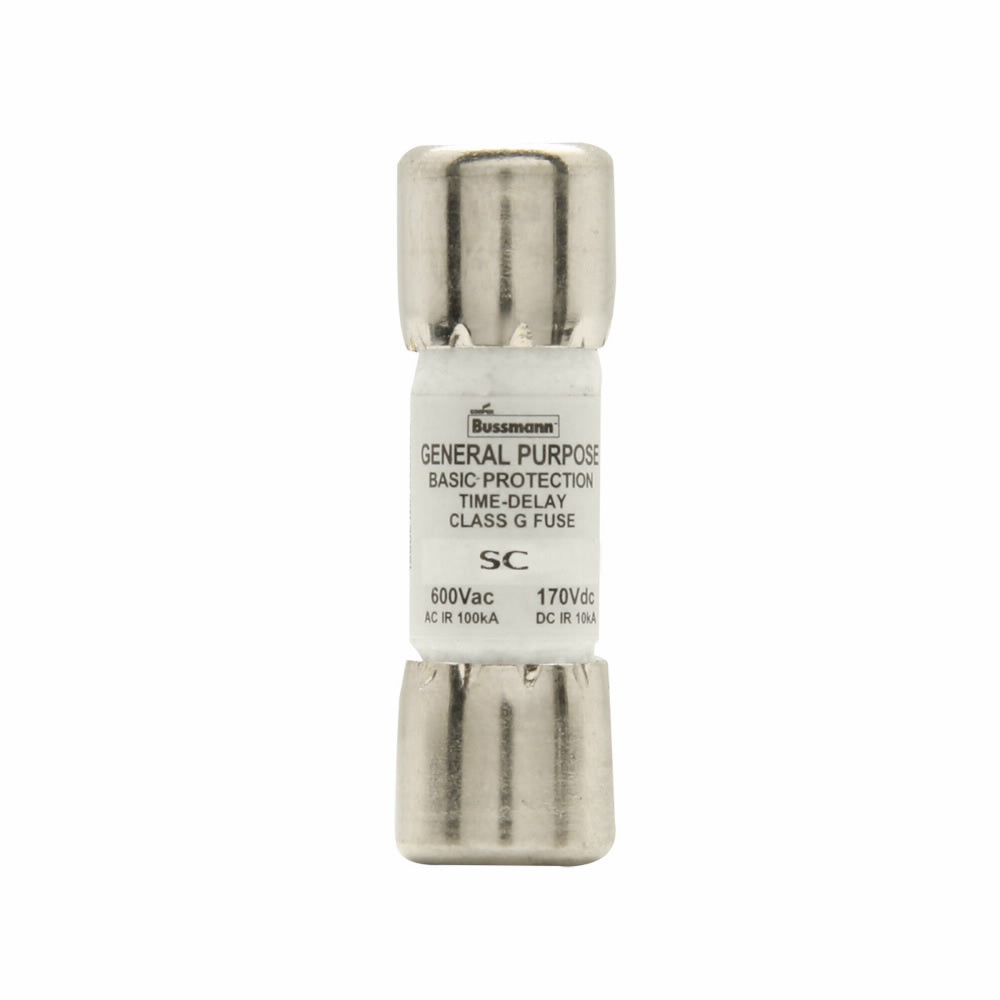

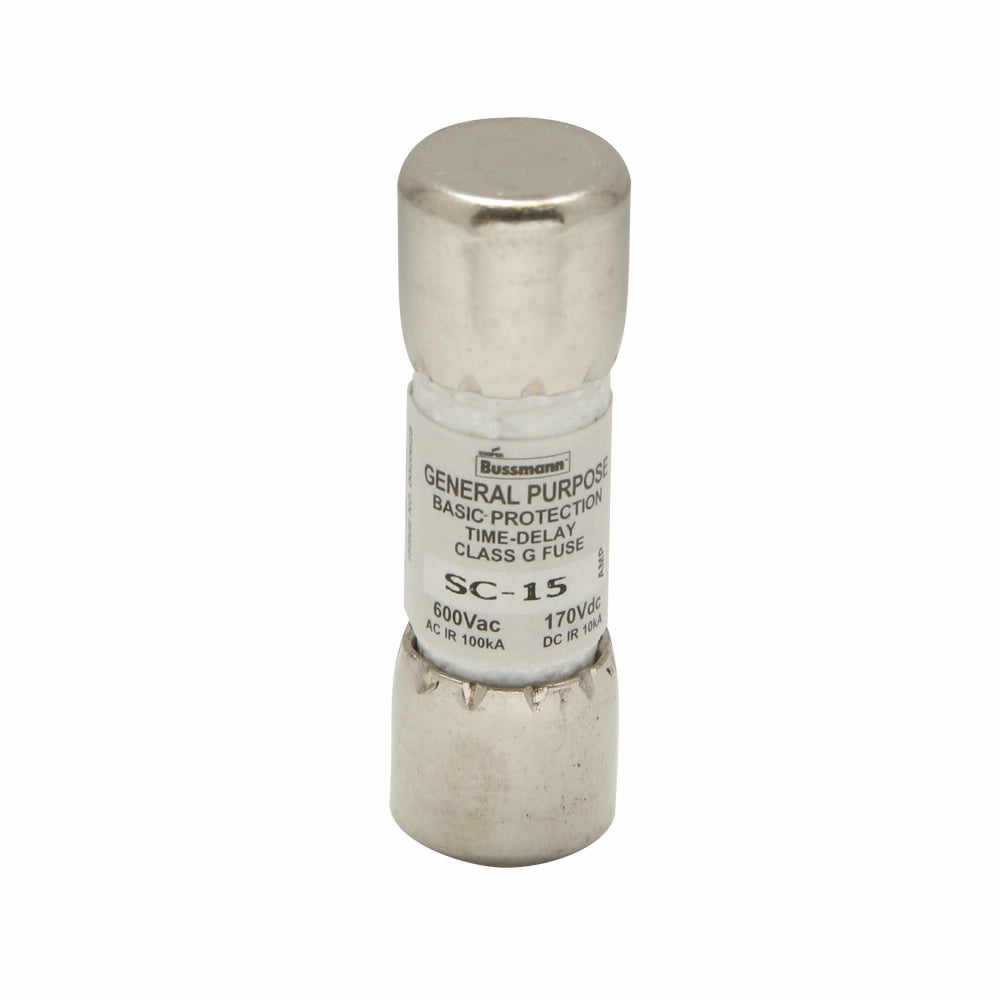

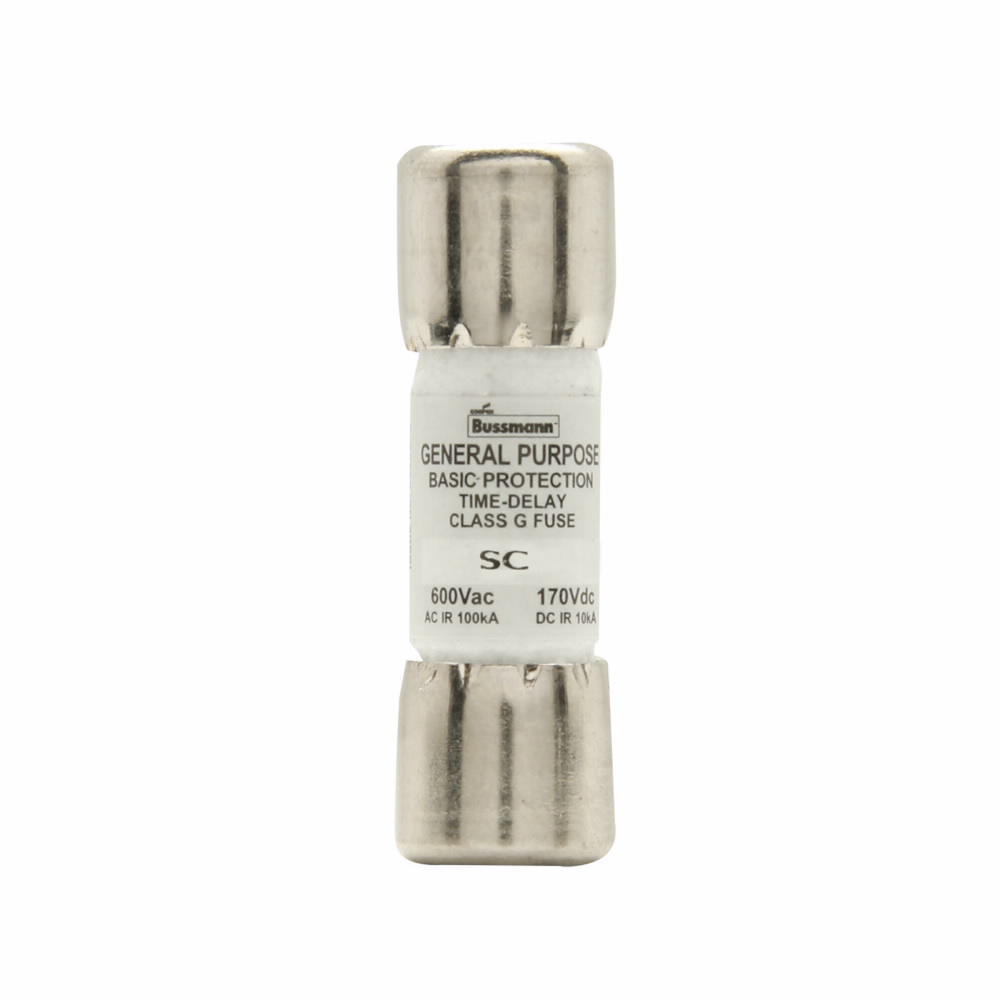

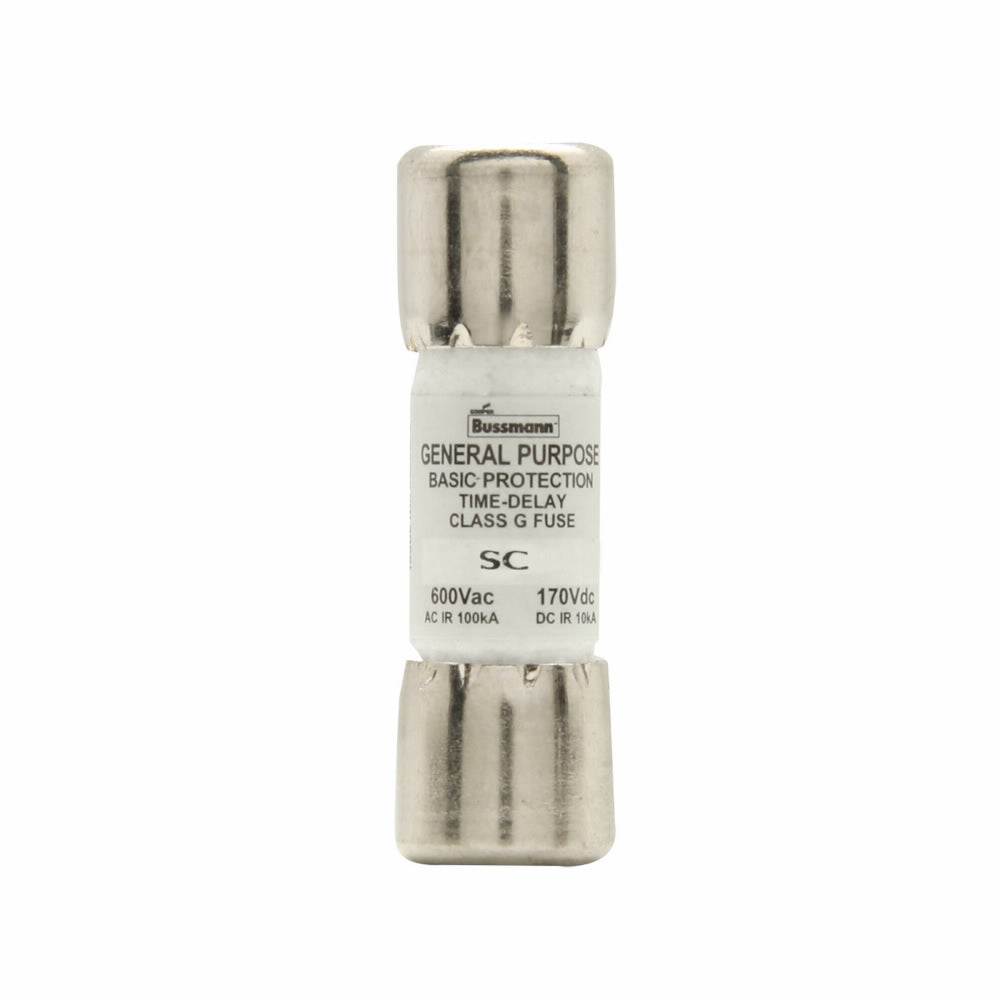

Bussmann SC-5 Current Limiting Fast Acting Fuse 5 A 600 VAC / 170 VDC

Product Description

The Bussmann SC-5 is a current-limiting fast acting fuse, designed for critical circuit protection. With a rating of five amps, this Class G fuse is a reliable option for handling up to 600 volts AC and 170 volts DC. It features a ferrule end connection and measures zero point forty-one inches in diameter and one point thirty-one inches in length.

• Current-limiting and fast acting
• Rated at five amps with a short circuit current rating of 100 kA at 600 VAC and 10 kA at 170 VDC
• Rejection style to prevent overfusing

Product Highlights

Ideal for fusible branch panel boards and HVAC branch circuit protection, this fuse meets CE, CSA, and UL 248-5 standards.

Product Information

Standard Information

• Brand: Bussmann
• MPN: SC-5

Technical Specifications

• Type: Current Limiting Fast Acting
• Amperage: 5 Amp
• Voltage Rating: 600 VAC / 170 VDC
• Interrupt Rating: 100 kA at 600 VAC, 10 kA at 170 VDC
• Class: G
• Body Size: 0.41 inches Diameter x 1.31 inches Length
• End Type: Ferrule
• Material: Melamine
