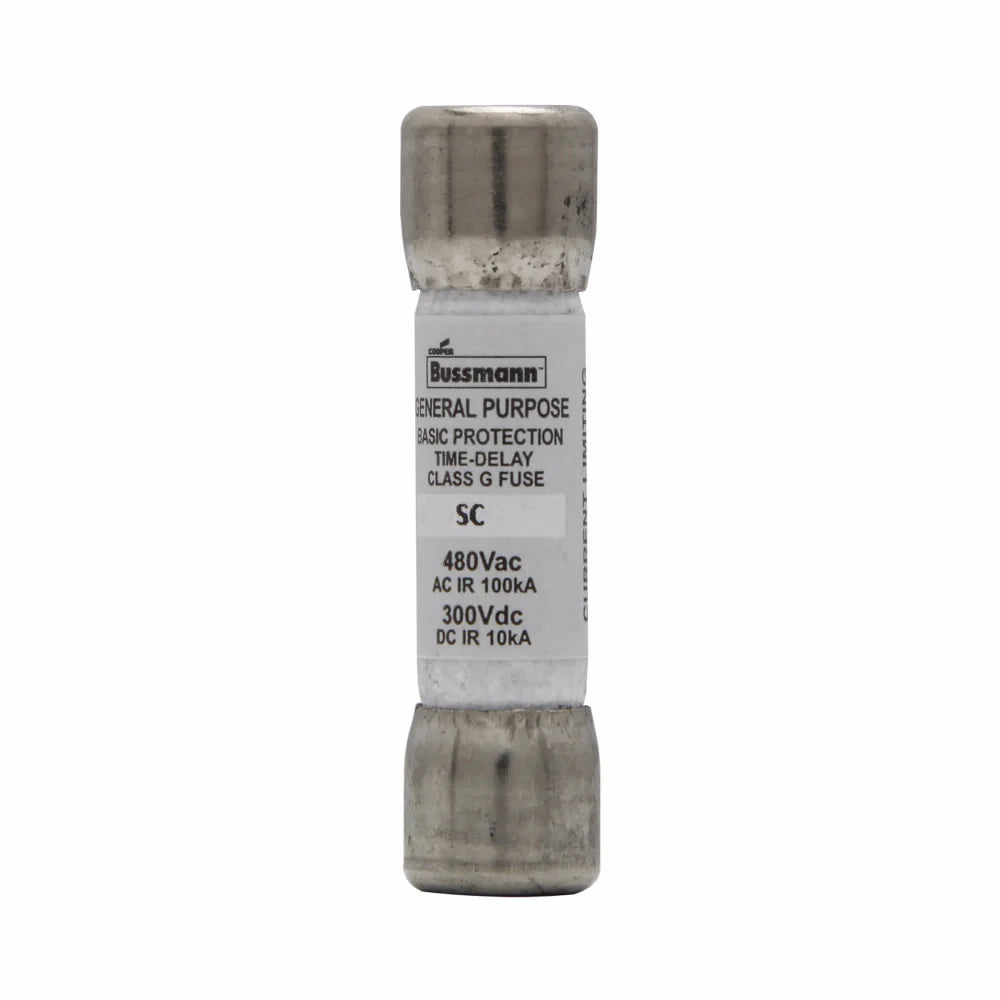

Bussmann SC-30 FUSE 30A 480 VAC/300 VDC 100/10KAIC G

Product Description

The Bussmann SC-30 Fuse is designed for circuit protection with a rating of thirty amperes at four hundred eighty volts AC and three hundred volts DC. This current-limiting time delay fuse is classified under UL standards as Class G. The fuse features a rejection style and has an interrupt rating of one hundred kiloamperes at four hundred eighty volts and ten kiloamperes at three hundred volts.

• Time delay fuse for efficient circuit protection
• Compact cylindrical shape suitable for various applications
• Rejection style prevents overfusing

Product Highlights

This fuse is appropriate for use in fusible branch panelboards and HVAC branch circuit protection, ensuring reliable performance under demanding conditions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part No: SC-30

Technical Specifications

• Voltage Rating: 480 VAC / 300 VDC
• Amperage Rating: 30 A
• Interrupt Rating: 100/10 kAIC
• Response Time: 12 s at 200%
• Body Size: 0.41 in Diameter x 1.62 in Length
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule End
