BUSSMANN SC-20 FUSES
BUSSMANN SC-20 FUSES

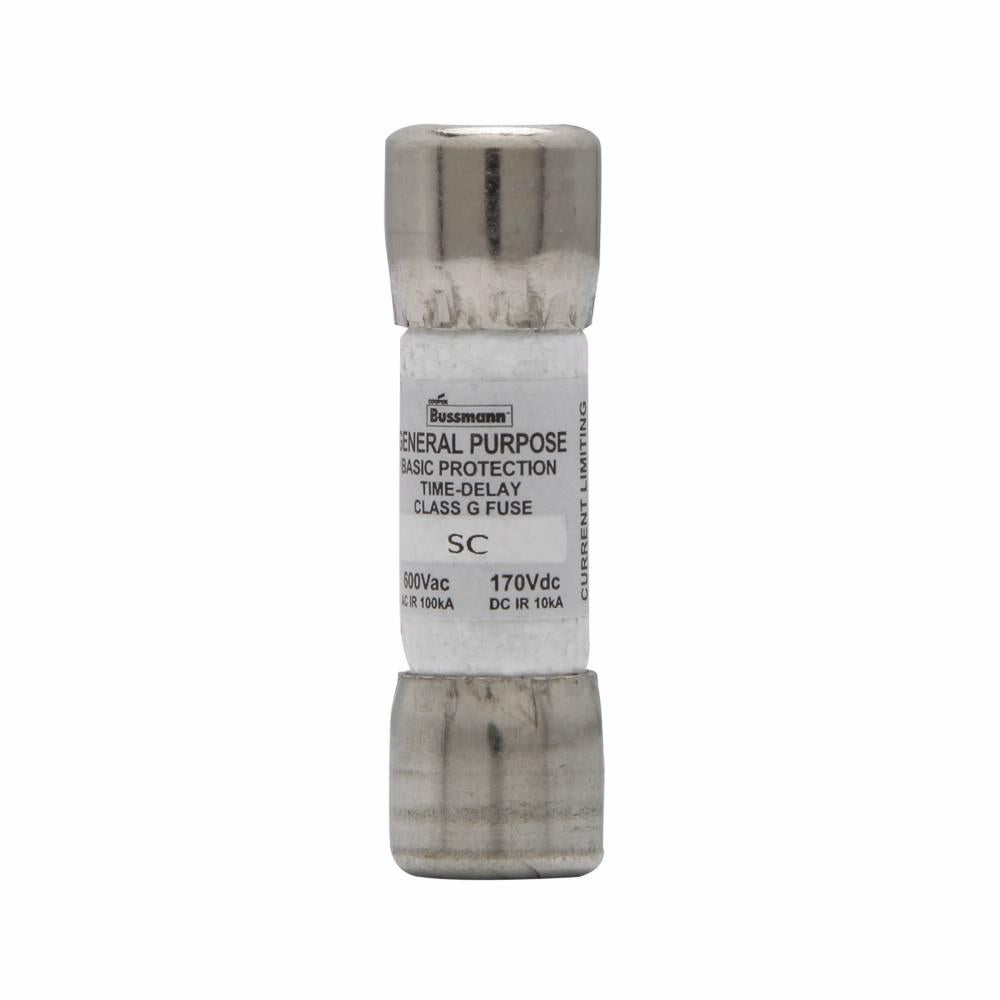

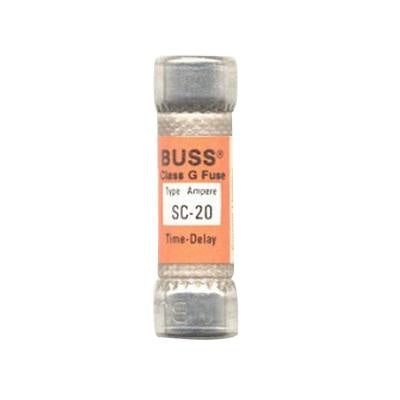

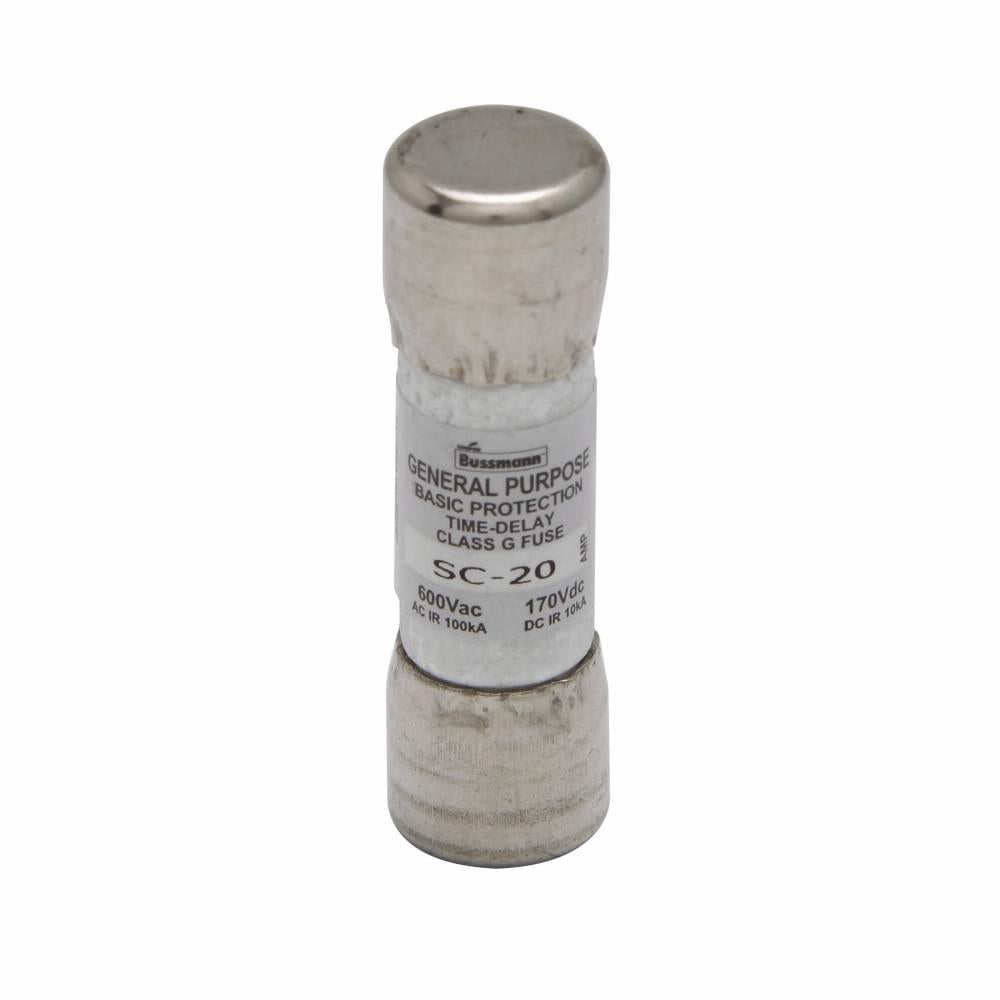

Bussmann SC-20 Bussmann Series SC-20 Class G Fuse 20 Amp 600 VAC 170 VDC Replacement MPN

Brand: BUSSMANN
SKU: SC-20
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12 pm

Earn [points_amount] when you buy this item.
$23.69
$23.69
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Bussmann SC-20 is a Class G fuse with a 20 amp rating, manufactured by Bussmann Mfg. It is a current-limiting, time-delay fuse designed for use in various electrical applications.

  • Rated for 600 VAC and 170 VDC.
  • Features fast-acting and non-indicating characteristics.
  • Rejection style to prevent overfusing with a response time of twelve seconds at two hundred percent of rated load.

Product Highlights

Ideal for fusible branch panelboards and HVAC branch circuit protection.

Product Information

Standard Information

  • Brand: Bussmann
  • MPN: SC-20

Technical Specifications

  • Voltage Rating: 600 VAC / 170 VDC
  • Amperage Rating: 20 Amp
  • Interrupt Rating: 100 kAIC at 600 VAC, 10 kAIC at 170 VDC
  • Diameter: 0.41 inches
  • Length: 1.41 inches
  • Body Type: Cylindrical
  • End Type: Ferrule
  • Response Time: 12 seconds at 200% rated load
