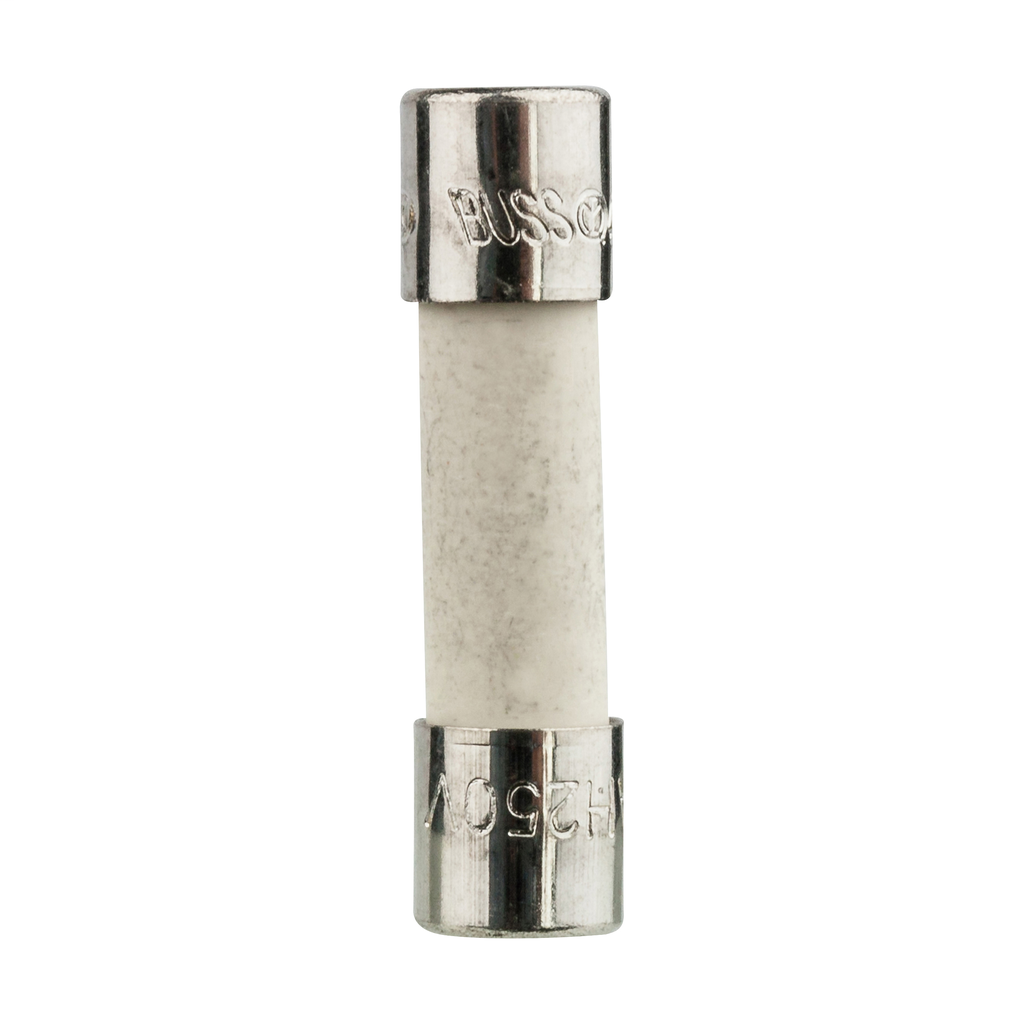

Bussmann S501-10-R Fuse 10A (5.20 mm Diameter X 20.00 mm Height)

Product Description

The BUSSMANN S501-10-R is a fast-acting ceramic tube fuse rated at 10A, designed for AC 250V circuit protection applications. The fuse features a 5.20 mm Diameter X 20.00 mm Height physical size with ceramic tube construction and ferrule end design, meeting IEC 60127-2 standards. It is suitable for electronic circuits.

• Fast acting for maximum protection
• High break capacity for use in higher fault energy electronic circuitry
• Ceramic tube with silver plated endcaps

Product Highlights

The BUSSMANN S501-10-R fuse offers reliable and fast-acting circuit protection in a compact size.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: S501-10-R
• Country of Origin: CN

Technical Specifications

• Size: 5.20 mm Diameter X 20.00 mm Height
• Type: Miniature
• Brand: Bussmann
• Width: 0.197 in
• Height: 0.787 Inch
• Length: 0.787 Inch
• Voltage: 250 Volt
• Amperage: 10 Amp
• Material: Ceramic
• Standard: BSI,CE,CSA,IMQ,SEMKO,UL (CANADA AND US),VDE
• Frequency: 50 Hz
• Indicator: Non Indicating
• Applications: Electronic Circuits
• TC Connection: Ferrule End X Ferrule End
• Connection Type: Ferrule End X Ferrule End
• Interrupt Rating: 1.5 kAIC
• Mounting Type: Holder
• Body Size: 5.2 mm Dia x 20 mm L
• Body Type: Cylindrical
• Element: Single
• Terminal Type: Ferrule
• Catalog ID: BUSS501-10-R
• Blow Characteristic: Fast Acting
• Fuse Current: 10A
• Voltage Rating VAC: 250V
• Fuse Size Metric: 5mm x 20mm
• Product Range: S501
• Breaking Capacity Current AC: 1.5kA
• Part No: S501-10-R
• Fuse Size: 5 x 20 mm
• Acting: Fast
• Current Rating: 10 A
• Maximum AC Voltage Rating: 250 V
• Maximum DC Voltage Rating: N/A
• Fuse Material: Ceramic
• Mounting: Holder
• Voltage Rating: 250 V
