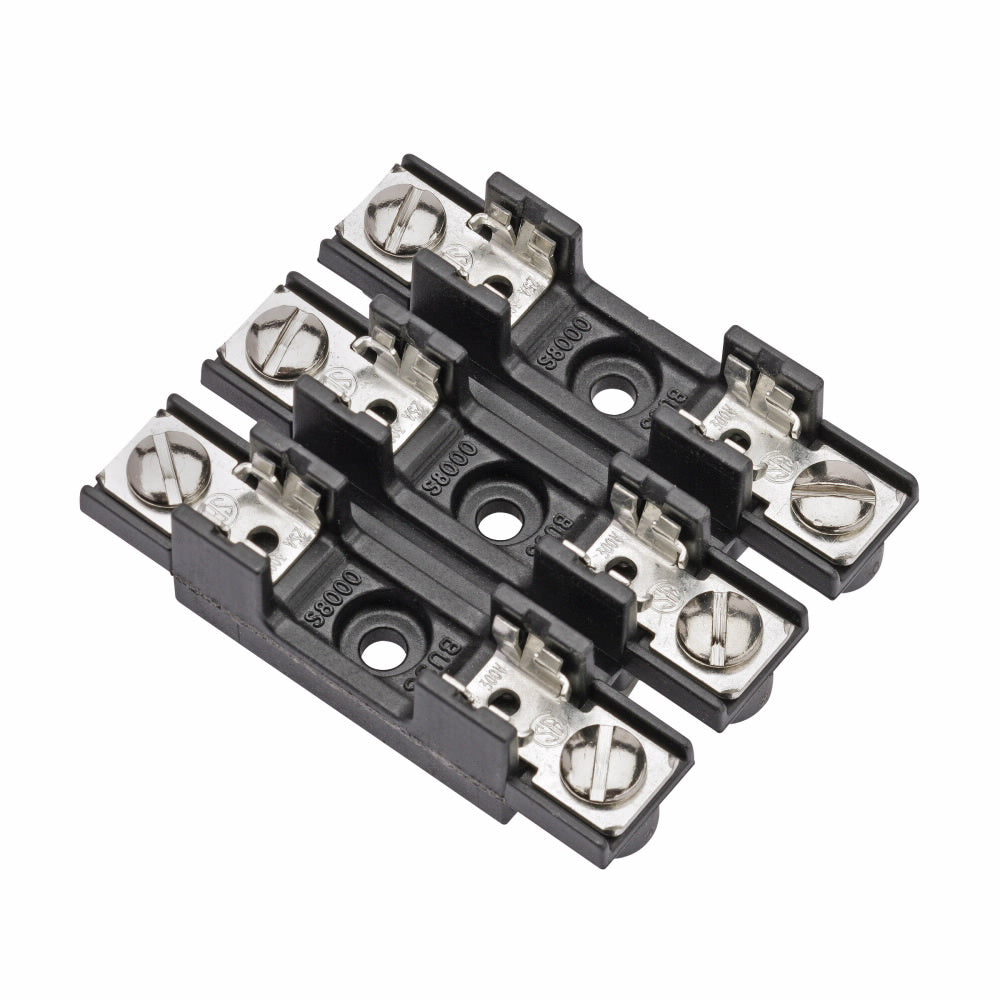

Bussmann S-8301-3 Fuse Block 3-Pole 30 Amp

Product Description

The BUSSMANN S-8301-3 is a 3-pole, 30 amp fuse block designed for bolt-in mounting. Constructed with a thermoplastic body and bright tin-plated spring bronze clip, it ensures reliable performance. It is suitable for use with 1-1/4 inch length and 1/4 inch diameter fuses. UL, CSA, and CE standard.

• 3-Pole configuration
• Rated for 25/30 Amp
• Bolt-in mounting type

Product Highlights

The BUSSMANN S-8301-3 fuse block offers a robust solution for circuit protection with its durable construction and reliable performance.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: S-8301-3

Technical Specifications

• Brand: Bussmann
• Voltage: 300 VAC/VDC
• Amperage: 25/30 Amp
• Material: Bronze
• Standard: UL,CSA,CE
• Mounting Type: Bolt-in
• Connection Type: Screw
• Operating Temperature: 130 Deg C
• Current Rating: 30A
• Fuse Size: Glass Fuse
• Number of Poles: 3
• Series: 8300
• Terminal Type: Screw/Straight Terminal
• Fuse Length: 1-1/4 in
• Fuse Diameter: 1/4 in
• Temperature: 130 deg C
• Body Material: Thermoplastic
• Dimensions: 2.16 in L x 0.5 in W x 0.56 in H
• Model: S-8301-3-R
