Bussmann S-8002-1 Fuseblocks (10) 1/4 inches x 1 1/4 inches

Product Description

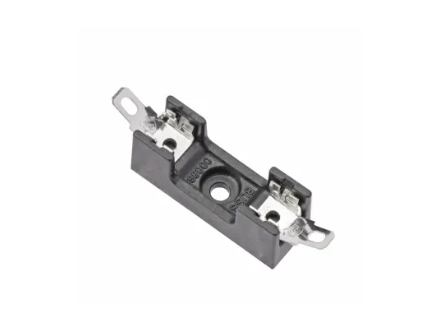

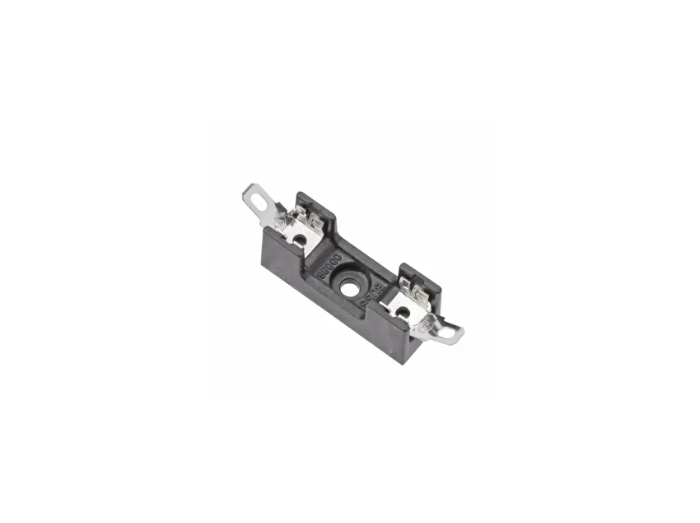

The BUSSMANN S-8002-1 is a fuseblock designed to accommodate (10) 1/4" x 1 1/4" fuses. This 1-pole fuse block is rated for 25A and 300V and features a 40° solder terminal and a thermoplastic base with spring-bronze clips. It is suitable for panel mounting and made with flame retardant thermoplastic that meets UL 94VO.

• Rated for 25 Amps and 300 Volts
• Designed for 1/4" x 1-1/4" fuses
• Features a flame retardant thermoplastic that meets UL 94VO

Product Highlights

The Bussmann S-8002-1 fuseblock is ideal for providing reliable circuit protection in various applications. It is compact, easy to install, and provides a secure connection for fuses.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: S-8002-1
• Country of Origin: USA

Technical Specifications

• Type: Fuse Block
• Manufacturer Part Number: S-8002-1
• Manufacturer: Eaton's Bussmann series
• Product Series: 8000
• Family Series: Eaton's Bussmann series Fuseblocks & Holders, 8000 Series
• Description: Fuseblock
• Current Rating: 25 A
• Voltage: 300 V
• Poles: 1
• Fuse Type: Miniature
• Fuse Size: 1/4 " x 1-1/4 "
• Connection Type: Solder Terminal
• Mounting: Panel Mount
• Trip Indicator: No
• Reinforced: No
• Enclosed: No
• Touch Safe: No
• Approvals: CSA, UL
