Product Description

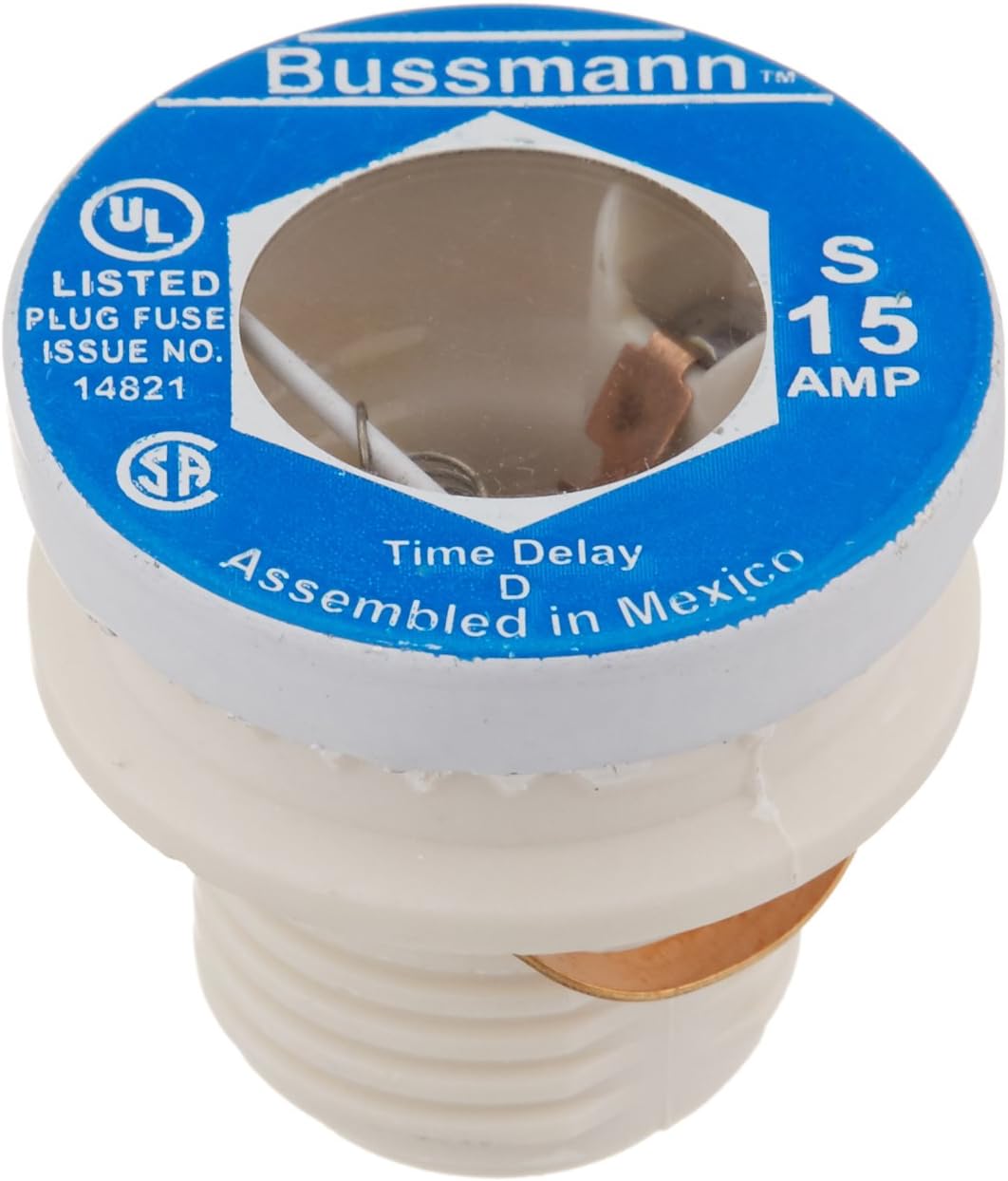

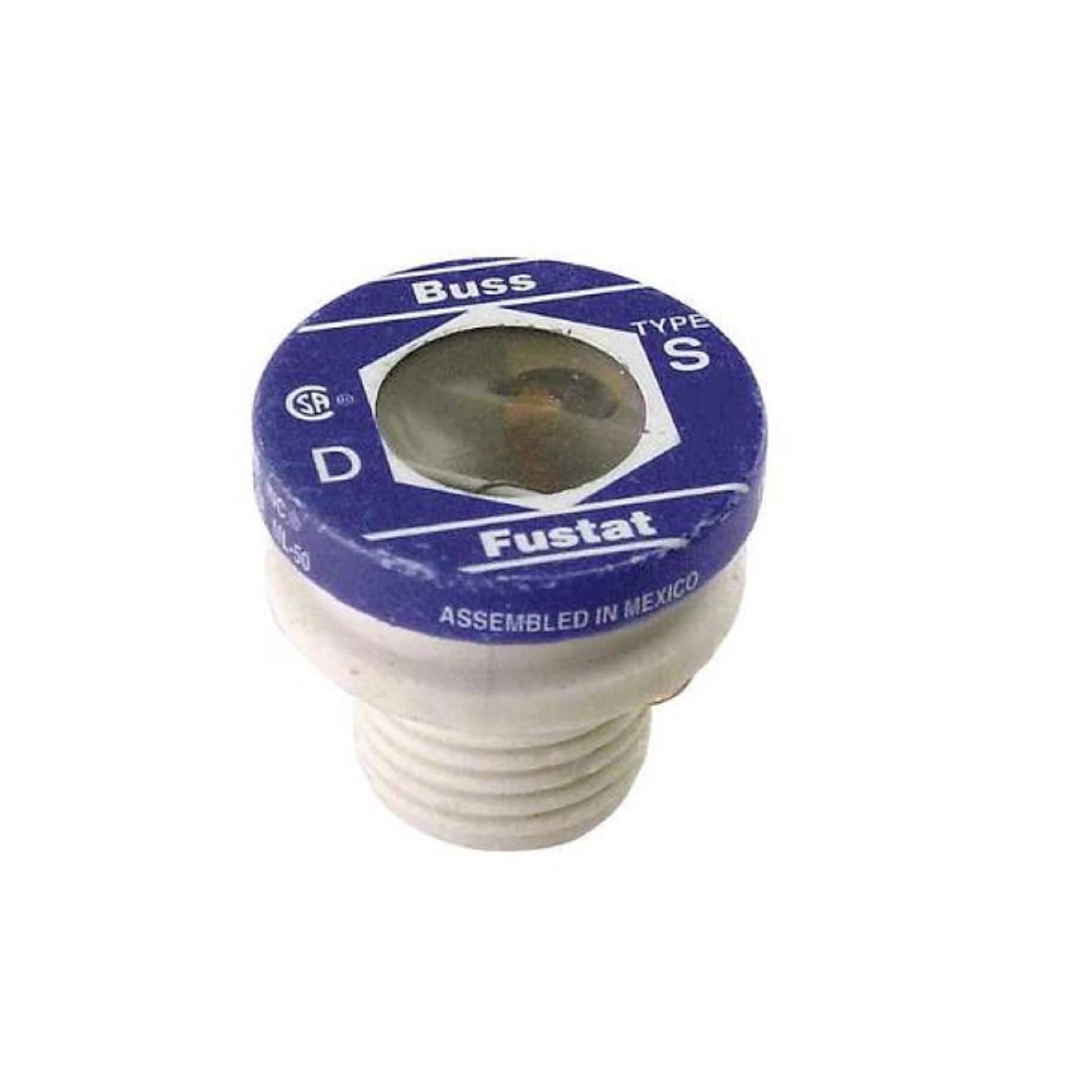

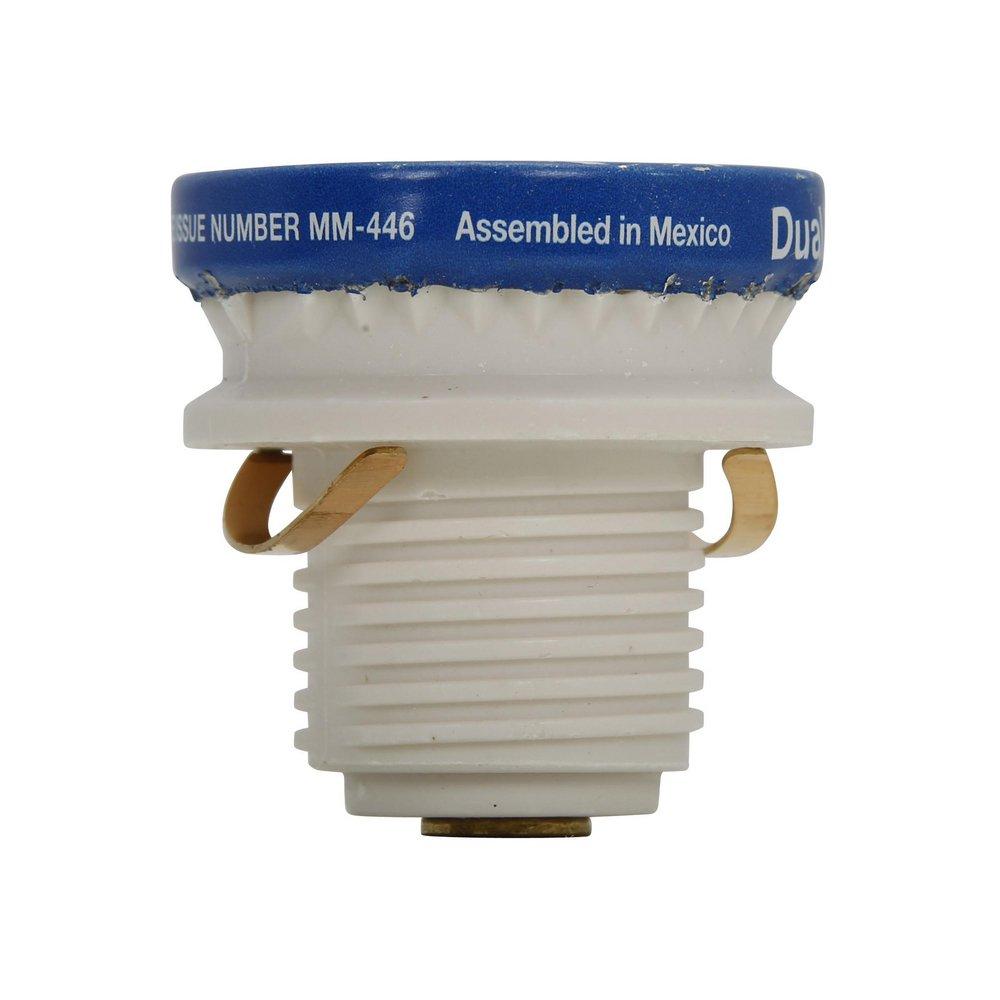

The Bussmann S-15 is a 15 amp, 125-volt dual element time-delay plug fuse, designed to provide superior protection and prevent overloading in residential load centers. This fuse features a tamper-proof design and is ideal for large appliances and HVAC units.
- Time-delay feature allows short-term overloads to pass without blowing.
- Tamper-proof base provides additional safety and compliance with the latest standards.
- UL listed to ensure reliable performance and safety.
Product Highlights
Built with a dual element design, the Bussmann S-15 enhances protection for critical circuits by allowing the fuse to tolerate momentary overload conditions without tripping.
Product Information
Standard Information
-
Manufacturer: Bussmann
-
Brand: Bussmann
-
Model: S-15
Technical Specifications
-
Current rating: 15 Amps
-
Voltage rating: 125 Volts
-
Element type: Dual Element
-
Time Delay: Yes
-
Mounting Type: Threaded
-
Width: 1.16 inches
-
Length: 1.25 inches
-
Height: 1.16 inches
-
Weight: 0.0425 lbs
-
Color: No Color
-
Material: Plastic
-
UL Listed: Yes
-
CUL Listed: Yes
