Bussmann S-10 Eaton Bussmann series Type S plug fuse 10A replacement S-10

Product Description

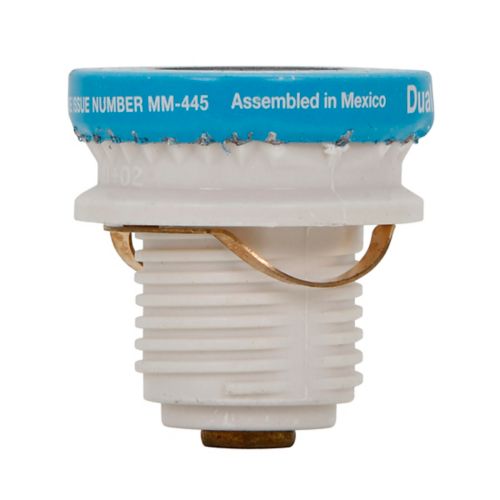

The Eaton BUSSMANN S-10 series Type S plug fuse is a time delay, heavy-duty plug fuse with a plastic base. Rated at 125 Vac with a 10 kAIC interrupt rating and 10 kA short circuit rating. Designed for threaded mount applications and features a dual element.

• Time delay
• Heavy duty
• Packaging type blister pack
• Duel element

Product Highlights

Ideal for residential load centers, this fuse provides superior protection and prevents over fusing of branch circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: S-10
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series Type S plug fuse
• Catalog Number: S-10
• UPC: 051712221009
• Product Length/Depth: 1.16 in
• Product Height: 1.88 in
• Product Width: 0.72 in
• Product Weight: 0.4 lb
• Product Type: Plug fuse
• Amperage Rating: 10 A
• Interrupt rating: 10 kAIC
• Voltage rating: 125 V
• Application: Residential load centers
• Base: Rejection
• Mounting method: Threaded
• Special features: Heavy duty, packaging type blister pack
• Material: Plastic base
• Type: Time delay
• Maximum Amperage (A): 10
• Maximum Current: 10 Amps
• Voltage: 125 Volts
• Mounting Type: Threaded
• Material Type: Plastic
• Specification Met: UL
