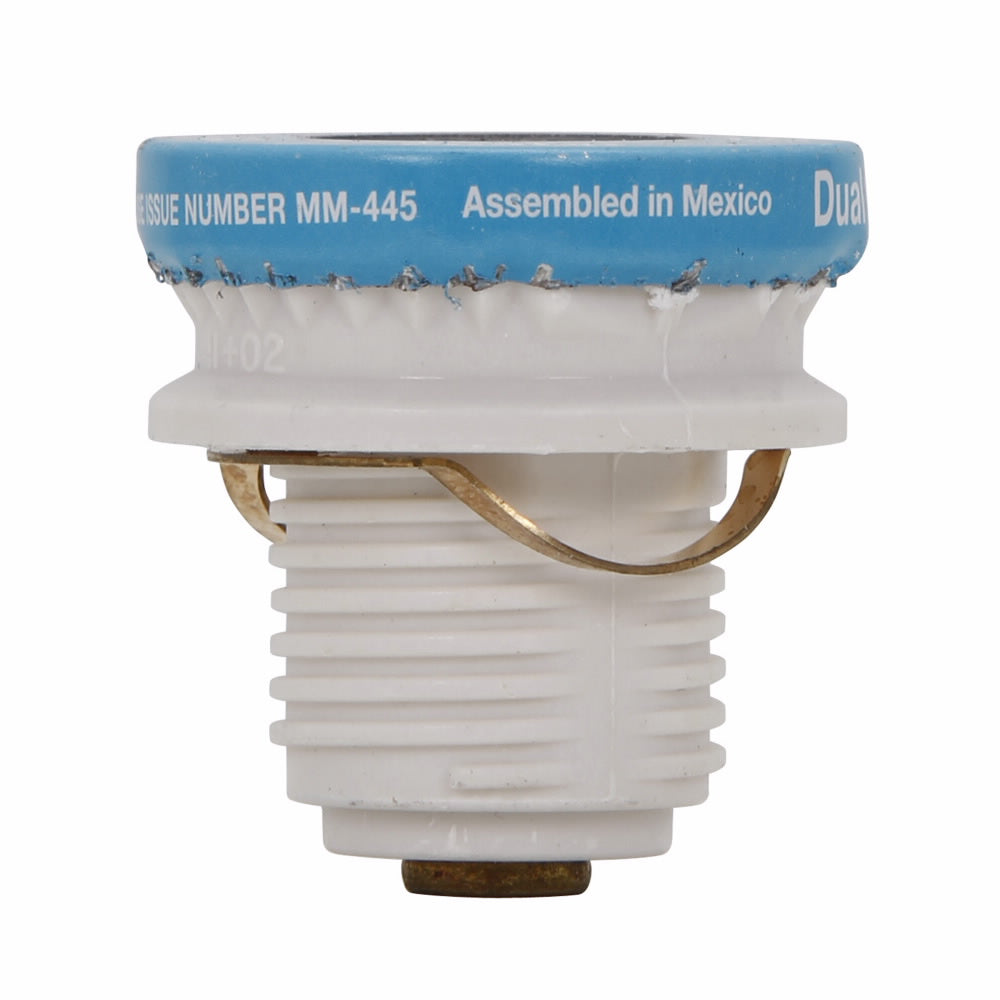

Bussmann S-1-1/4 Fustat Plug Fuse 1.25A

Product Description

The Bussmann S-1-1/4 Fustat Plug Fuse is designed for heavy-duty applications. This low-voltage, time-delay fuse is rated for 1.25 Amps and operates at 125 VAC. The fuse has a 10 kAIC interrupt rating, ensuring reliable performance during overload conditions.

• Protects critical motor circuits or motors that cycle frequently
• Features a non-interchangeable body and dual element design
• Provides superior overload and short circuit protection

Product Highlights

This Bussmann fuse ensures safe and effective operation in various electrical systems, making it ideal for both commercial and industrial applications.

Product Information

Standard Information

• Brand: Bussmann
• Sub Brand: Bussmann Series

Technical Specifications

• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Plastic
• Mounting Type: Threaded
• Rejection/Non-Rejection: Rejection
• Short Circuit Current Rating: 10 kA
• Terminal Type: Stud
• Type: Heavy Duty Low Voltage Time Delay
• Amperage Rating: 1.25 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kAIC
• Body Type: Round
