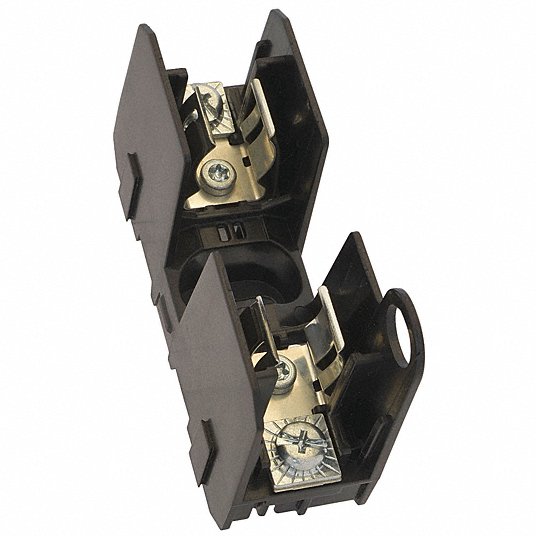

Bussmann RM60030-1SR Eaton Bussmann Series RM modular fuse block 0-30 A

Product Description

The BUSSMANN RM60030-1SR is an Eaton Bussmann Series RM modular fuse block. This single-pole, Class R fuse block is designed for 0-30A and 600V applications. It features a screw connection and a patented design that simplifies panel layout while using less panel space, offering reliable overcurrent protection.

• For use with Class R fuses
• Patented design simplifies your panel layout
• Uses less panel space

Product Highlights

Modular fuse block with screw connection for overcurrent protection in motors, transformers and industrial equipment.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: RM60030-1SR
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann Series RM modular fuse block
• Catalog Number: RM60030-1SR
• UPC: 051712511483
• Product Length/Depth: 6.25 in
• Product Height: 2.27 in
• Product Width: 1.21 in
• Product Type: Modular fuse block
• Amperage Rating: 0-30A
• Voltage rating: 600 V
• Number of poles: Single-pole
• Class: Class R
• Connection: Screw
• AC Voltage Rating: 600 V
• Materials: Thermoplastic
• Interrupting Rating: 200,000 AIC RMS
• UL Flammability: 94V0
• ECCN: EAR99
• Rated Voltage: 600V
• Shape: Rectangular
• Fuse Amps: 0-30A
• Length: 6.25 in.
• Height: 2.27 in.
• Width: 1.21 in.
• Brand: BUSSMANN
• Manufacturer Part Number: RM60030-1SR
• Body Material: Thermoplastic
• Compatible Fuse Series: A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R
• Current - Maximum: 30 A
• Current - Minimum: 0 A
• Compatible Fuse Class or Type: Class R
• Compatible Fuse Diameter: 13/16 in
• Compatible Fuse Length: 5 in
• Fuse Block Terminal Type: Screw
• Fuse Block Design: Open
• Fuse Block Mounting Style: DIN Rail; Bolt-Down
• Fuse Block Style: Rejection
• Overall Height: 2 in
• Overall Length: 7.2 in
• Overall Width: 1.2 in
• Standards: CE; CSA Certified; UL Listed
• Visual Indication: Non-Indicating
• Wire Size - Maximum: 10 AWG
• Wire Size - Minimum: 18 AWG
• UNSPSC: 39121411
