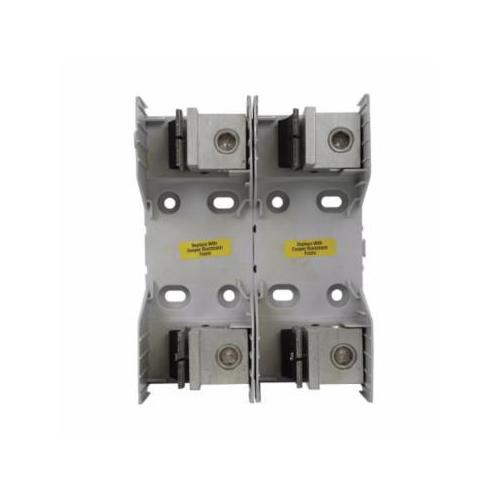

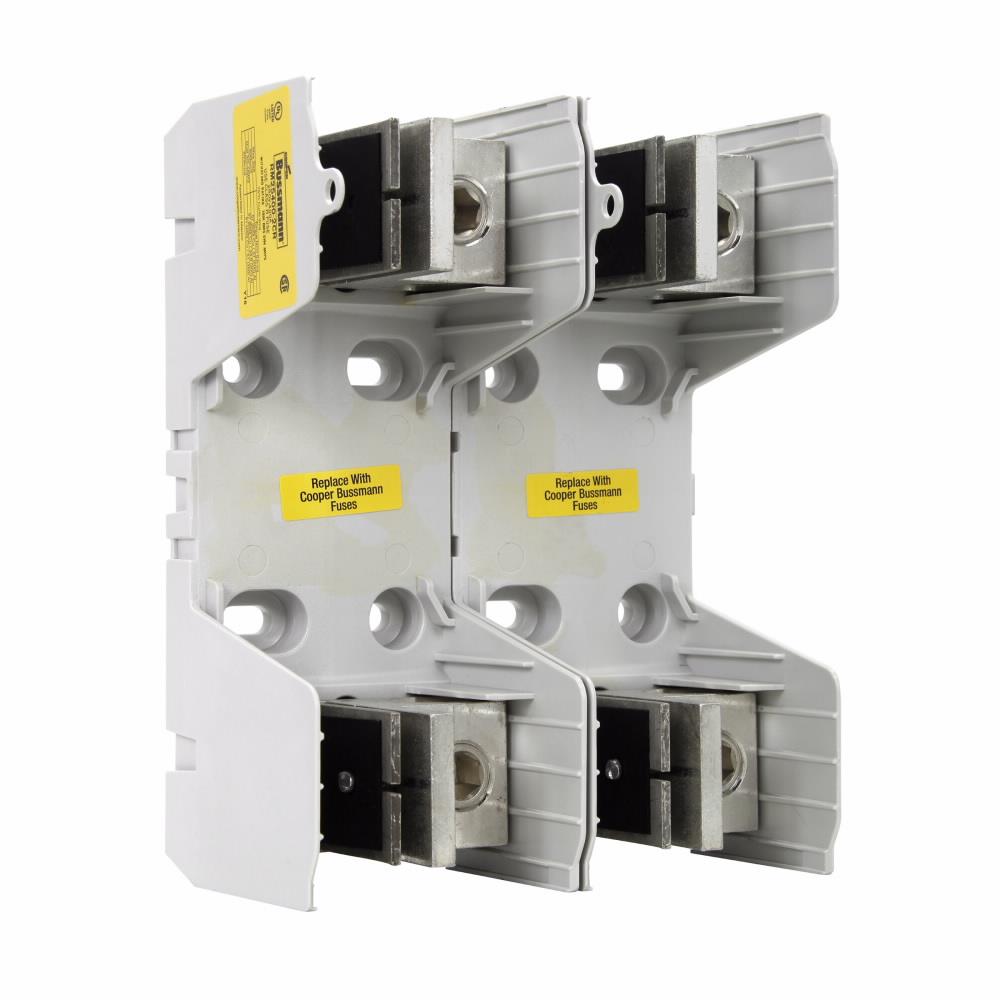

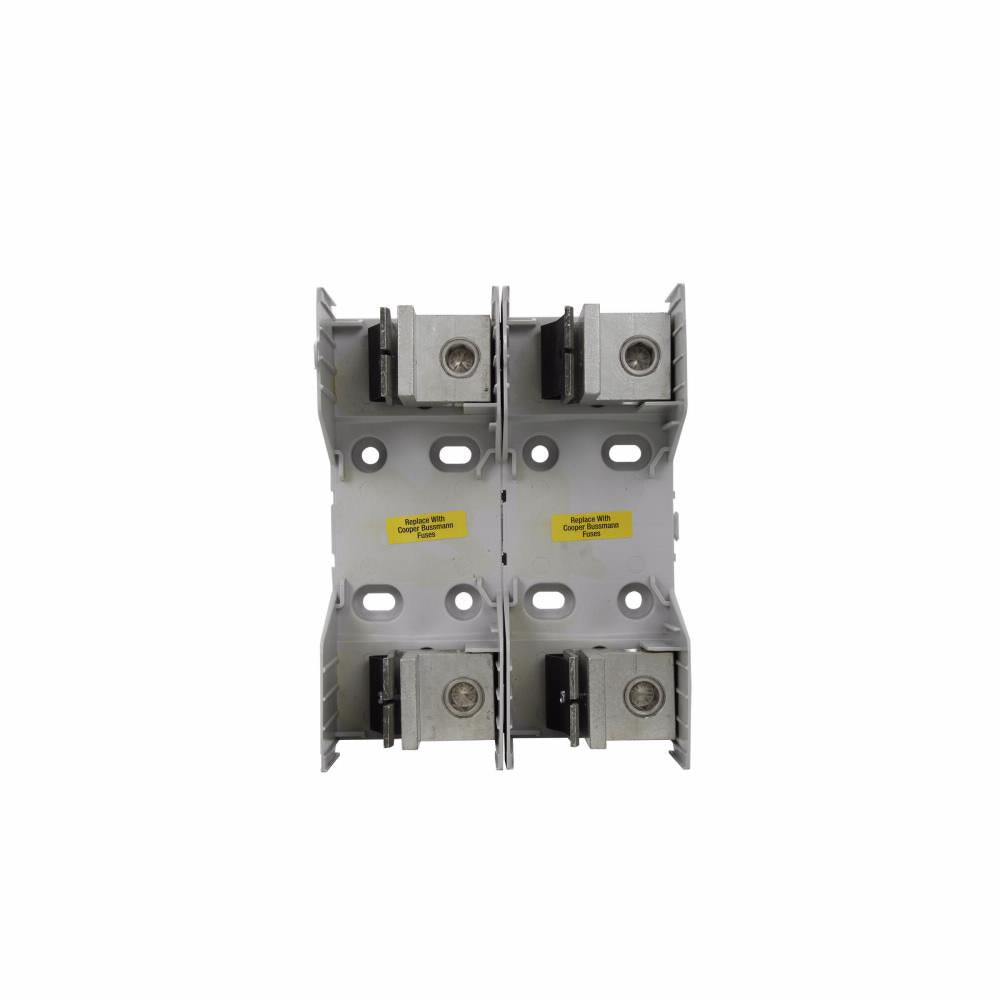

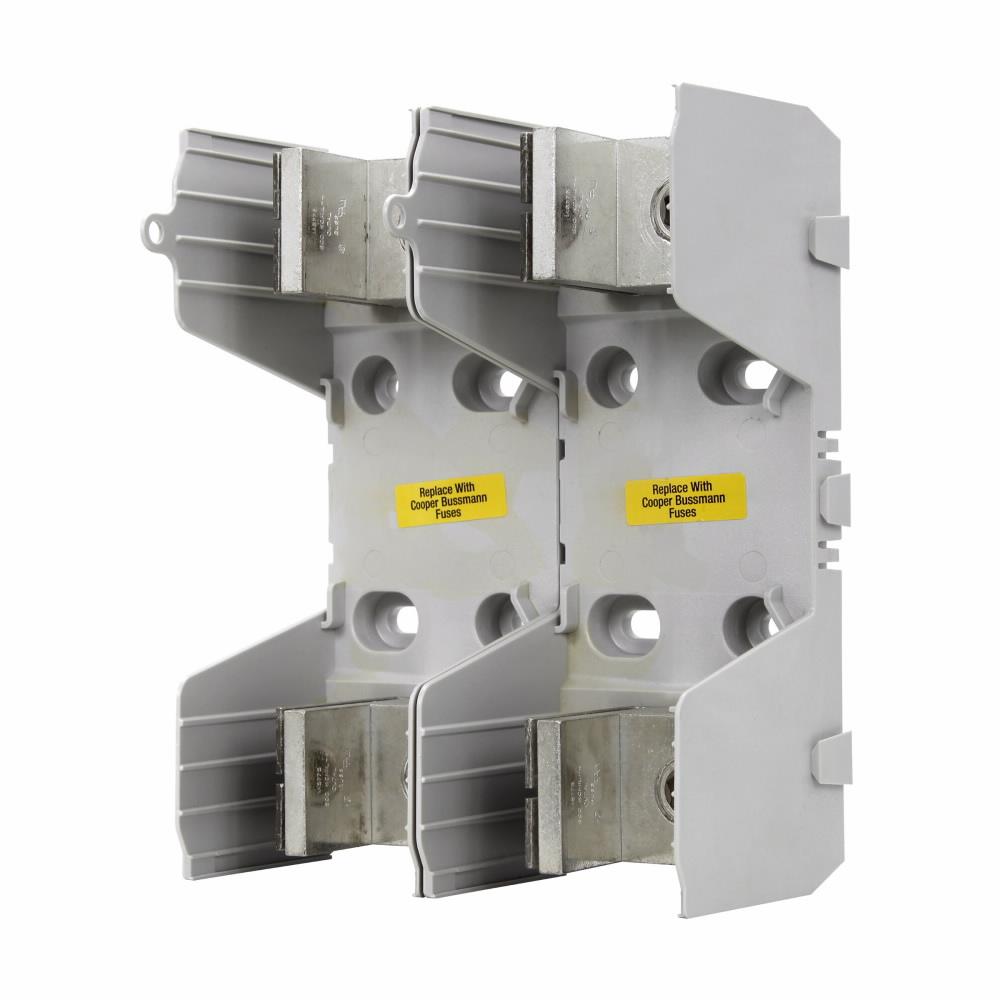

Bussmann RM25100-3CR Modular Fuse Block 250 V 70 to 100 A R

Product Description

The Bussmann RM25100-3CR is a modular fuse block manufactured by Eaton. This fuse block operates at 250 volts with a current rating of seventy to one hundred amps. It features three poles and is classified as 'R'. The connections are suitable for wires ranging from 1/0 to 3 AWG, along with additional connections for various wire gauges including 4 to 6 AWG and 10 to 14 AWG.

• Modular design for flexible configurations
• Temperature range of -40 to 120 degrees Celsius
• Compatible with knife blade cartridge fuses

Product Highlights

This fuse block is built to handle industrial power circuits efficiently. It includes features to enhance safety and flexibility during installation.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Connection Type: Knife Blade End
• Dimensions: 6 inches L x 6 inches W x 2.8 inches H
• Material: Thermoplastic
• Mounting Type: Hole
• Series: RM Series
• Suitable For Use With: Knife Blade Cartridge Fuse
• Temperature Rating: -40 to 120 degrees Celsius
• Voltage Rating: 250 V
• Amperage Rating: 70 to 100 A
• Class: R
• Wire Size: 1/0 to 3 AWG, (2) 4 to 6 AWG copper, (2) 10 to 14 AWG Cu, (2) 10 to 12 AWG Al Solid/Stranded
• Number of Poles: 3
