Bussmann RDF60J-3 Switch 60A J 3P UL98

Product Description

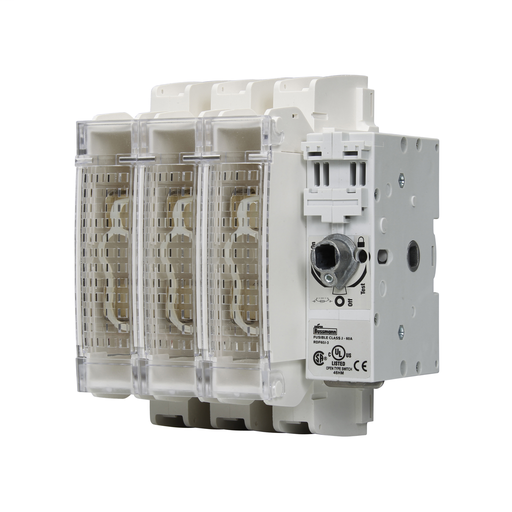

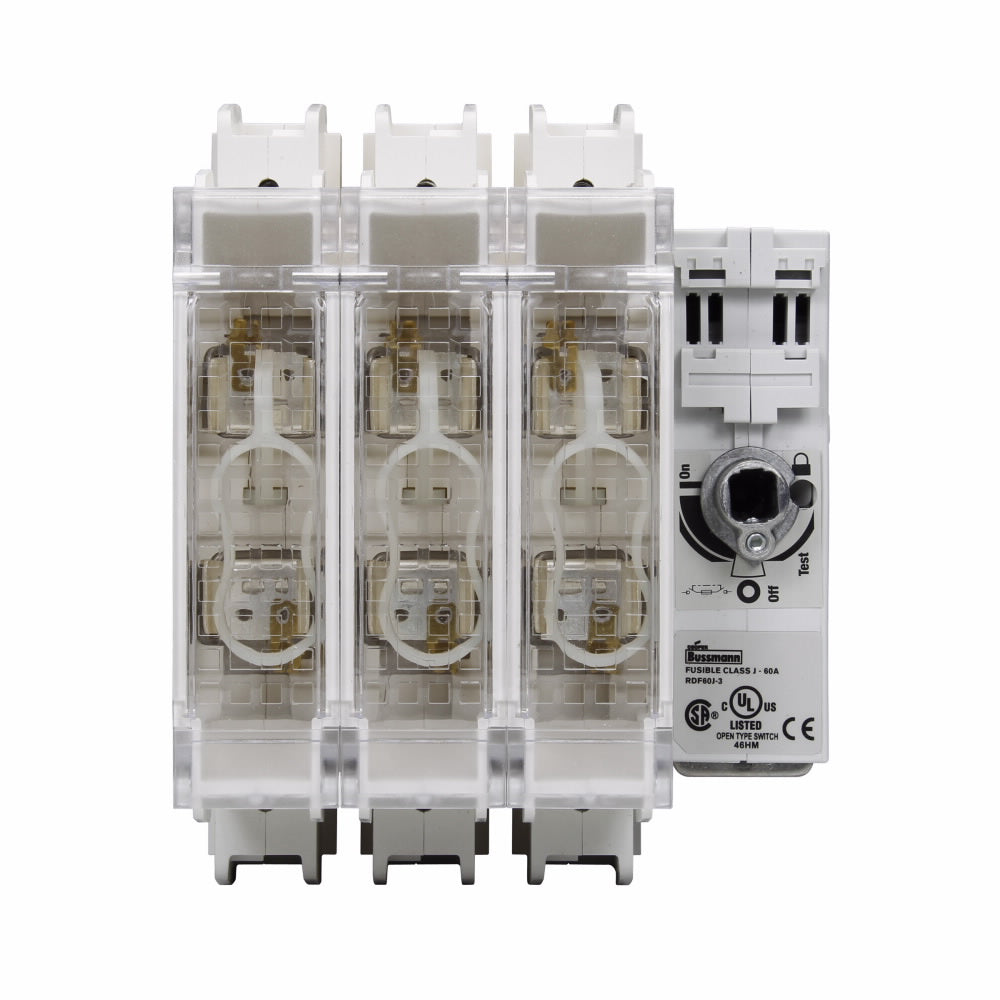

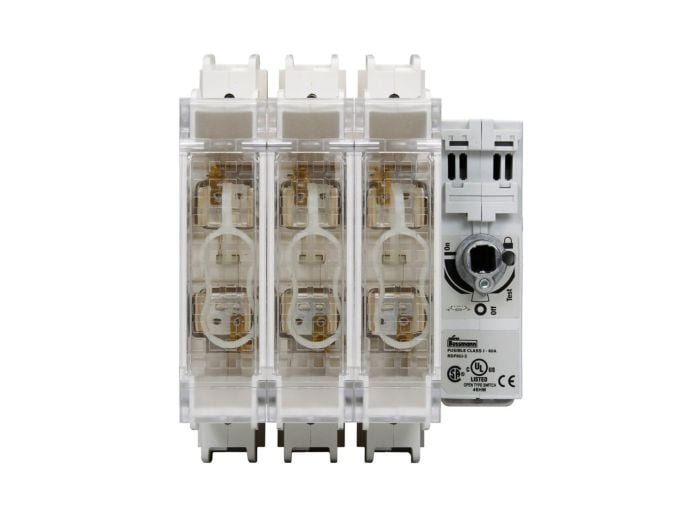

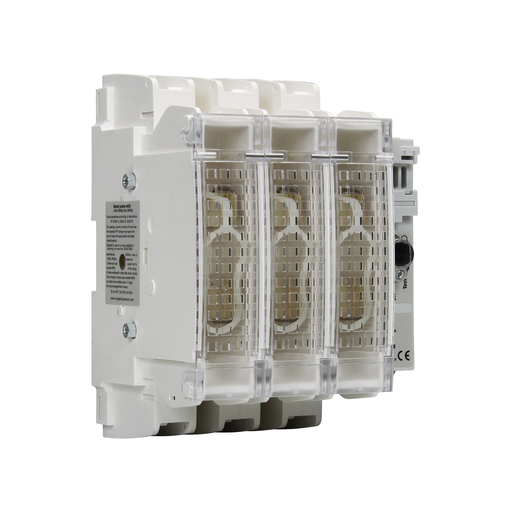

The Bussmann RDF60J-3 is a fused rotary disconnect switch from the Eaton Bussmann series RDF. This standard switch features front/side handle operation and a flange. Rated at 600 Vac and 250 Vdc with a 60A amperage, it is designed as a fused disconnect switch.

• Standard switch
• Front/side handle operation
• Flange
• Fused disconnect switch

Product Highlights

The Bussmann RDF60J-3 is a reliable fused rotary disconnect switch with a standard design.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: RDF60J-3

Technical Specifications

• GTiN: 00051712402842
• Type: Fused Disconnect Switch
• Brand: Bussmann
• Width: 4.5 in
• Height: 7.1 in
• Length: 5.75 in
• Weight: 4.4 lb
• Voltage Rating: 600/250 VAC/VDC
• Amperage Rating: 60 A
• Sub Brand: Bussmann series
• Product UPC: 05171240284
• 12-Digit UPC: 051712402842
• Applications: Stationary Machinery/ Equipment
• Operating Temperature: -20 To 70 degrees C
• Product Name: Eaton Bussmann series RDF fused rotary disconnect switch
• Catalog Number: RDF60J-3
• Product Length/Depth: 5.75 in
• Product Height: 7.1 in
• Product Width: 4.5 in
• Warranty: Not Applicable
• Compliances: Not Applicable
• Product Type: Fused disconnect switch
• Operating temperature - max: 70 °C
• Operating temperature - min: -20 °C
• UNSPSC Code: 39120000
• Class: Class J
• Current Rating: 60 A
• Manufacturer Part Number: RDF60J-3
• Maximum Current: 60 A
• Mounting Type: Panel Mount
• Number of Poles: 3
• Series: RDF Series
• Shape: RECTANGULAR
• Special Features: Compact switch, Front/side handle operation, Flange
• Unit of Measure: EA
• UPC Code: 51712402859
• Actuator Type: Front/Side Handle
• Dimensions: 5.75 in L x 4.5 in W x 7.1 in H
• Horsepower: 15 hp, 50 hp at 600 VAC, 10 hp at 250 VDC
• Mounting type: DIN Rail/Panel/Flange
• UNSPSC: 39122205
• Manufacturer: Eaton's Bussmann series
• Product Series: RDF
• Family Series: Eaton's Bussmann series Disconnect Switches, RDF Series
• Poles: 3
• AC Voltage: 600 VAC
• DC Voltage: 250 VDC
• Operator Type: Selector
• Mounting: DIN, Panel
• Fusible: Yes
• Approvals: CSA, UL
• Net Weight: 4.43 lbs
• Gross Weight: 5.095 lbs
