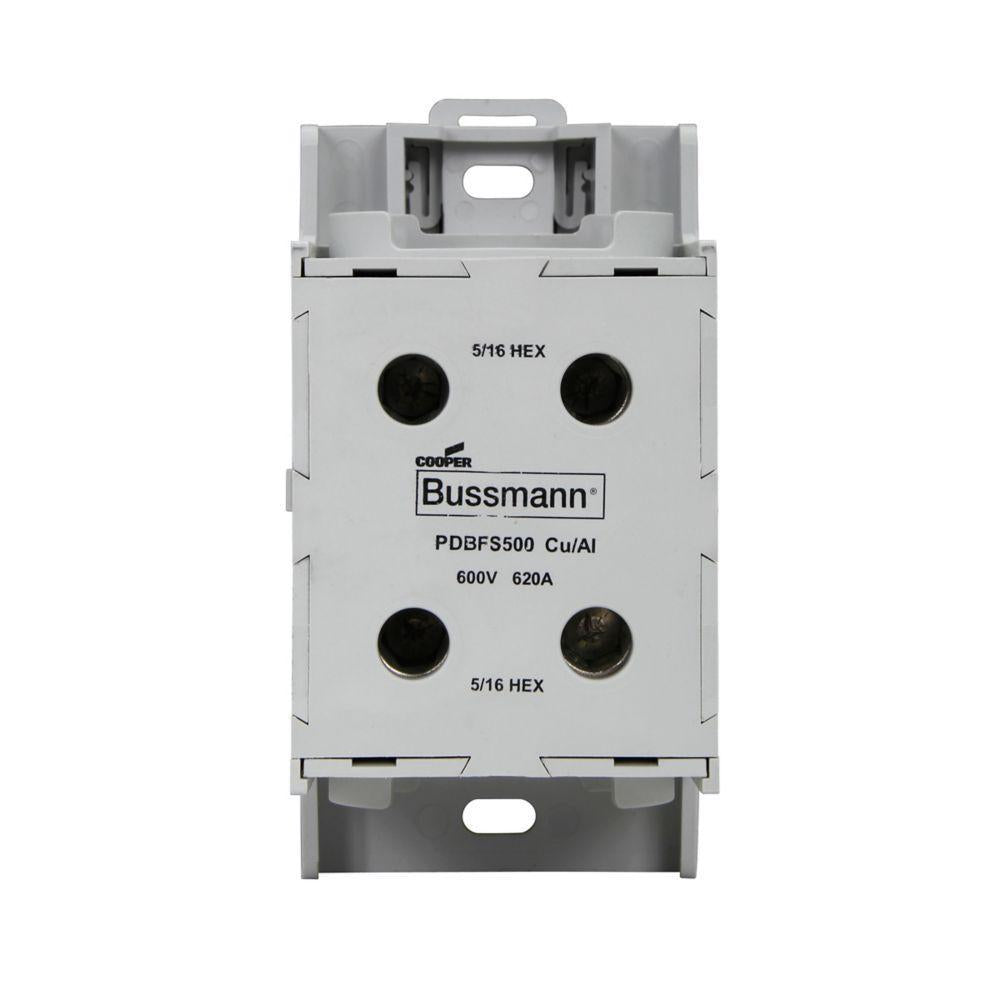

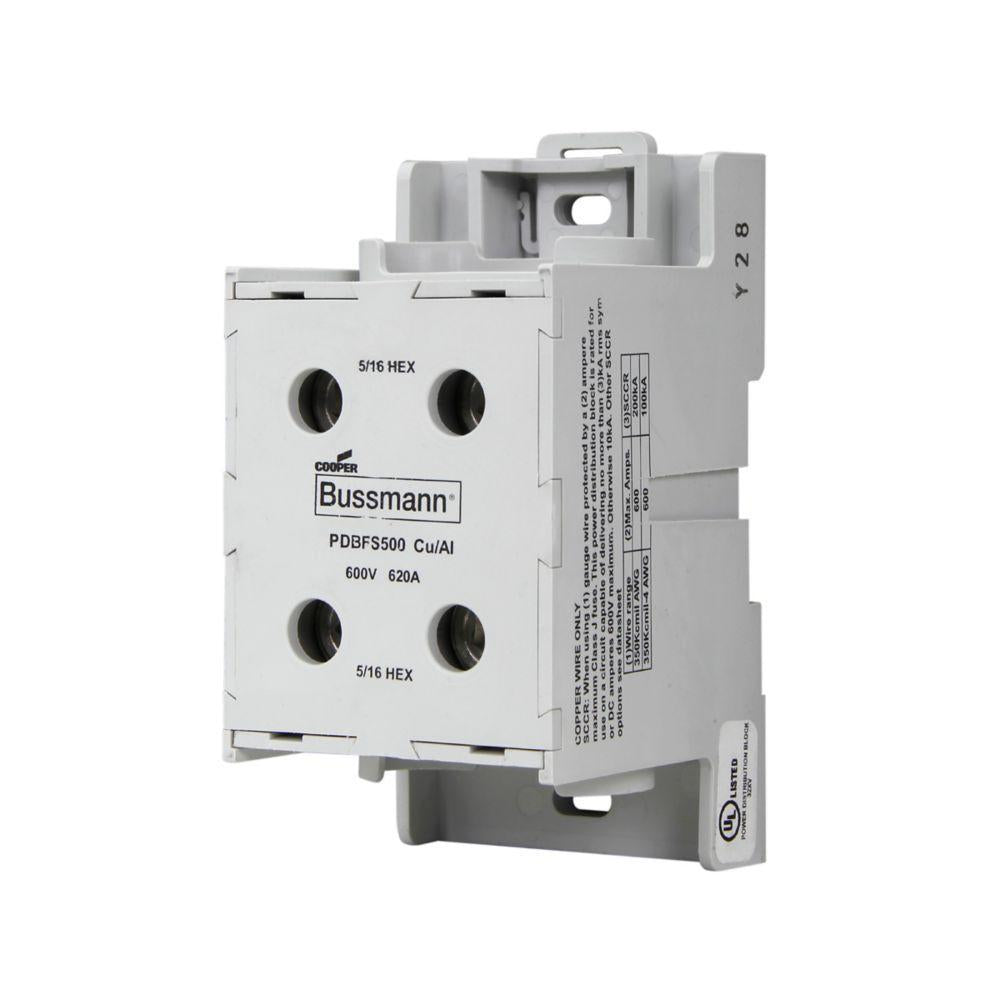

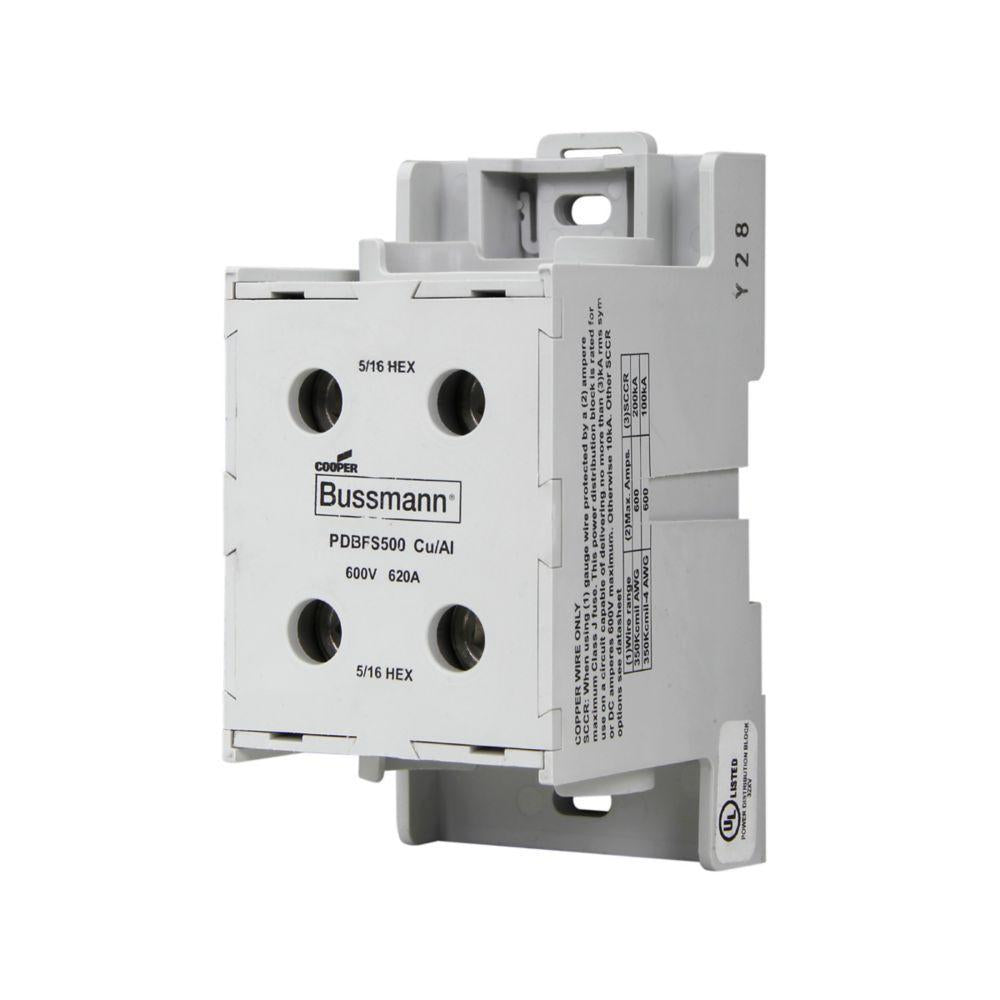

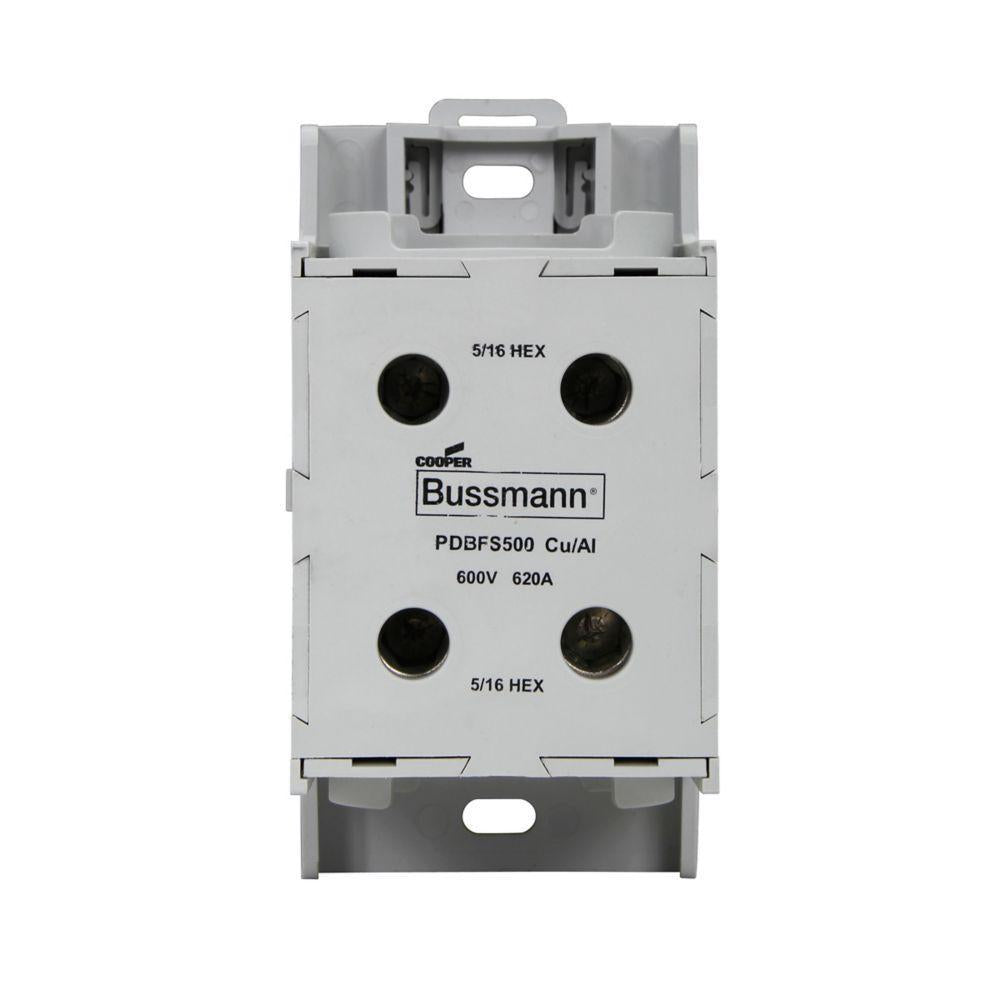

Bussmann PDBFS500 Power Distribution Block 620 A

Product Description

The Bussmann PDBFS500 power distribution block offers a broad range of UL listed cable limiters, welder limiters and circuit limiters. Rated for AC or DC applications, this block features 1 primary connection per pole and accommodates 4 AWG to 350 kcmil wire. It has a short circuit current rating of 200 kA.

• IP20 finger safe under specified conditions increases safety by isolating energized connections
• Wire ready captive termination screws cannot be misplaced and are shipped "backed out" to save time on conductor installation
• Sliding DIN rail latch provides easy block mounting

Product Highlights

The PDBFS series power distribution block offers safety and ease of installation with its finger-safe design and captive termination screws.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: PDBFS500

Technical Specifications

• Dimensions: 4.66 in L x 2.37 in W x 2.6 in H
• Finish: Tin Plated
• Primary Connections/Pole: 1
• Series: PDBFS
• Short Circuit Current Rating: 200 kA
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 620 A
• Number of Poles: 1
• Wire Size: 4 AWG to 350 kcmil
• Material: Aluminum
• Size: 4.665 In Length X 2.380 In Width X 2.598 In Height
• Type: Power distribution block
• Mounting: DIN rail; panel
• Application: Elec Assemblies; Panels -N- EOEM - Electrical Assemblies; Panels and EOEMs
• Family group: CONNECTORS
• Manufacturer: BUSSMANN
• Special Features: IP-20 Finger-safe
• Product Length/Depth: 5 in
• Product Height: 2.5 in
• Product Width: 3 in
• Product Type: Power distribution block
• Short-circuit rating: SCCR: 200 kAIC
• Voltage rating: 600 Vac, 600 Vdc
• Current Rating: 620 A
• Shape: RECTANGULAR
