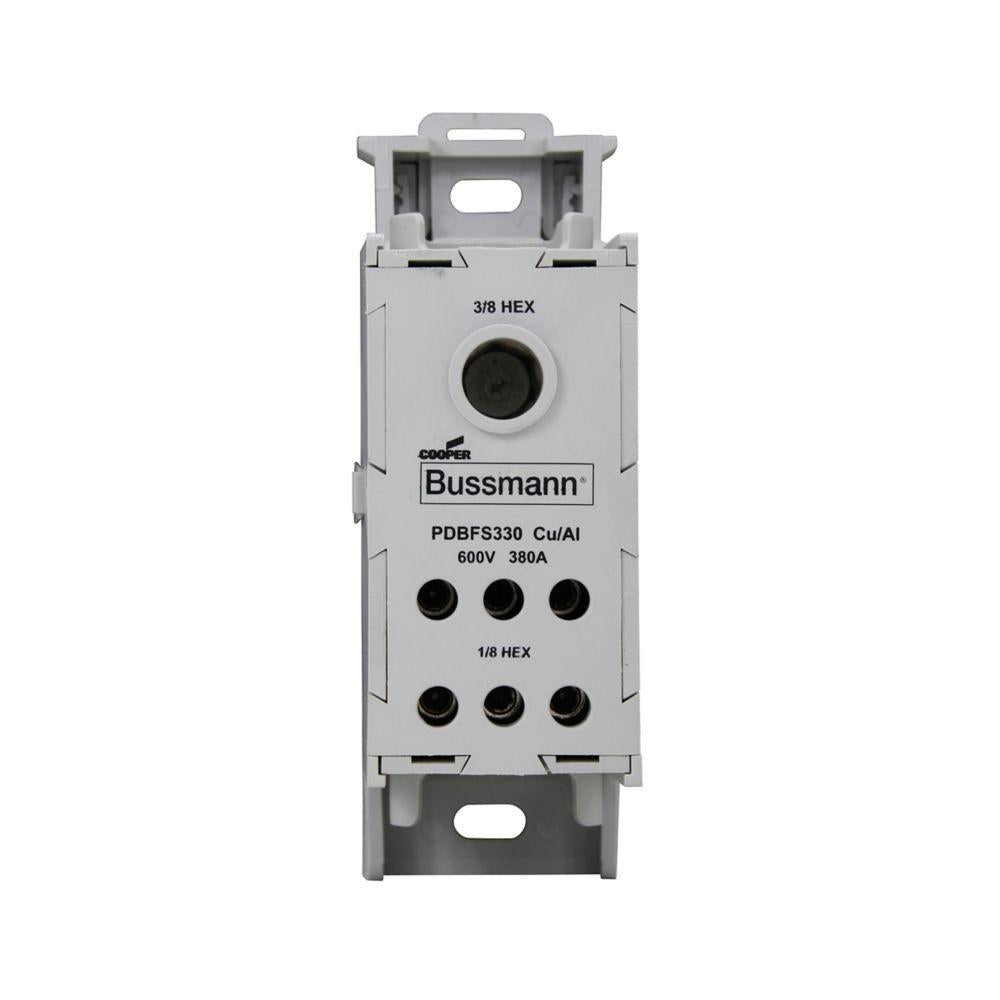

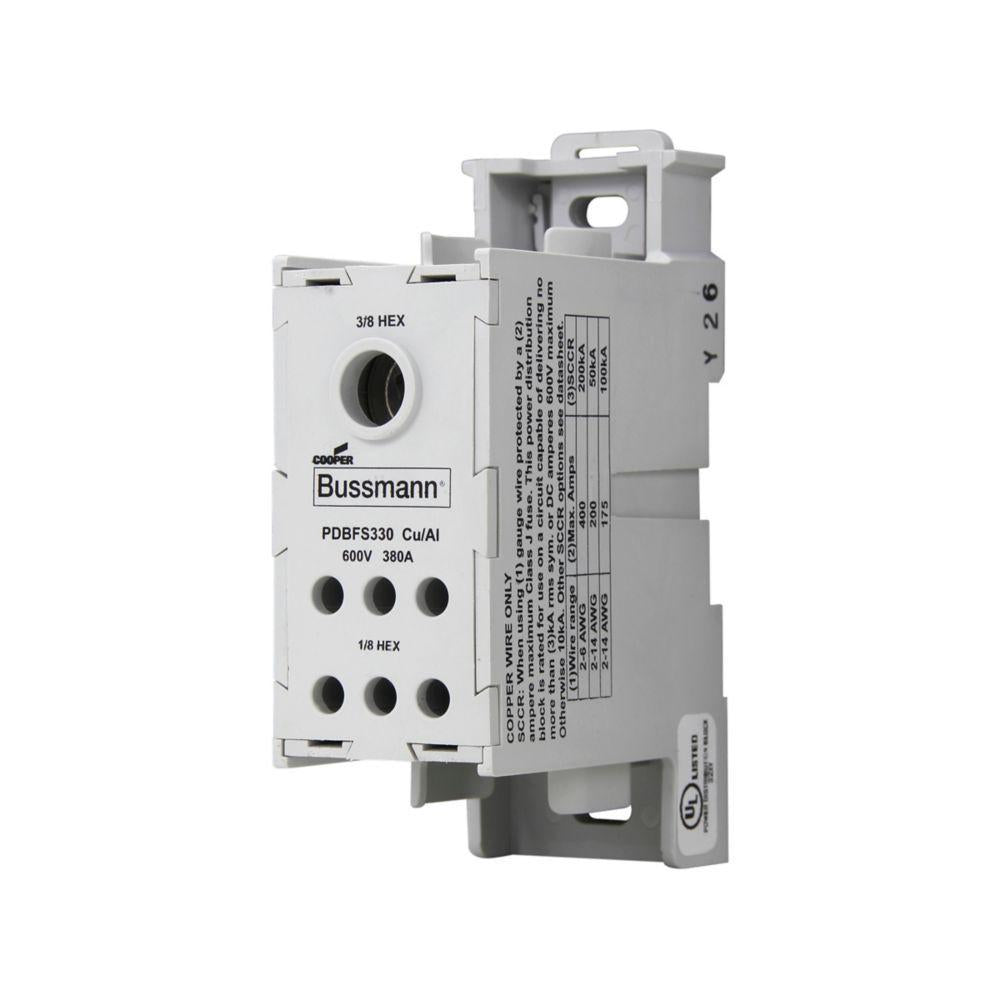

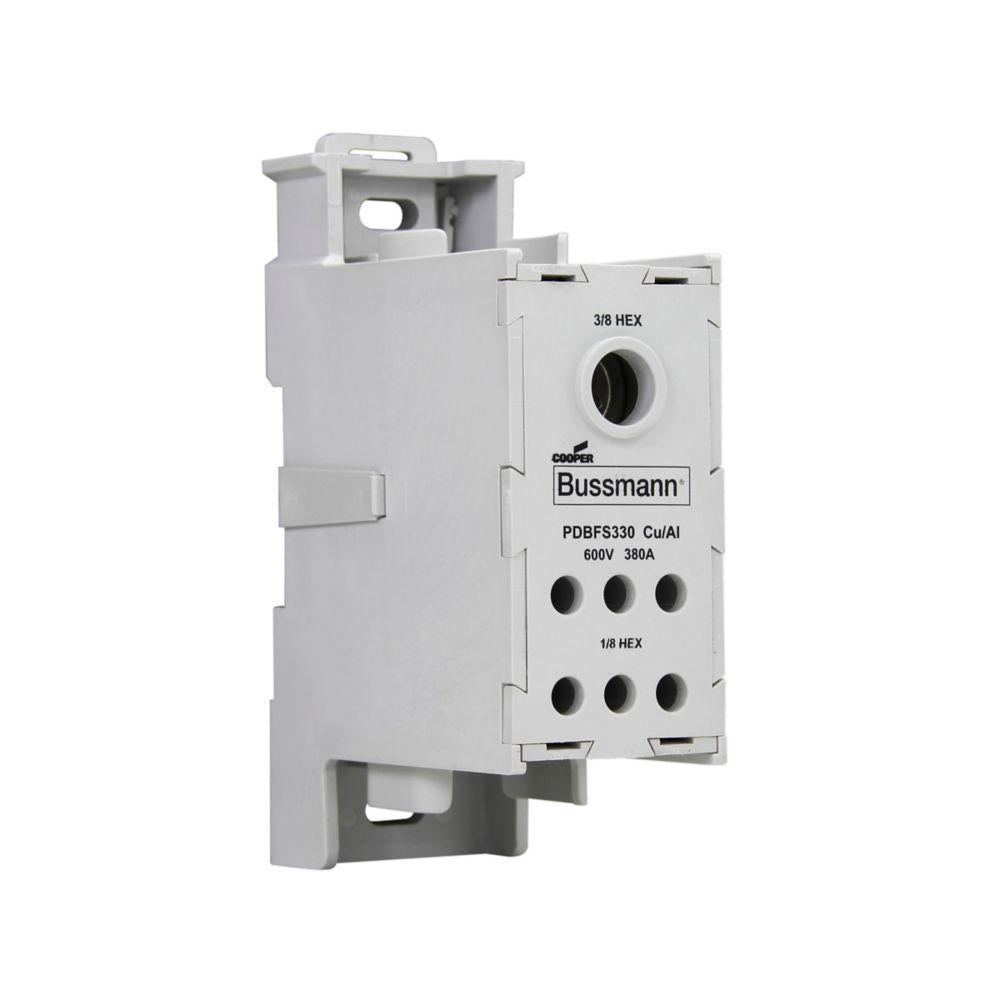

Bussmann PDBFS330 Power Distribution Block 600 VAC/VDC 380 A

Product Description

The Bussmann brand PDBFS330 Power Distribution Block is designed for effective electrical distribution. It operates at 600 VAC/VDC and supports an amperage of 380 A. This 1-pole distribution block can manage wire sizes from six AWG to 500 kcmil for line connections and supports multiple gauge loading and wiring configurations.

• Designed to meet UL 508A for feeder circuit applications.
• Modular design allows for easy expansion by dovetailing multiple units.
• Features a sliding DIN rail latch for efficient installation.

Product Highlights

This product provides robust short circuit current ratings, assisting in compliance with national electrical and safety codes.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Series: PDBFS
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 380 A
• Number of Poles: 1
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 6
• Short Circuit Current Rating: 200/100 kA
• Dimensions: 4.66 in L x 1.55 in W x 2.95 in H
• Material: Aluminum
• Finish: Tin Plated
• Fuse Type: Class J/RK1/RK5/T
• Wire Size: 6 AWG to 500 kcmil Line, 2 to 6 AWG, 6 to 2 AWG, 14 to 8 AWG Load, 14 to 2 AWG
