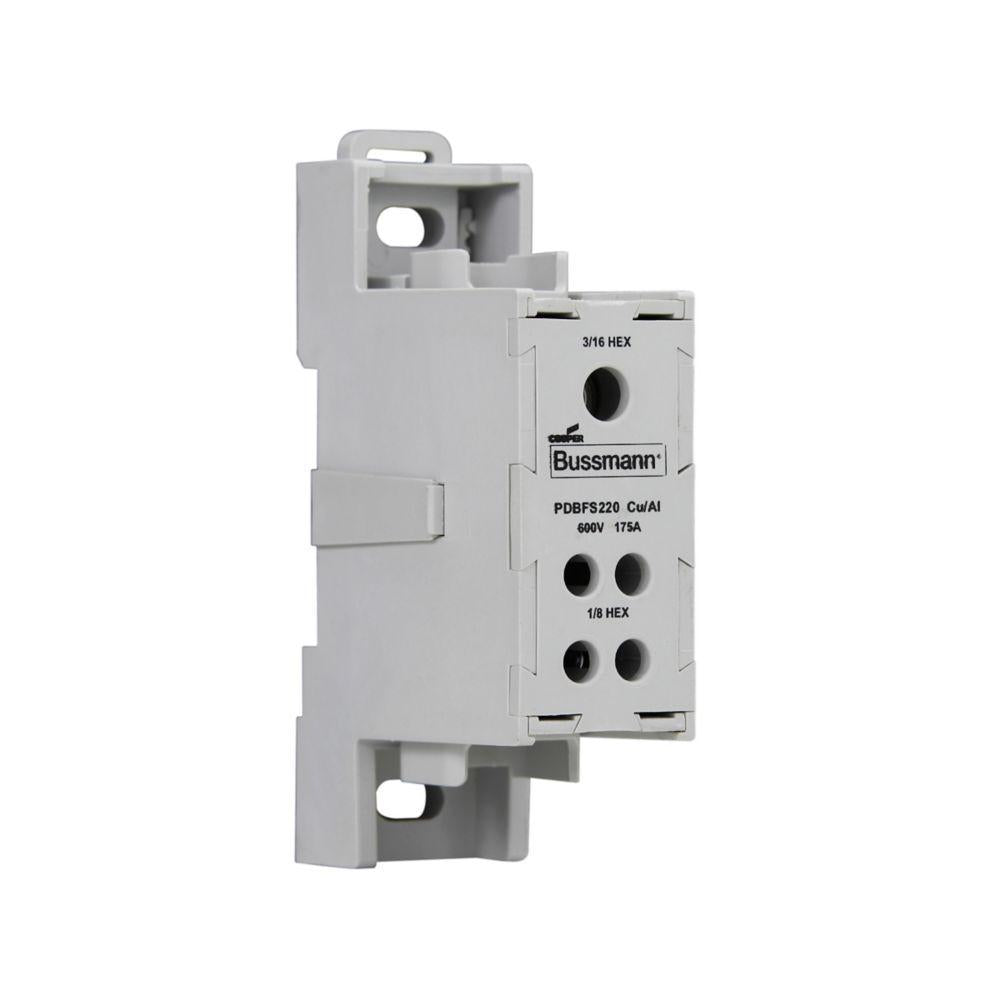

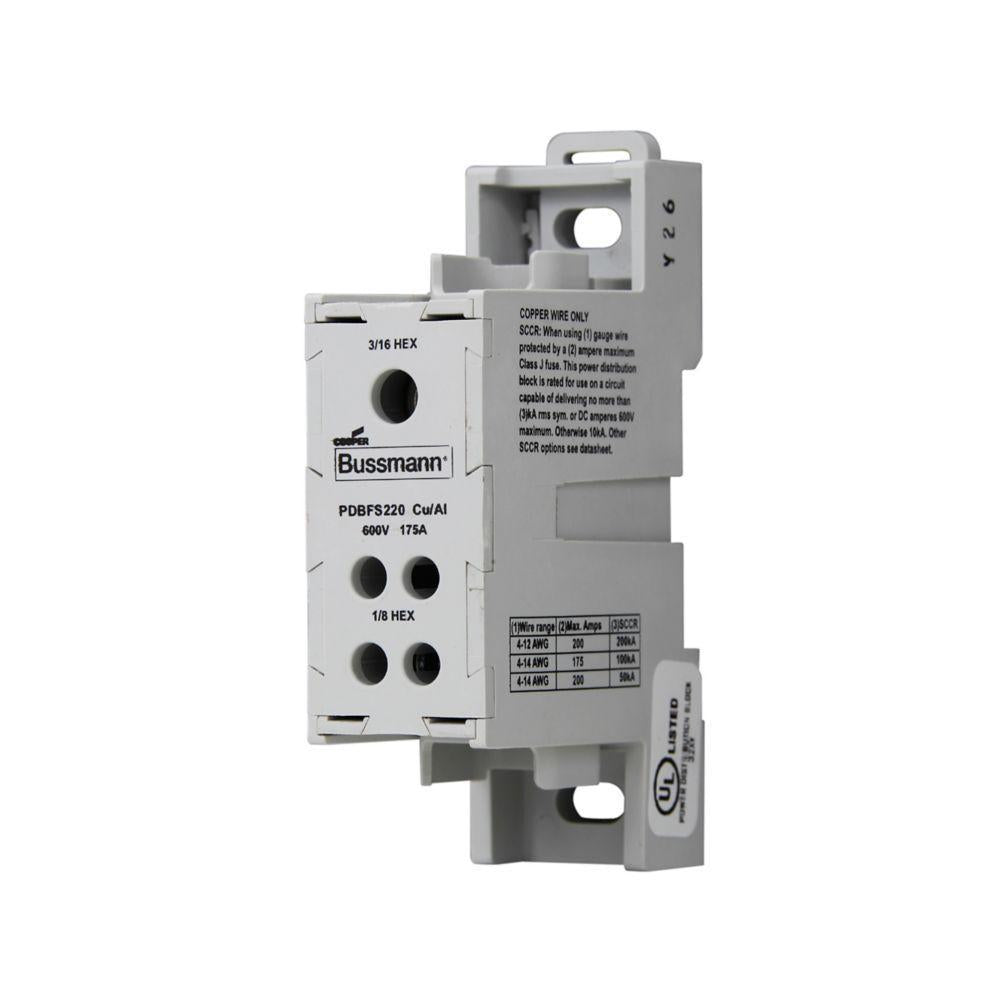

Bussmann PDBFS220 Power Distribution Block 600 VAC/VDC 175 A

Product Description

The Bussmann PDBFS220 is a power distribution block designed for reliable electrical connections in various applications. It operates at a voltage rating of six hundred VAC/VDC and supports a maximum current of one hundred seventy-five amps. This product features one pole, making it suitable for single pole installations. The PDBFS220 can accommodate conductor sizes from eight to two-ought AWG on the line side and twelve to four AWG on the load side.

• IP20 rated for finger-safe protection
• Capable of handling short circuit currents up to two hundred kiloamps
• Modular design allows for easy gang mounting

Product Highlights

This power distribution block provides a compact footprint with a modular capability that enhances installation efficiency. It meets UL and NEC standards for safety and performance.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 175 A
• Short Circuit Current Rating: 200/100 kA
• Material: Aluminum, Tin Plated
• Fuse Type: Class J/RK1/RK5/T
• Number of Poles: 1
• Wire Size Range: 8 to 2/0 AWG for Line, 12 to 4 AWG for Load
• Dimensions: 3.372 inches L x 1.03 inches W x 2.146 inches H
