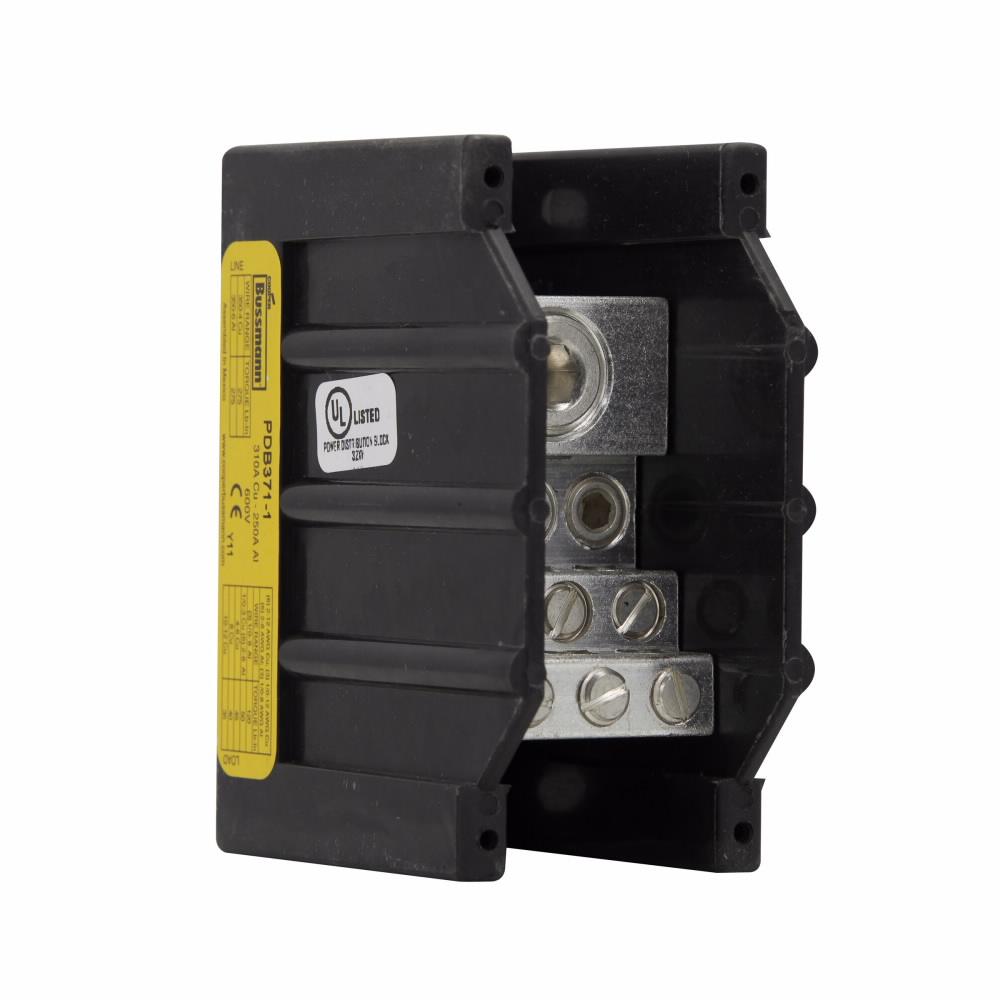

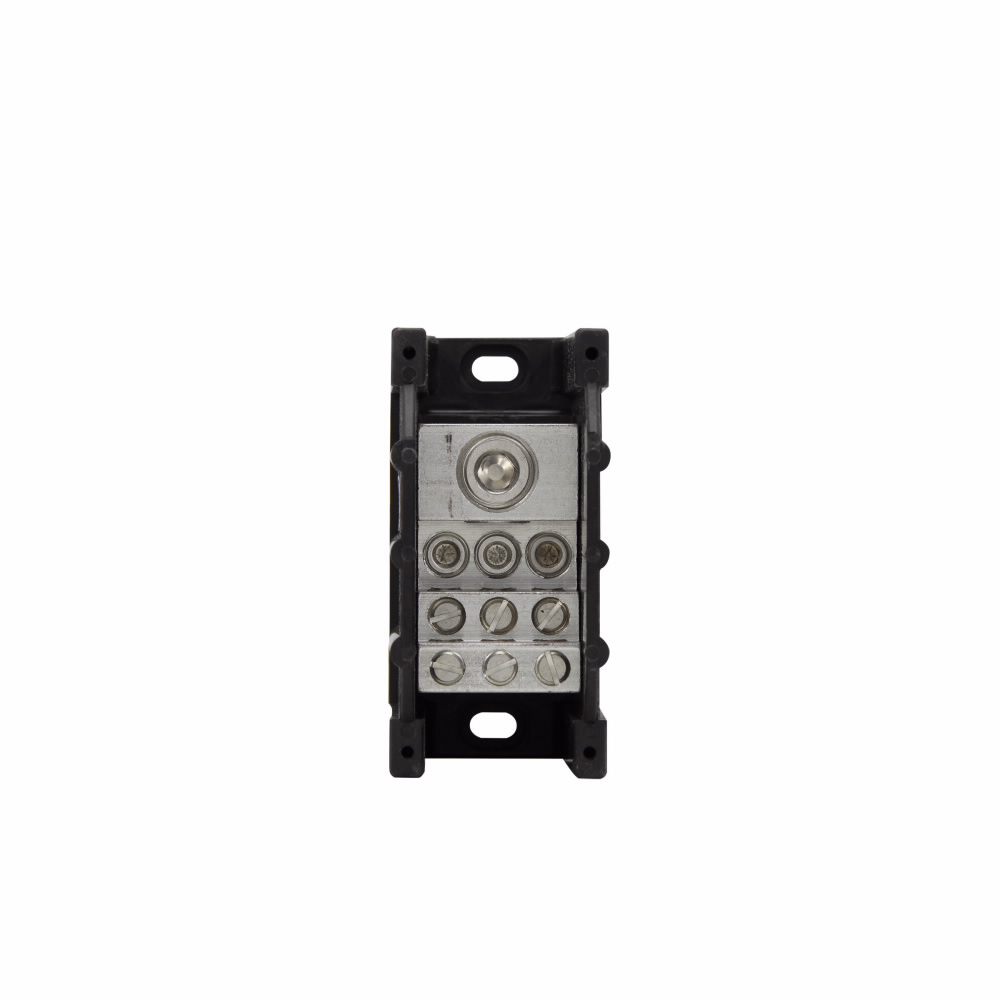

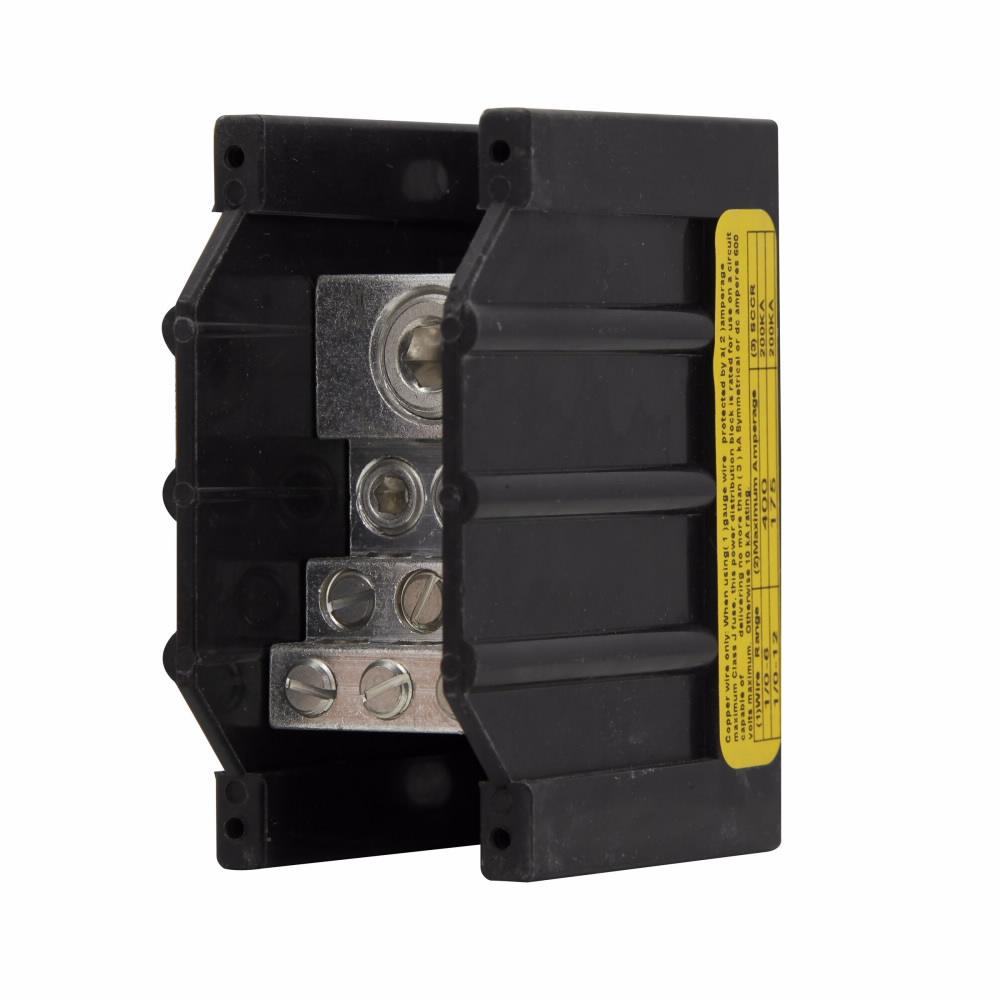

Bussmann PDB371-1 Power Distribution Block 310 Amp 600 VAC/VDC

Product Description

The Bussmann PDB371-1 is a power distribution block designed for reliable performance in various electrical applications. This product features a voltage rating of six hundred volts for both AC and DC systems, allowing it to handle up to three hundred ten amps. The block is structured for single-pole configuration with robust panel mounting capabilities.

• Rated for 600 VAC/VDC and 310 A
• Constructed from aluminum with tin-plated finish
• Meets CE, CSA, IEC, and UL 1953 standards

Product Highlights

This power distribution block is ideal for use in control panels, providing compliance with safety regulations and enhancing electrical safety.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Barrier High SCCR
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 310 A
• Dimensions: 3.38 in L x 1.96 in W x 3.32 in H
• Material: Aluminum/Phenolic
• Number of Poles: 1
• Wire Size: 4 AWG to 350 kcmil Cu Line, (6) 12 to 2 AWG, 12 to 1/0 AWG Cu Load, 6 to 1/0 AWG, 12 to 4 AWG
• Short Circuit Current Rating: 200/100 kA
• Finish: Tin Plated
